0020 RROD after RGH2 Falcon DualNand

[TimmyTurner]

"Header is wrong" in Jrunner after Demon Install

EDIT: I am an idiot I realized the guy in the video was reading the XBOX360 nadn and not the demons onboard nand. So I RGH the xbox360 or the demon now ?

Ok so today was the day I brought out the old demon and decided to install it to my retail along with a cool runner rev c. The dashboard is on latest 16747 and I went ahead and took it apart and watched a tut on how to do it. I first got my nand x and read the nand before anything and it was fine. I checked my demon chip to see if it worked and it did so I switched the toggle switch back to xbox360 and soldered it and the wires in place. I flipped it over and installed the cool runner in the rgh2 format. After all of that I put it back together an plugged the power in and connected the micro usb to the front port to my computer and read it on J-runner. I get this error :

===================================================
Saturday, May 31, 2014 5:14:18 PM


J-Runner v0.3 Beta (4) Started






Checking Files
RGH2 Selected
Retail Selected
RGH2 Selected
Finished Checking Files
Current: DemoN
Switching to XBOX
Retail Selected
Reading Nand to C:\Users\Turner\Downloads\output\nanddump1.bin
XBOX360
Cancelled
Current: XBOX
Switching to DemoN
Reading Nand to C:\Users\Turner\Downloads\output\nanddump1.bin
DEMON
Hardware : Demon Phat
Firmware : 1.0
Flash ID : 0x73AD Hynix (16MiB - Small block)
Flash Size : 0x400 blocks of 0x4200 bytes
Reading Nand
Done!
in 0:23 min:sec


Initializing nanddump1.bin..
Header is wrong..


Please help Thanks



[gavin_darkglide]

Re: "Header is wrong" in Jrunner after Demon Install

dump the xbox nand, write it to the demon nand(Make sure stock boots from demon with coolrunner set to prg), create ecc, write ecc to the demon. Get CPU key, create xebuild image, write xebuild image to the demon. it is as simple as that.



[TimmyTurner]

Re: "Header is wrong" in Jrunner after Demon Install

dump the xbox nand, write it to the demon nand(Make sure stock boots from demon with coolrunner set to prg), create ecc, write ecc to the demon. Get CPU key, create xebuild image, write xebuild image to the demon. it is as simple as that.

The xbox doesn't boot or turn on when on the demon side after I read from the retail portion and wrote that to the demon. :/

Update: I realize I flashed the demon nand to the retail band and it didn't boot and thank god I had a backup read of retail ;p now its booting ill continue doing what you said



[TimmyTurner]

Re: "Header is wrong" in Jrunner after Demon Install

dump the xbox nand, write it to the demon nand(Make sure stock boots from demon with coolrunner set to prg), create ecc, write ecc to the demon. Get CPU key, create xebuild image, write xebuild image to the demon. it is as simple as that.

My CB is 5774 and I'm using a cool runner rev c instead of a r-jtag chip . is the boot supposed to take a long time, I still haven't gotten a boot



[TimmyTurner]

RGH2 & DEMON First Time.. Please Help

Ok so I had some trouble earlier but I fixed it thanks to y'all. I can't get my console to boot to get the cpu key. Is it because it was on the latest dash before I installed everything? I thought someone told me cool runner rev c still worked for the latest dashboard. I can post pictures on my install but for now the console has been trying to glitch on a Falcon RGH2 cool runner program on the demon side flashed ecc. its been 20 mins and no boot still ( I turn on with power button then tried the dvd tray) Help!!!

I have different wires because I couldn't find the right ones but its all a mixture of phat / slim wires I just matched the length of the ones that were supposed to go where . I followed the RGH2 PHAT tut on here http://team-xecuter.com/forums/showthread.php?t=86539

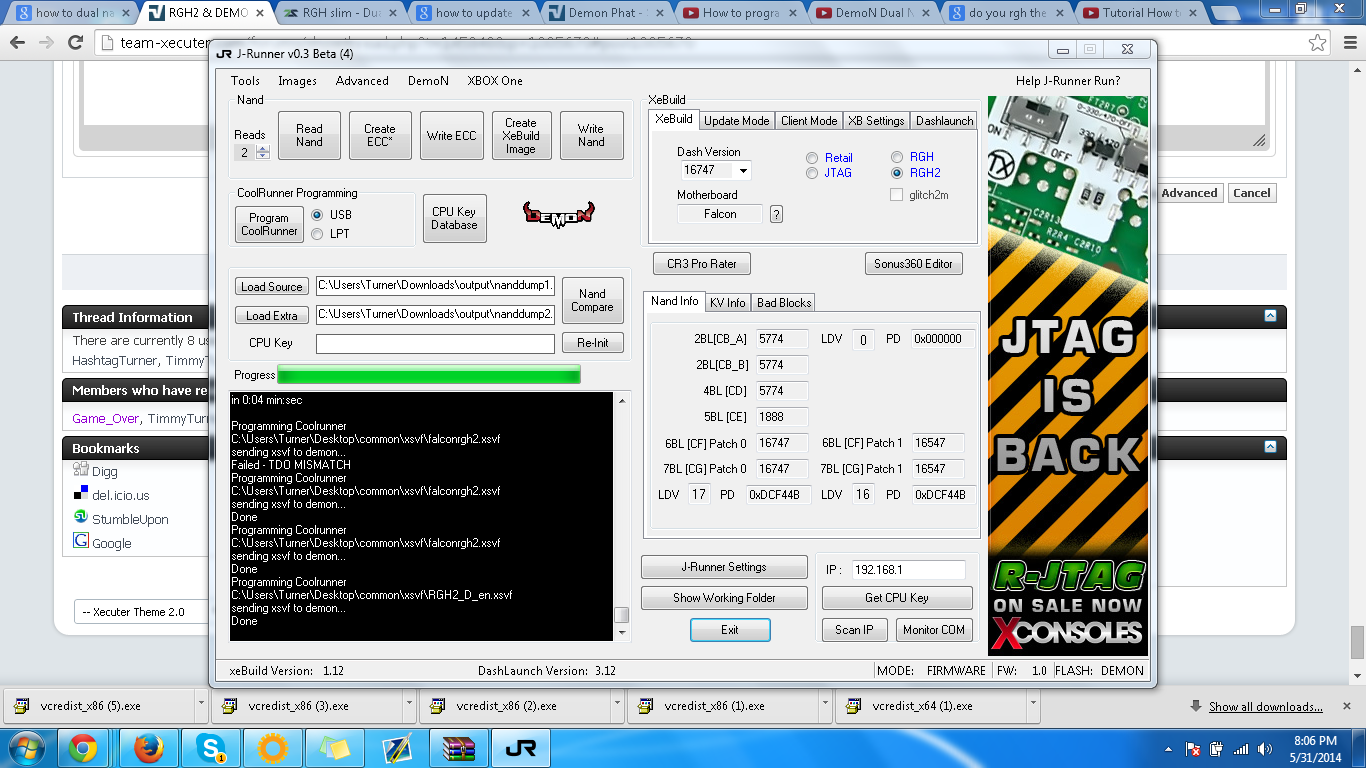

http://gyazo.com/6bd3e34759563f5251ee0567a0283126

//////

new question(diff console) can anyone make me a retail n and for a falcon console , I have one that doesn't boot and I found my old modded n and with the cpu key. Pm me if you can



[gavin_darkglide]

Re: "Header is wrong" in Jrunner after Demon Install

yes, rgh2 is extremly unstable with phat falcons, try using the slim cpu_rst wire and route it around the heatsyncs,also try all of the timing files, the cpu_rst cleaner, and all the timing files with the switch set to slim. Rjtag is definatly the better option, but as it is hard to find now, keep messing with your configureation and eventually it should boot.



[TimmyTurner]

Re: "Header is wrong" in Jrunner after Demon Install

yes, rgh2 is extremly unstable with phat falcons, try using the slim cpu_rst wire and route it around the heatsyncs,also try all of the timing files, the cpu_rst cleaner, and all the timing files with the switch set to slim. Rjtag is definatly the better option, but as it is hard to find now, keep messing with your configureation and eventually it should boot.

check my new topic please I'm posting photos!



[Utmad]

Re: RGH2 & DEMON First Time.. Please Help

Shame you are using a fake tx coolrunner thats most likely the problem



[Utmad]

Re: "Header is wrong" in Jrunner after Demon Install

Maybe the fake tx coolrunner ain't helping



[TimmyTurner]

Re: RGH2 & DEMON First Time.. Please Help

unsoldered the real genuine one out of my other rgh and still same thing is happening when I put it in this one. so thats not the problem
its not a shame because no one sells genuine anymore they are like extinct now aswell as rjtag ;/



[ablegepu]

Re: RGH2 & DEMON First Time.. Please Help

unsoldered the real genuine one out of my other rgh and still same thing is happening when I put it in this one. so thats not the problem
its not a shame because no one sells genuine anymore they are like extinct now aswell as rjtag ;/

you really expect people to believe that. it's like asking my daughter if she got into the cookie jar and she says no but has chocolate all over her face, I mean COME ON.... The problem is (1). you are using a clone, theres a reason why we see so many on here begging for help. (2). look at your cpu_rst wire, that thing has to be shorting on something.

post a picture of your "REAL" coolrunner and i will appologize

oh and yes it is a shame someone would put that garbage on the same console as a DeMoN



[morinzo]

Re: RGH2 & DEMON First Time.. Please Help

agreed, bad cpu rst wire & to much naked wire showing on 90% of the wires.

I would just use the blue wire and the cpu rst point on the bottom of the motherboard because I know you have something shorting on one end of that mess of a shielded cable.

I know you have a pair of fingernail clippers to cut the naked wire on every one down to around 2mm.



[TimmyTurner]

Re: RGH2 & DEMON First Time.. Please Help

agreed, bad cpu rst wire & to much naked wire showing on 90% of the wires.

I would just use the blue wire and the cpu rst point on the bottom of the motherboard because I know you have something shorting on one end of that mess of a shielded cable.

I know you have a pair of fingernail clippers to cut the naked wire on every one down to around 2mm.

I dont think its the cpu rst wire I know it looks sloppy ( I bit the ends off because I was lazy to find a wire stripper) but I will try the blue wire and get back to you

- - - Updated - - -

agreed, bad cpu rst wire & to much naked wire showing on 90% of the wires.

I would just use the blue wire and the cpu rst point on the bottom of the motherboard because I know you have something shorting on one end of that mess of a shielded cable.

I know you have a pair of fingernail clippers to cut the naked wire on every one down to around 2mm.

and I notived a couple of tuts and pics having a wire going from the coolrunner to the chip on top of it to a port labeled EN , do I need to add that



[morinzo]

Re: RGH2 & DEMON First Time.. Please Help

I dont think its the cpu rst wire I know it looks sloppy ( I bit the ends off because I was lazy to find a wire stripper) but I will try the blue wire and get back to you

- - - Updated - - -



and I notived a couple of tuts and pics having a wire going from the coolrunner to the chip on top of it to a port labeled EN , do I need to add that

yes..

If you don't have one end of the cpu rst shielded cable soldered to gnd whats the point in using it??

look at the pics in this guide.
http://team-xecuter.com/forums/showthread.php?t=88106

also time and patience will get you better boot times instead of slopping it together.

Edit: Also when you flashed your clone coolrunner did you check the box that said demon installed??



[TimmyTurner]

Re: RGH2 & DEMON First Time.. Please Help

yes..

If you don't have one end of the cpu rst shielded cable soldered to gnd whats the point in using it??

look at the pics in this guide.
http://team-xecuter.com/forums/showthread.php?t=88106

also time and patience will get you better boot times instead of slopping it together.

Edit: Also when you flashed your clone coolrunner did you check the box that said demon installed??

alright thanks I will try that , I am using one of the blue wires in the place of the double shielded because ive had success with boots on past consoles with that. Am I correct after I get the cpu key , I can change things to make it boot faster or no it will take 20m each time



[TimmyTurner]

Re: RGH2 & DEMON First Time.. Please Help

yes..

If you don't have one end of the cpu rst shielded cable soldered to gnd whats the point in using it??

look at the pics in this guide.
http://team-xecuter.com/forums/showthread.php?t=88106

also time and patience will get you better boot times instead of slopping it together.

Edit: Also when you flashed your clone coolrunner did you check the box that said demon installed??

yea I wondered about that I tried both with and without it checked . if I am trying to get cpu key from the demon nand will I have to put demon installed checked?



[morinzo]

Re: RGH2 & DEMON First Time.. Please Help

yea I wondered about that I tried both with and without it checked . if I am trying to get cpu key from the demon nand will I have to put demon installed checked?

yes

Are you using the bottom cpu rst point on the motherboard? I haven't had much luck with the tip point you are using.



[HashtagTurner]

Re: RGH2 & DEMON First Time.. Please Help

yes

Are you using the bottom cpu rst point on the motherboard? I haven't had much luck with the tip point you are using.

sorry diff account here lol I forgot the info to the otherone since its always logged in on desktop and im on laptop now //////


Do you mean with the blue wire or the double shielded on the bottom? I thinnk putting the ds on the bottom point would cause some space issues

. Right now I am going to fully redo the coolrunner since I know the demon is working properly



[morinzo]

Re: RGH2 & DEMON First Time.. Please Help

blue wire to the bottom.



[HashtagTurner]

Re: RGH2 & DEMON First Time.. Please Help

blue wire to the bottom.

alright I have blue on bottom I will go test , what usually works best for flashing the coolrunner
