R-JTAG 0022 30 seconds after boot (Beginner)

[barkerb23]

Hello everyone, I have decided to sign up because I have nowhere else to turn to.

So, I am currently at a friends house. This was happening last time I was here as well, but ONLY with a HDMI Cable. It did not happen at my house.

I was just online, my R-Jtag is a Jasper, 256mb nand. It usually takes 20 seconds to boot. Well, I was online with it about an hour ago. Moved something and accidentally unplugged it. Now I try to boot it It RROD's 3 rings (0022) after 30 seconds. It will NOT boot XELL.

It has done this before, as I said. But eventually I got it to boot. Flashed my nand to latest dash 2 weeks ago, all was well. Bad blocks were remapped and everything worked as planned.

Console will not boot with HDD in or out.
RROD 0022 After 30 seconds
Fakeanim is installed (required to delete bootanim.xex from flash) Fakeanim works perfect.

Trying to fix this. I don't know anything about reballing, my console is not taken apart and I wouldn't know what to do if i did take it apart.
I'm more of a software person rather than hardware.

Please, someone help :/

Console Type: Jasper
NAND size: 256
Dashboard version: e.g 2.0.16756.0
CB version: Not sure what this is

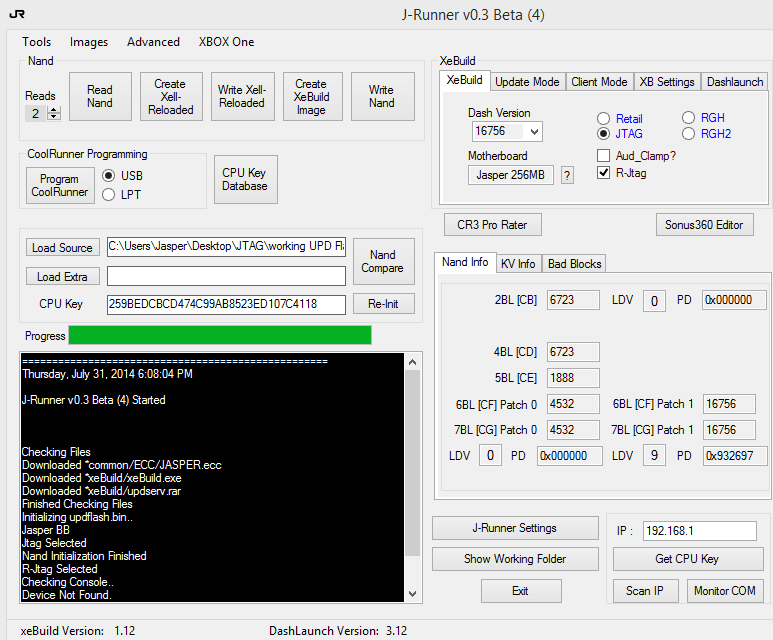

Screenshot of NAND details from J-Runner:

Image of R-JTAG board: Pictures possibly soon
Images of close-up soldering to motherboard: Pictures possibly soon
Was the console working before you started: Y



[ultimate360]

Sounds like either a short in the install, loose connection, or GPU is starting to crap out.. Turn it on and then just leave it on, for about 30 minutes or so blinking the red lights. Then shut it off, and try booting it right away again and see if that changes anything. I'm afraid you will need to open it up show us some photos as well. Do you have any logs? Click the stickied thread in the RGH support section for the help template, fill that out, and post it here. That would be helpful too



[barkerb23]

Sounds like either a short in the install, loose connection, or GPU is starting to crap out.. Turn it on and then just leave it on, for about 30 minutes or so blinking the red lights. Then shut it off, and try booting it right away again and see if that changes anything. I'm afraid you will need to open it up show us some photos as well. Do you have any logs? Click the stickied thread in the RGH support section for the help template, fill that out, and post it here. That would be helpful too

No problem will leave it on for 30minutes. But it randomly boots up, like earlier, it would do this for 5 minutes and booted right up. Then i'd shut it off with the controller and turn it back on with the controller and it worked fine right there. Maybe it's the position the console is? A short in a wire or something?

I believe we have the tools to take it apart. In fact, I have them right here.



[barkerb23]

Updated the OP with more info.
It appears there were a few bad block, but nothing that made the 360 not function correctly. Nand wrote 100% and booted fine.



[barkerb23]

Sounds like either a short in the install, loose connection, or GPU is starting to crap out.. Turn it on and then just leave it on, for about 30 minutes or so blinking the red lights. Then shut it off, and try booting it right away again and see if that changes anything. I'm afraid you will need to open it up show us some photos as well. Do you have any logs? Click the stickied thread in the RGH support section for the help template, fill that out, and post it here. That would be helpful too

Shut it off and back on and still rrod after 25 seconds



[barkerb23]

It booted up after i took the faceplate off. Not sure why. Any Idea? Glad it's not something permanent. Possibly a short?



[ultimate360]

Yeah, I think it's for some install pics in this case



[Antalpromille]

Does it boot stock or does it do the same in your stock nand? You never mentioned what kind of dual-nand unit you got installed but I guess you got something since you where online with it.
