bing bing after demon removal

Status
Not open for further replies.
nofeloniesyet

nofeloniesyet

VIP Member
Jan 16, 2011
4,830
128
Nowhere
whataretheyfeedingyou said:
I have damaged a couple of points taking a demon off.
FT1T1 and FT1T7 I think or one or the other.
any got any ideas how to fix it?

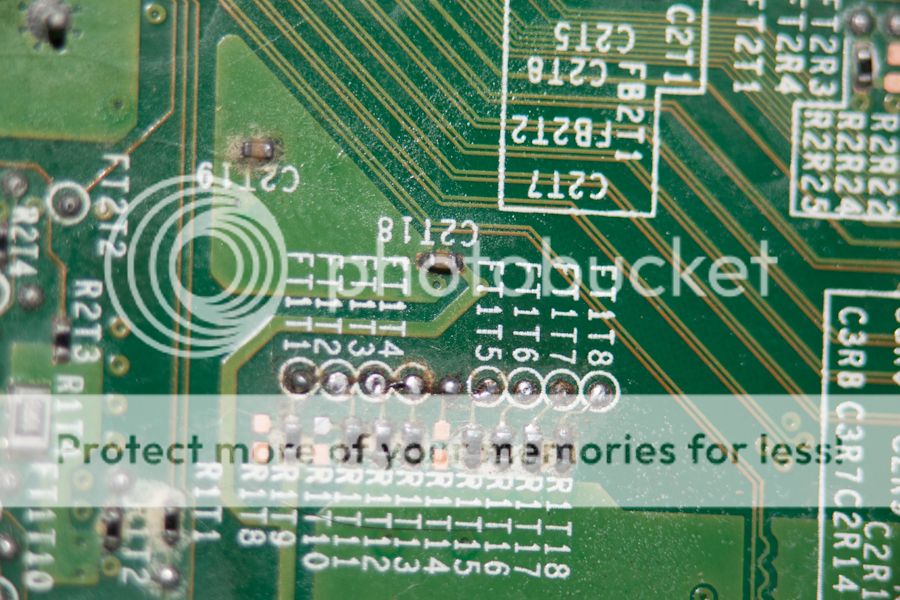

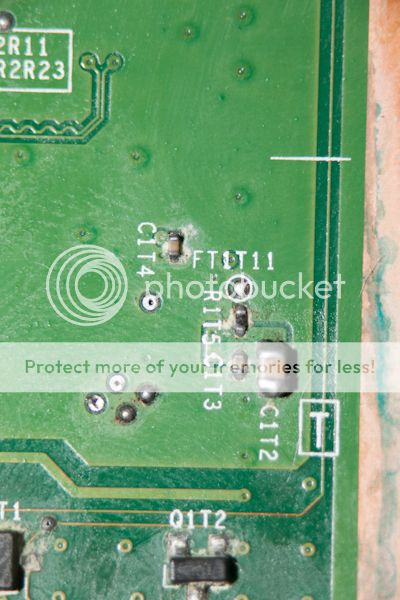

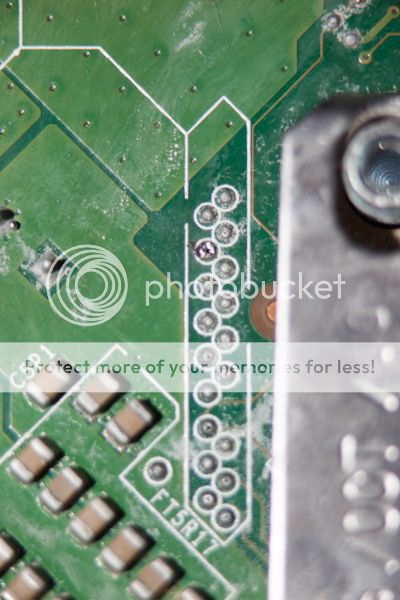

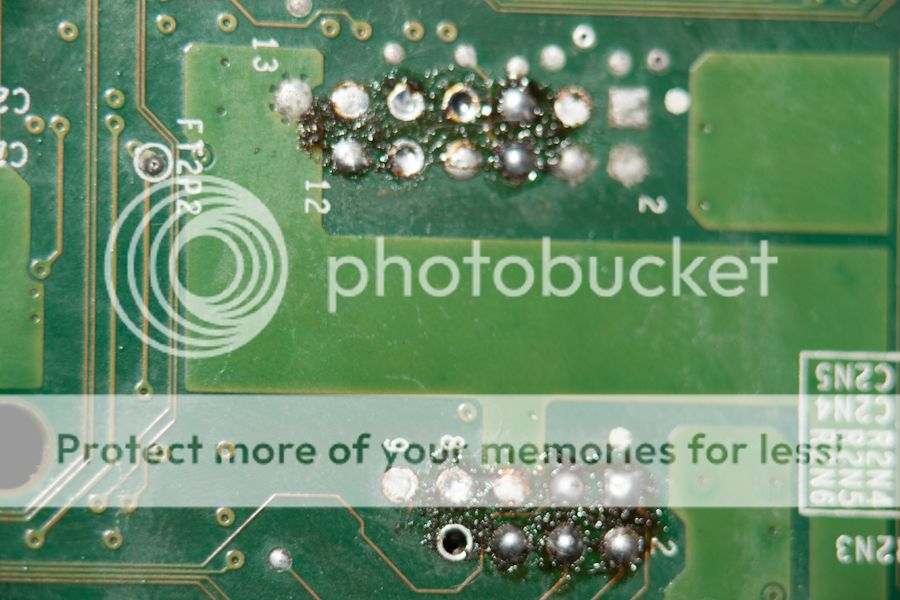

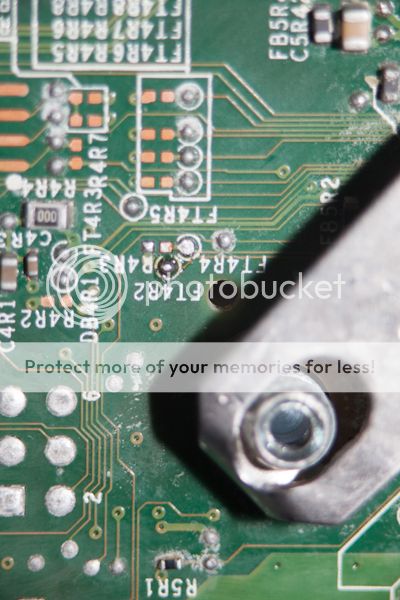

here is pics of all the points

Link To Image

Link To Image

Link To Image

Link To Image

Link To Image
Click to expand...

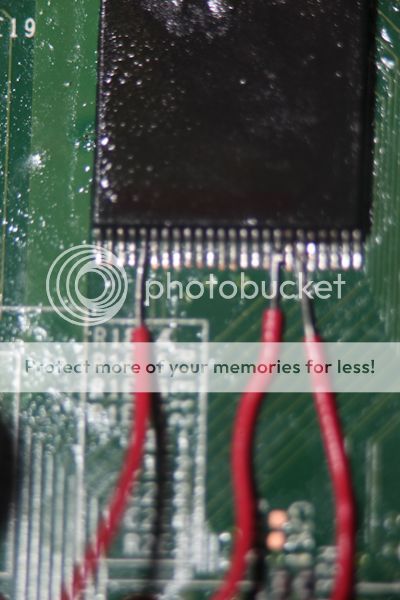

turn board over and look at nand chip,look on right side of nand turn it with letters reading right side/way up.ft1t5 goes to 8th pin on right side of nand down from top right

ft1t7 goes to 6th nand pin down from the top right

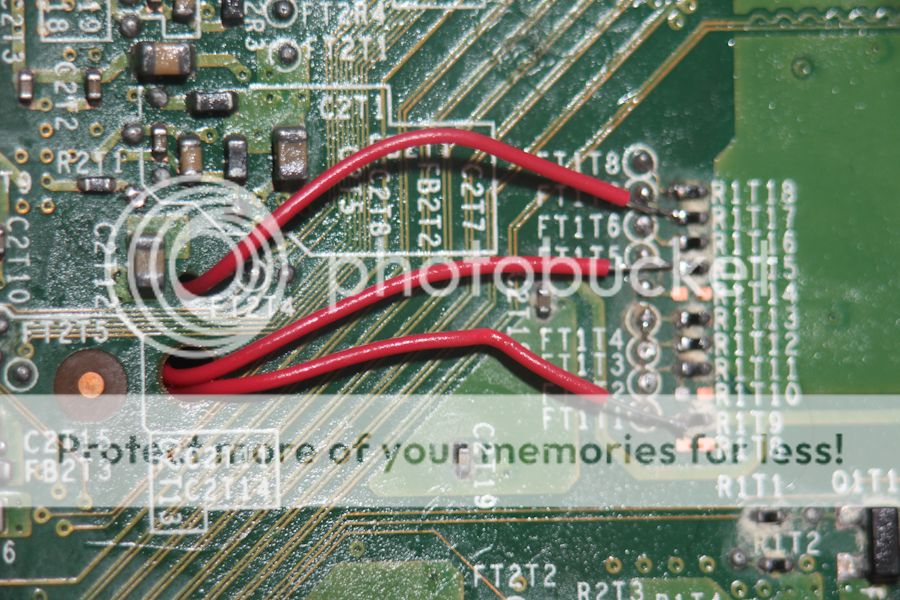

jus run some strands of kynar from the corosponding resistors by the points on backside,to the nand pins.

sorry,ft1t1 also goes to the 5th nand pin up from bottom right side of nand

Last edited:
whataretheyfeedingyou

whataretheyfeedingyou

VIP Member
Aug 25, 2010
2,149
68
Cornwall England
nofeloniesyet said:
turn board over and look at nand chip,look on right side of nand turn it with letters reading right side/way up.ft1t5 goes to 8th pin on right side of nand down from top right

ft1t7 goes to 6th nand pin down from the top right

jus run some strands of kynar from the corosponding resistors by the points on backside,to the nand pins.

sorry,ft1t1 also goes to the 5th nand pin up from bottom right side of nand
Click to expand...

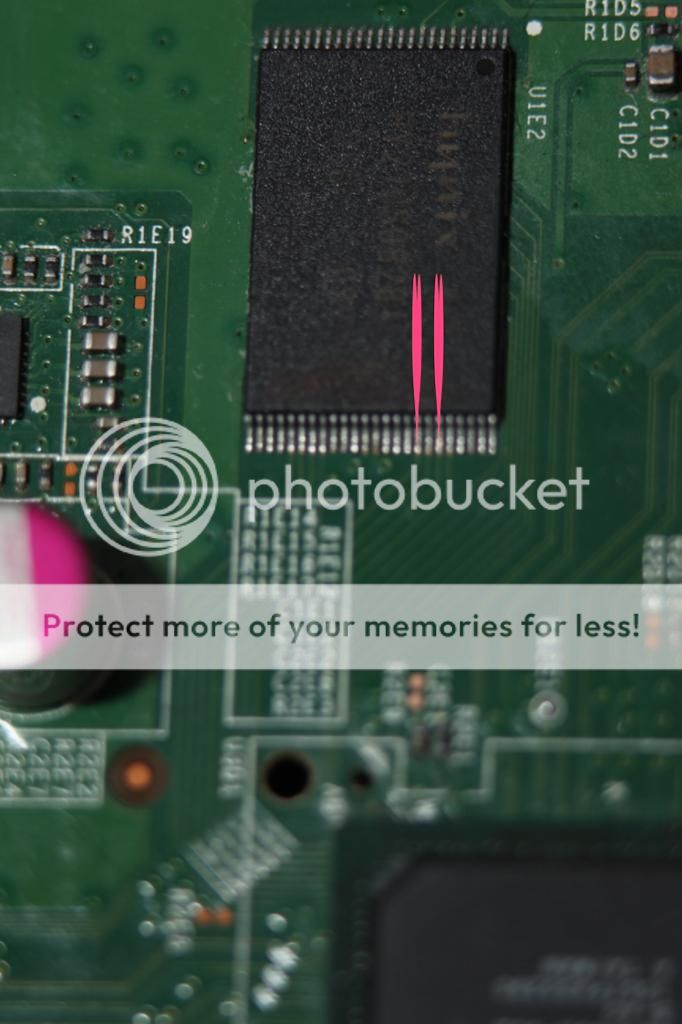

do you mean these pins?

nofeloniesyet

nofeloniesyet

VIP Member
Jan 16, 2011
4,830
128
Nowhere
whataretheyfeedingyou said:
so the 5th one in on the left on that same row?

---------- Post added at 19:12 ---------- Previous post was at 19:11 ----------



lol expect a message when I cock this up
Click to expand...
see my last post,i edited pic for you

Martin C

Martin C

VIP Member
Jan 10, 2004
35,981
0
Scotland, UK
www.team-xecuter.com
Between the demoN slim install images and plentiful images of the 360 NAND layout, you should have everything you need.

---------- Post added at 19:14 ---------- Previous post was at 19:14 ----------
whataretheyfeedingyou said:
lol expect a message when I cock this up
Click to expand...
Expect the price to increase when you do.

  • Like
Reactions: Taijigamer2, Oggy, Krafter and 1 other person
nofeloniesyet

nofeloniesyet

VIP Member
Jan 16, 2011
4,830
128
Nowhere
Martin C said:
Between the demoN slim install images and plentiful images of the 360 NAND layout, you should have everything you need.

---------- Post added at 19:14 ---------- Previous post was at 19:14 ----------



Expect the price to increase when you do.
Click to expand...
lol,i meant to tell him this in my last post also lol

nofeloniesyet

nofeloniesyet

VIP Member
Jan 16, 2011
4,830
128
Nowhere
whataretheyfeedingyou said:
after I re route these points and its still the same, what else could it be? or is it pretty much certain it is
Click to expand...
if redoing those points i showed you dont do the trick you will probably be better off sending it to martin c

nofeloniesyet

nofeloniesyet

VIP Member
Jan 16, 2011
4,830
128
Nowhere
take a mm and see if you get cont on any of your nand pins on ft1t3

BL4K3Y

BL4K3Y

VIP Member
Jul 7, 2010
13,721
118
Colne, Lancashire (UK)
It would have probably been easier to do a continuity test first.

Check that each IO resistor (the D0 points) has continuity with it's correct solder pad and use the NAND pins for those that don't have continuity.

Have you also checked that STBY_CLK (R3B15) is fine?
