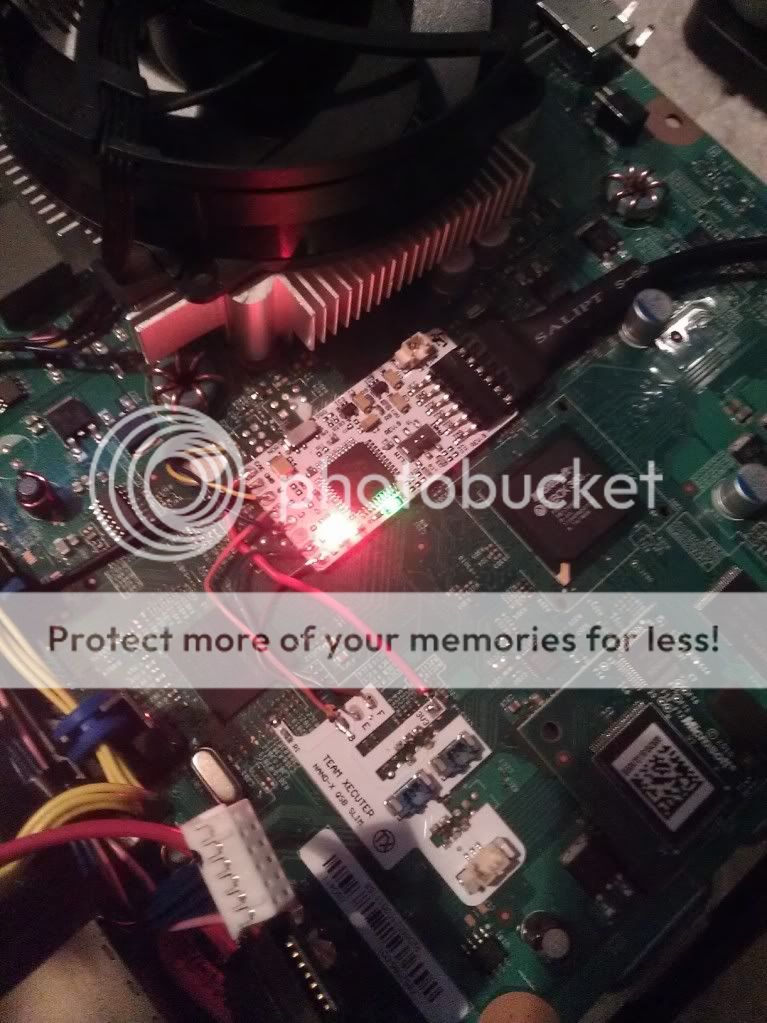

just got my coolrunner today and wired it up and tried to read the nand. This is the setup:




It won't detect in nand pro - it is plugged into my pc via LPT

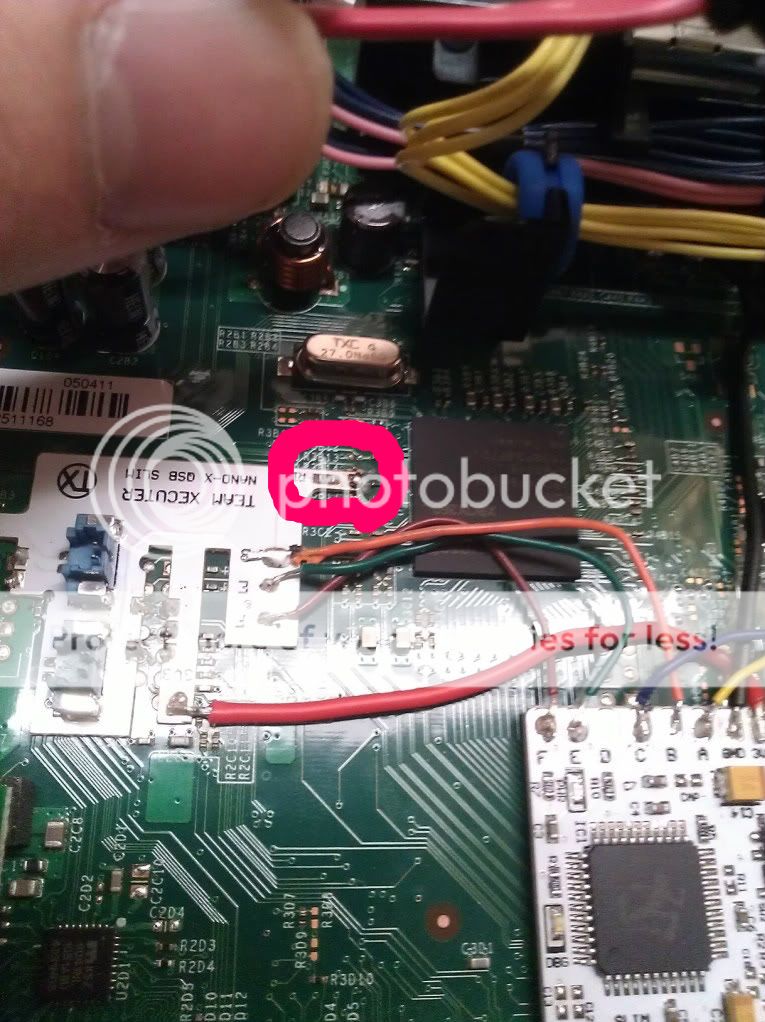

I am having trouble soldering the pad near the R1 Resistor, if it is not soldered, could this be the problem?:


x360ccm

x360ccm

BANNED
Jan 18, 2011
3,616
0
south coast UK
i trim some of the wires a bit by 1 or 2 mm then solder back on.that 3v3 one i dont like that one,it looks like it hangin over onto a resistor.

can we have pics of the other side of the mobo.

the blue and green wires that would be.

yellow should be on c

blue should be on d

Last edited:
Martin C

Martin C

VIP Member
Jan 10, 2004
35,981
0
Scotland, UK
www.team-xecuter.com
As XBOX4LIFE says,

WHY ARE YOU USING THE PHAT WIRING ??

Look at your points.

Point A is CPU_PLL_BYPASS for phat consoles.
CPU_RST should be going to point D.

Seriously, it's right there in the guide.

  • Like
Reactions: x360ccm
D

DiGiTaL sPiTT

Senior Member
Jun 2, 2011
137
0
Maryland
XBOX4LIFE said:
Which tutorial did you follow ???
Check your wiring dude and either your iron is too hot or your heating for way too long !
Link To Image
Click to expand...
Why is your A on your coolrunner got nothing soldered to it? My A does, but my D doesn't have anything

---------- Post added at 17:05 ---------- Previous post was at 17:04 ----------
Martin C said:
As XBOX4LIFE says,

WHY ARE YOU USING THE PHAT WIRING ??

Look at your points.

Point A is CPU_PLL_BYPASS for phat consoles.
CPU_RST should be going to point D.

Seriously, it's right there in the guide.
Click to expand...
I opened the pack that said Slim wiring on it..

Martin C

Martin C

VIP Member
Jan 10, 2004
35,981
0
Scotland, UK
www.team-xecuter.com
DiGiTaL sPiTT said:
Why is your A on your coolrunner got nothing soldered to it? My A does, but my D doesn't have anything

---------- Post added at 17:05 ---------- Previous post was at 17:04 ----------



I opened the pack that said Slim wiring on it..
Click to expand...
Why? Because you've followed the phat cabling for some unknown reason (and badly).

It's right there and colour coded too - tell me how you can mess it up?

Acton1

Acton1

VIP Member
Dec 28, 2006
359
33
warrington UK
www.facebook.com
I just love how peeps just jump in with out read the hole tut on how to

1.read nand
2.make ecc file and write
3.install coolrunner
4.boot console to get to xell
5.write down cpu key
6.make glitch nand and write to nand

done

what's so hard

Martin C

Martin C

VIP Member
Jan 10, 2004
35,981
0
Scotland, UK
www.team-xecuter.com
DiGiTaL sPiTT said:
Why are u so freaking mad?????

I accidentally followed another diagram chill the heck out
Click to expand...
Because if you can't follow a simple colour-coded diagram, you are in no position to even think about the next stages.

The best part about it is you've not even got a NAND-x.

Last edited:
D

DiGiTaL sPiTT

Senior Member
Jun 2, 2011
137
0
Maryland
Martin C said:
Because if you can't follow a simple colour-coded diagram, you are in no position to even think about the next stages.
Click to expand...
Are you serious right now? What did I just say? I followed a different diagram with different connections

---------- Post added at 17:26 ---------- Previous post was at 17:25 ----------
Acton1 said:
you should have read your nand first then solder the QSB's

There are some pad's that mite be hard to get to now
Click to expand...
I actually did, but I only dumped once, not twice

Martin C

Martin C

VIP Member
Jan 10, 2004
35,981
0
Scotland, UK
www.team-xecuter.com
DiGiTaL sPiTT said:
Are you serious right now? What did I just say? I followed a different diagram with different connections
Click to expand...
How could you possibly mix up an image of a phat motherboard with a slim? Exactly what diagram DID you follow? How did you manage to solder the E and F wires then?
