GENERAL Coolrunner LED Mod

[superspeed]

sorry for the poor pics but there good enuff for help first pic is just where i scratched and tinned ready Link To Image

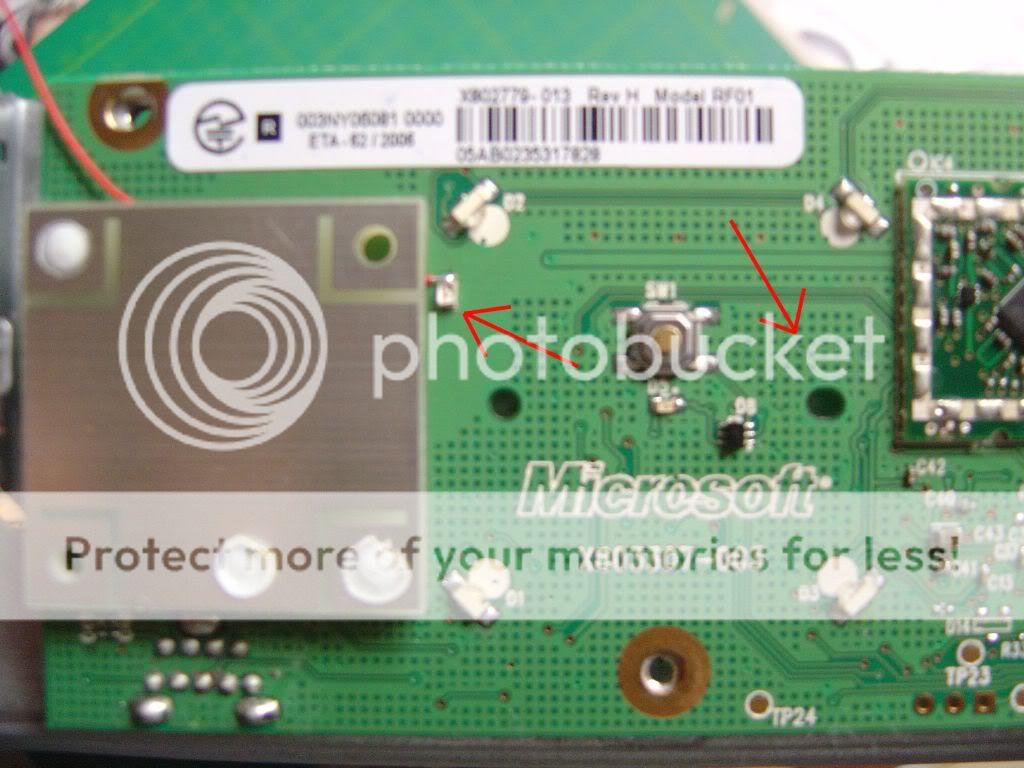

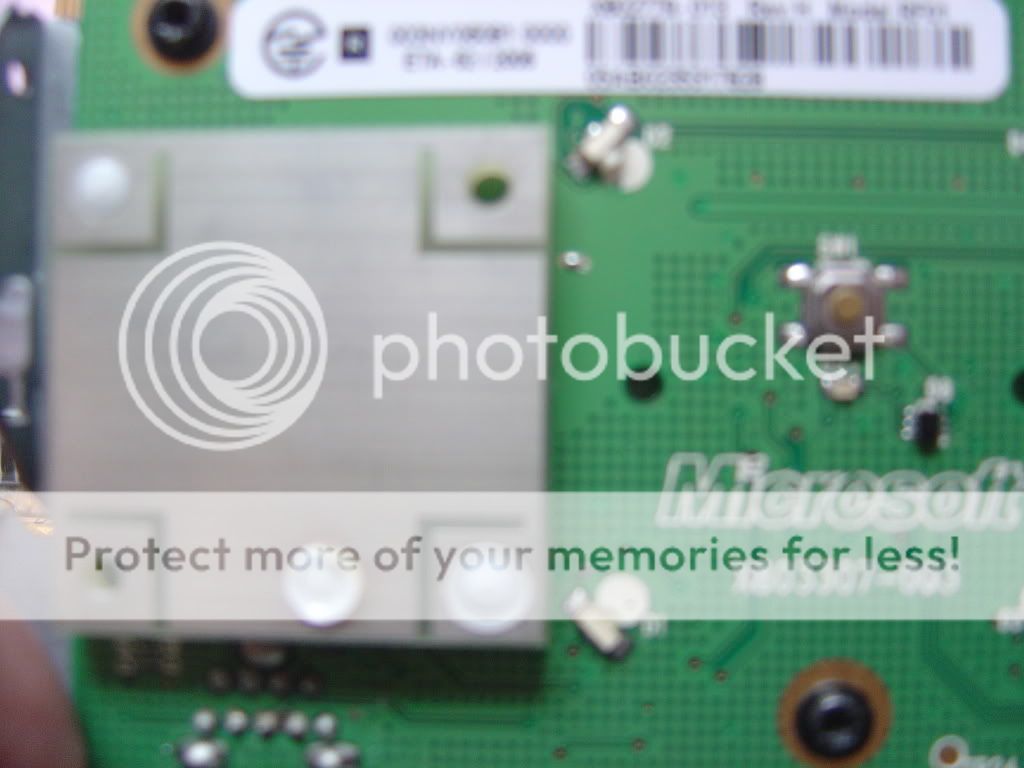

second pic is led installed also if you look at the second arrow and of that grid is common ground so you can not far off put the leds where ever you want
Link To Image

Thank you for posting the picture's I'm sure it will help many. I will add the images to the OP.



[RROD!]

yer sure no probs but do make clear any of the grid area around the rf should be ground and not just the spot i was pointing too



[superspeed]

yer sure no probs but do make clear any of the grid area around the rf should be ground and not just the spot i was pointing too

Ok will change it. Thanks BTW heading to the store in a bit for some stuff to add to slim case



[RROD!]

cool not long now then



[x23are]

Heres the video of it in action.

http://youtu.be/TJiwEciVLcE

so thanks for your pictures and video.

my mobo is falcon and i did this method on it
but I have a problem.
I explain it on this pictuer.
http://130.0.img98.net/out.php/i269836_dsc00686.jpg

i connected 1n4148 diode to RF board from anode side.
my problem is when 2 led on they blink whit CR but they dont off when console boot.

whit this problems i use a jasper RF board (similar vidoe rf board) and connected my diode to RF board from kathode and it booted similar top video.
anyone had this problem???



[RROD!]

can you show a pic of you rf board you are trying to mod please



[x23are]

can you show a pic of you rf board you are trying to mod please

http://130.0.img98.net/out.php/i270022_1-1-.jpg http://130.0.img98.net/out.php/i270023_1-2-.jpg http://130.0.img98.net/out.php/i270024_1-3-.jpg



[digiman]

The only common ground I found near the player 4 ind. was a pin located directly under the led itself. I didn't realize that there were so many different rev. of the RF board. I went through a few I had in a box and counted at least 6 different versions. Anyways the pic below has the common ground I was talking about. You could add the - side of a extra led there and run the 1 wire from the CR to the + side. Will do more testing in a bit.

Link To Image

I soldered to TP24 pad for negative works fine on a added LED



[RROD!]

http://130.0.img98.net/out.php/i270022_1-1-.jpg http://130.0.img98.net/out.php/i270023_1-2-.jpg http://130.0.img98.net/out.php/i270024_1-3-.jpg

yes bud you will need to find a common ground for the led you can scratch a point and solder the negative side of the led to it



[digiman]

i can't flash my coolrunner with the zephyr neg jed.jed file cause i use usb is there a way for someone to modify a xsvf file for the LED mod?



[RROD!]

i did think of asking in the j runner thread if this is some thing they could add to the options



[QcMarque]

all slim rf boards have common negative this means they have allways got ground??

wasn't sure if you were really asking this, but my slim's RF board does not have a common gnd, there's no continuity between gnd on the leds and the case or other gnd points on the rf board


I agree this would be a really nice option to have in jrunner.



[superspeed]

wasn't sure if you were really asking this, but my slim's RF board does not have a common gnd, there's no continuity between gnd on the leds and the case or other gnd points on the rf board


I agree this would be a really nice option to have in jrunner.

All slims should be the same. The problem is with the phat consoles the RF use negative pulses to trigger the led.



[QcMarque]

All slims should be the same. The problem is with the phat consoles the RF use negative pulses to trigger the led.

I can confirm mine is not the same - tried both sides of the led and it wouldn't light. had to use a common gnd in the area around the leds.

I'm certainly not a newcomer to this sort of thing, I've been working with electronics and the like for almost 20yrs. If you look at the picture of my RF board (a couple pages back, or I can post it a 3rd time) and the slim RF board in the OP they are different.



[superspeed]

I can confirm mine does not - tried both sides of the led and it wouldn't light. had to use a common gnd in the area around the leds.

I'm certainly not a newcomer to this sort of thing, I've been working with electronics and the like for almost 20yrs. If you look at the picture of my RF board (a couple pages back, or I can post it a 3rd time) and the slim RF board in the OP they are different.

I'm sorry bud but I would have to disagree with you. The reason I believe the phat consoles are different because they use the dual leds and the slim does not.



[QcMarque]

I can take video for proof... wire the leds up on both sides (one at a time obviously), diode in place, and show they don't light up either way.

if I use a multimeter I get no continuity between the case (or any other ground on the ROL or system) and the ground (negative) lead on the leds.



[Justice1231]

All slims should be the same. The problem is with the phat consoles the RF use negative pulses to trigger the led.

Dont forget that its only on a certain rf type (the newer boards with the chip in the top right hand corner), the older rf boards are fine



[digiman]

I received my new Coolrunner today, and if you look at the picture i am worried that it is a fake



[Vinneh]

I received my new Coolrunner today, and if you look at the picture i am worried that it is a fakeLink To Image

Why do you think its fake? If you bought it from an official reseller then you don't have anything to worry about.



[digiman]

i was worried cause the traces looked weird they are brown, they look like they have been cut. Anyway it took a programming no problem so it should be real
