Corona V3 with CR4 XL and QSB always error Version: 10 Flash Config: 0x00000000

syaugi · Mar 1, 2015

hi there
i have an xbox corona v3 with cr4 XL, and i have installed with QSB's kit
but always error "Version: 10 Flash Config: 0x00000000 Can not Continue"
the power could ON with Green Light

does anyone know this problem ?

Console Type: Corona V3
Programmer Used: JRP v2.0
NAND Size: 250GB
Dashboard version: latest one
CB Version:
Screenshot of NAND details from J-Runner: (attach an image to your post)
J-Runner log :
updflash.bin log (if applicable)

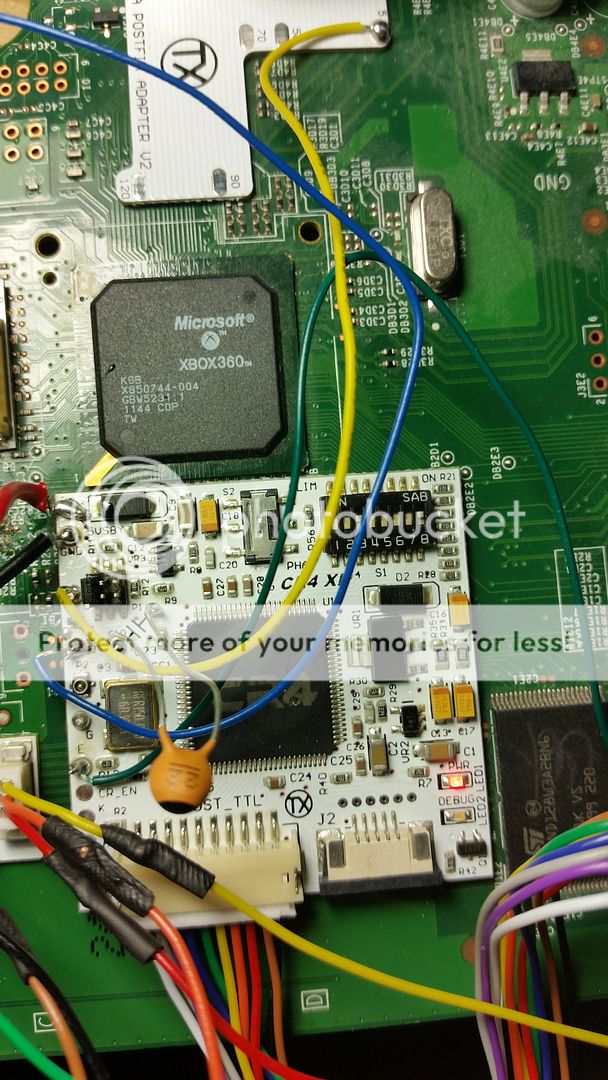

Image of the CR4 XL : check below

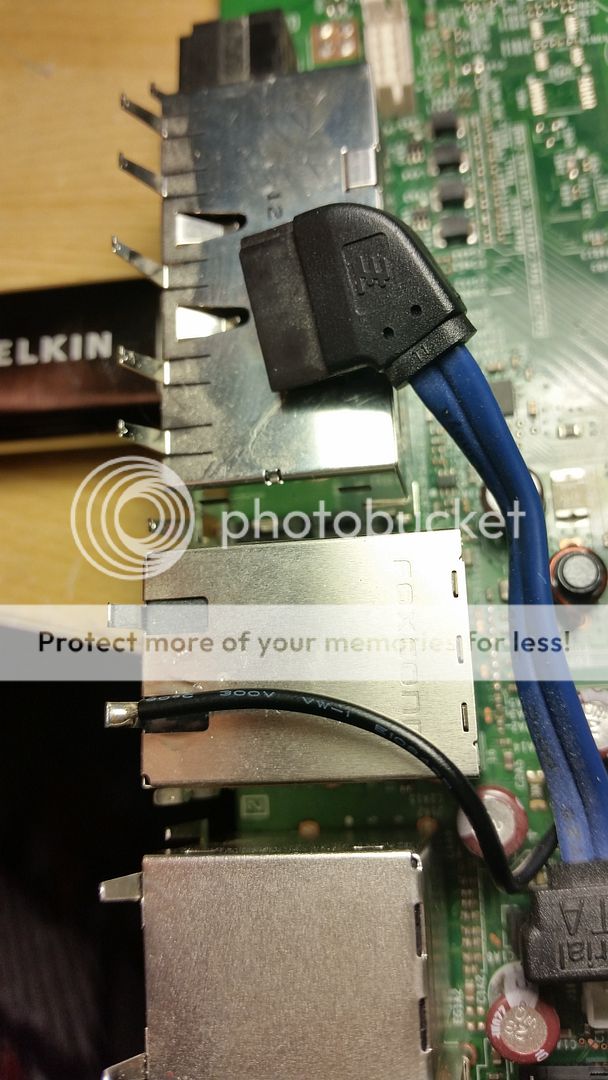

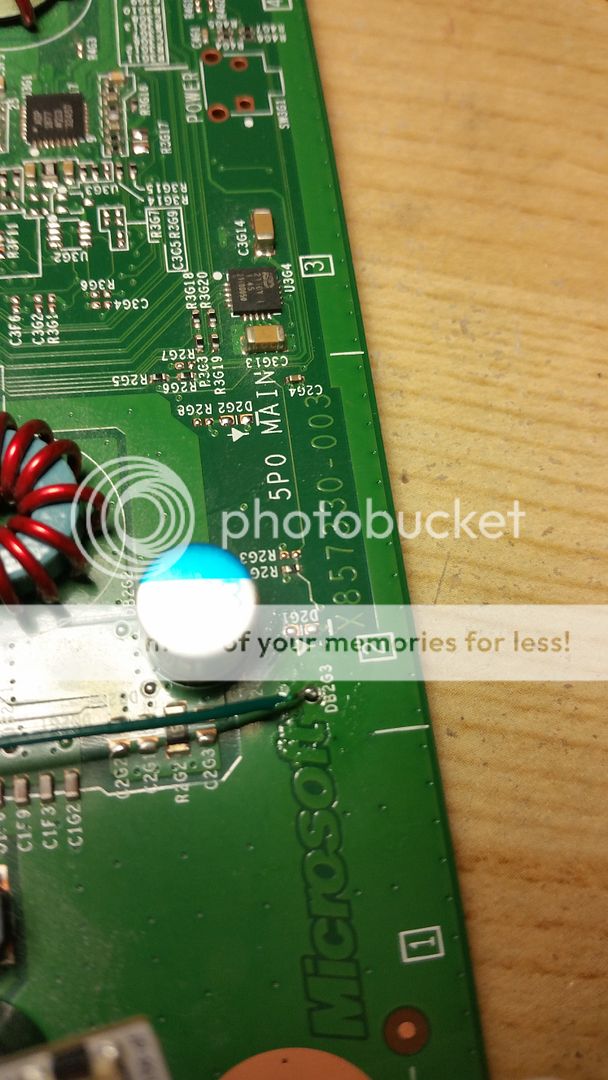

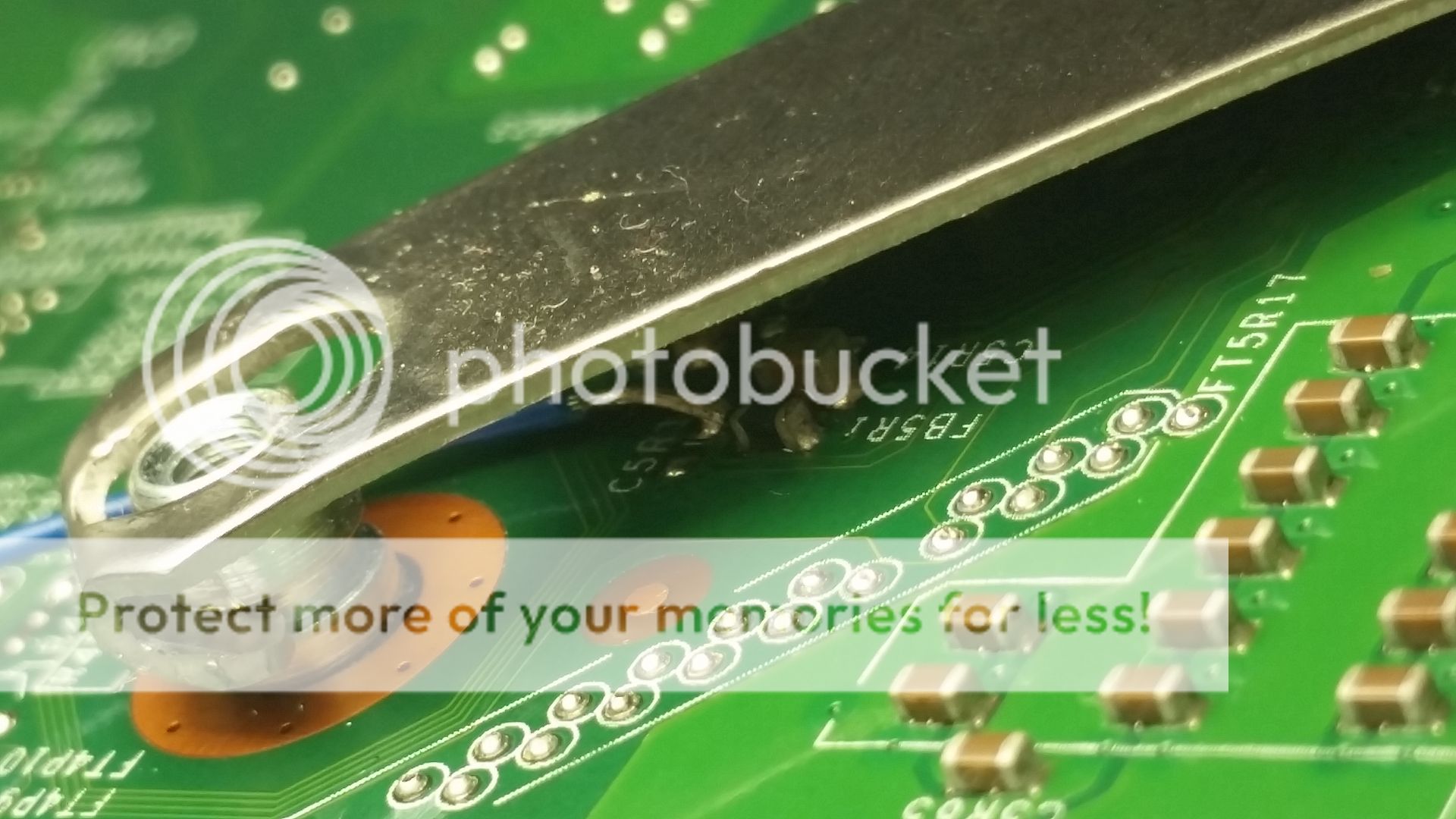

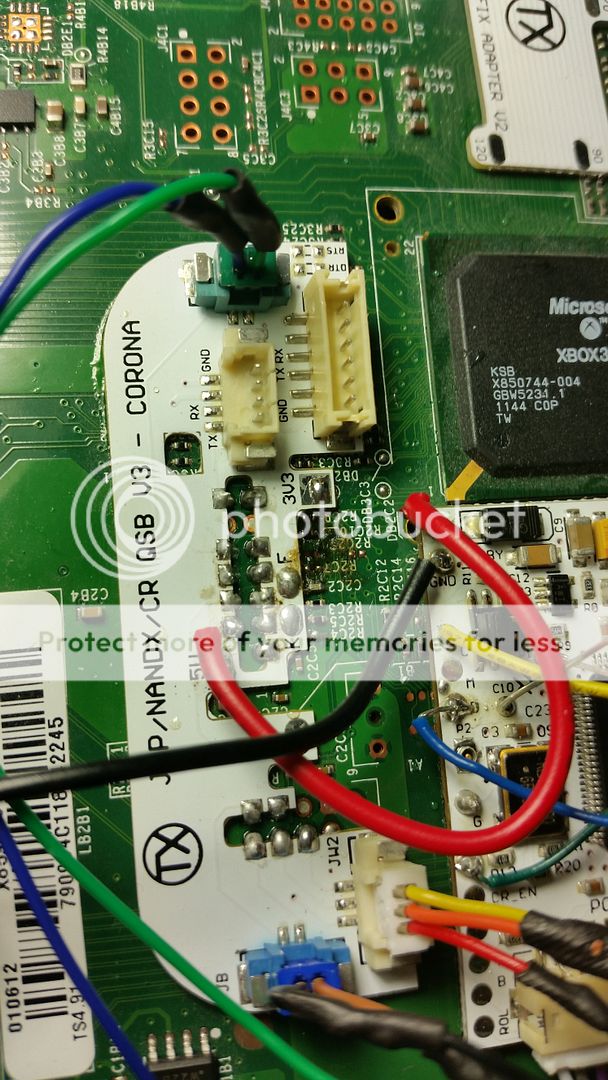

Images of close-up soldering to motherboard (attach images to your post) : check below
Detailed Description of the Problem : Checking Files Finished Checking Files Checking Console.. Device Not Found. Can not continue Checking Console.. Device Not Found. Can not continue Checking Console.. Version: 10 Flash Config: 0x00000000 Can not Continue Can not continue
and power ON with Green Light
Was the console working before you started: Yes
Do you get a green debug light appear on the CR4 XL chip every 4-5 seconds: NO
How long is the light on for each time (be aware that if you're trying to work on a faulty console, this is not a T-X product issue!!).

Code:

hecking Files Finished Checking Files Checking Console.. Device Not Found. Can not continue Checking Console.. Device Not     Found. Can not continue Checking Console.. Version: 10 Flash Config: 0x00000000 Can not Continue Can not continue

GeekHeat · Mar 1, 2015

syaugi · Mar 2, 2015

i have bridged only R2C4 ?
do i need to bridge R2C6, R2C7 and R2C10 ?

john mathews · Mar 2, 2015

just bridge r2c10

syaugi · Mar 2, 2015

john mathews said:
just bridge r2c10

so the jumper only R2C4 and R2C10 right?

and for R2C6 and R2C10 i will jumper to 10Ohm ?

john mathews · Mar 2, 2015

It has a resistor on it so leave it alone u need to check your qsb make sure there connection go over your soldering points on qsb and use a multimeter to check that u have a connection

syaugi · Mar 2, 2015

john mathews said:
It has a resistor on it so leave it alone u need to check your qsb make sure there connection go over your soldering points on qsb and use a multimeter to check that u have a connection

sorry i have a silly question,
how do i check QSB if they are have connection each others ?

syaugi · Mar 2, 2015

john mathews said:
It has a resistor on it so leave it alone u need to check your qsb make sure there connection go over your soldering points on qsb and use a multimeter to check that u have a connection

I have tested all of qsb and solder points has connected. .

syaugi · Mar 2, 2015

i have bridged r2c10

===================================================
Monday, March 02, 2015 7:28:50 PM

J-Runner v0.3 Beta (7) Started

WARNING! - Your selected working directory already contains files!
You can view these files by using 'Show Working Folder' Button

Checking Files
Finished Checking Files
Checking Console..
Version: 10
Flash Config: 0x00043000
00043000
Corona
CB Version: 9188
Trinity
Version: 10
Flash Config: 0x00043000
00043000
Corona
CB Version: 9188
Trinity
Reading Nand to E:\RGH\J-Runner v3 (5) Core Pack\output\nanddump1.bin
Reading Nand
Error: 250 reading block 3DA
Done!
in 3:28 min:sec

Reading Nand to E:\RGH\J-Runner v3 (5) Core Pack\output\nanddump2.bin
Initializing nanddump1.bin..
Header is wrong..
Trinity
Glitch2 Selected
Nand Initialization Finished
Reading Nand
Error: 250 reading block 3DA
Done!
in 3:28 min:sec

Comparing...
Bad Block ID 03DA Found @ 0x03FF [Offset: 0x107BE00]
Block ID 03FF [Offset: 0x107BE00] remapped to Block ID 03DA [Offset: 0xFE3400]
Bad Blocks Remapped
Bad Block ID 03DA Found @ 0x03FF [Offset: 0x107BE00]
Block ID 03FF [Offset: 0x107BE00] remapped to Block ID 03DA [Offset: 0xFE3400]
Bad Blocks Remapped
Nands are the same
Version: 10
Flash Config: 0x00043000
Reading Nand
Error: 250 reading block 3DA
Done!
in 3:28 min:sec

Version: 00
Wrong Version.
Version: 10
Flash Config: 0x00043000
Reading Nand
Error: 250 reading block 3DA
Done!
in 3:28 min:sec

Version: 00
Wrong Version.
Version: 10
Flash Config: 0x00043000
Reading Nand
Error: 250 reading block 3DA
Done!
in 3:28 min:sec

Version: 00
Wrong Version.
Version: 10
Flash Config: 0x00043000
Reading Nand
Error: 250 reading block 3DA
Done!
in 3:28 min:sec

Version: 00
Wrong Version.
Version: 10
Flash Config: 0x00043000
Reading Nand
Error: 250 reading block 3DA
Done!
in 3:28 min:sec

does anyone knows this problem ?

Antalpromille · Mar 2, 2015

syaugi said:
i have bridged r2c10

does anyone knows this problem ?

If they are the same when comparing then you can just go on, a bad block is nothing to worry about.

syaugi · Mar 2, 2015

Antalpromille said:
If they are the same when comparing then you can just go on, a bad block is nothing to worry about.

I couldn't write ecc, always failed

syaugi · Mar 2, 2015

just want to update

===================================================
Monday, March 02, 2015 10:47:16 PM

J-Runner v0.3 Beta (7) Started

WARNING! - Your selected working directory already contains files!
You can view these files by using 'Show Working Folder' Button

Checking Files
Finished Checking Files
Checking Console..
Version: 00
Wrong Version.
Can not continue
Checking Console..
Version: 10
Flash Config: 0x00043000
00043000
Corona
CB Version: 9188
Trinity
Corona Manually Selected
Version: 10
Flash Config: 0x00043000
Writing Nand
CORONA_16MB.ecc
Done!
in 0:18 min:sec

Glitch2 Selected
CR4 Selected
Version: 10
Flash Config: 0x00043000
Writing Nand
CORONA_16MB.ecc
Done!
in 0:18 min:sec

Checking Console..
Version: 10
Flash Config: 0x00043000
00043000
Corona
CB Version: 9188
Trinity
Initializing nanddump1.bin..
Corona
Nand Initialization Finished
ECC created
Version: 10
Flash Config: 0x00043000
Writing Nand
image_00000000.ecc
Done!
in 0:18 min:sec

Connection TimeOut
Tip: Load the nand on source to have quicker results.
Scanning...
No Xbox Detected
Finished
Glitch2m Selected
Checking Console..
Version: 10
Flash Config: 0x00043000
00043000
Corona
CB Version: 9188
Trinity
Corona Manually Selected
ECC created
Version: 10
Flash Config: 0x00043000
Writing Nand
image_00000000.ecc
Done!
in 0:18 min:sec

ecc created and wrote ecc
the red lights went on on my cr4 and the fan started spinning but there wasn't anything on the screen and no xell.
i played around with dips but still nothing happen

GeekHeat · Mar 2, 2015

is the green debug light flashing on the cr4

Antalpromille · Mar 2, 2015

syaugi said:
just want to update

ecc created and wrote ecc
the red lights went on on my cr4 and the fan started spinning but there wasn't anything on the screen and no xell.
i played around with dips but still nothing happen

Remove the cap and try again.

syaugi · Mar 2, 2015

GeekHeat said:
is the green debug light flashing on the cr4

Nothing green light. Only red at cr4 with fan spin

Antalpromille said:
Remove the cap and try again.

I did, but still nothing

GeekHeat · Mar 2, 2015

Green debug light needs to be flashing. This can be down to bad connection/soldering on post out or CPU_rst.check these points. There is a bit of exposed wire on CPU_rst point. Cut it down and resolder.

john mathews · Mar 2, 2015

he didnt even select cr4 op check the cr4 box and trinity mb / glitch2 create ecc write ecc/ that doesnt fix it x=check postfix adapter make sure it seated correctly/ solder on the cr4 is bad i would cut them wire down and add flux and redo it:biggrin:

Antalpromille · Mar 2, 2015

john mathews said:
he didnt even select cr4 op check the cr4 box and trinity mb / glitch2 create ecc write ecc/ that doesnt fix it x=check postfix adapter make sure it seated correctly/ solder on the cr4 is bad i would cut them wire down and add flux and redo it:biggrin:

If you read his log you would have seen that hi finally did select CR4 and created ECC with it selected.

Antalpromille · Mar 2, 2015

OP, could you remove the yellow wire and measure the resistance between the "5" pad on your post fix and GND?

syaugi · Mar 2, 2015

john mathews said:
he didnt even select cr4 op check the cr4 box and trinity mb / glitch2 create ecc write ecc/ that doesnt fix it x=check postfix adapter make sure it seated correctly/ solder on the cr4 is bad i would cut them wire down and add flux and redo it:biggrin:

i did select cr4 box with glitch2, it was successfully ecc created and wrote ecc,
i checked post fix adapter, there was yellow pin broken and does not touch to the cpu ( might be this problem ? )
and also i have done resolder on the cr4 wire with all cables

GeekHeat said:
Green debug light needs to be flashing. This can be down to bad connection/soldering on post out or CPU_rst.check these points. There is a bit of exposed wire on CPU_rst point. Cut it down and resolder.

just did it

Antalpromille said:
OP, could you remove the yellow wire and measure the resistance between the "5" pad on your post fix and GND?

i tried to measure with multimeter, was not connected

???
