ANSWERED Corona v5 Issue??

Status
Not open for further replies.
M

morinzo

VIP Member
Oct 28, 2005
729
0
TX Product(s) used: J-R Programmer v2, Slim Proto v2, Slim Demon
Console Type: Corona v5
NAND size: 16
Dashboard version: 2.0.16203
CB version: 13182
Screenshot of NAND details from J-Runner:


J-Runner log:
Code:
[B][B][B][B][B][B][B]Saturday, March 15, 2014 7:18:55 PM
[/B][/B][/B][/B][/B][/B][/B]

J-Runner v0.3 Beta (4) Started






Checking Files
Finished Checking Files
Checking Console..
Version: 10
Flash Config: 0x00043000
00043000
Corona
CB Version: 13182
Corona
Initializing nanddump3.bin..
Corona
RGH2 Selected
Nand Initialization Finished
Version: 10
Flash Config: 0x00043000
Writing Nand
nanddump3.bin
Error: 202 writing block 51
Done!
in 3:44 min:sec

updflash.bin log: N/A

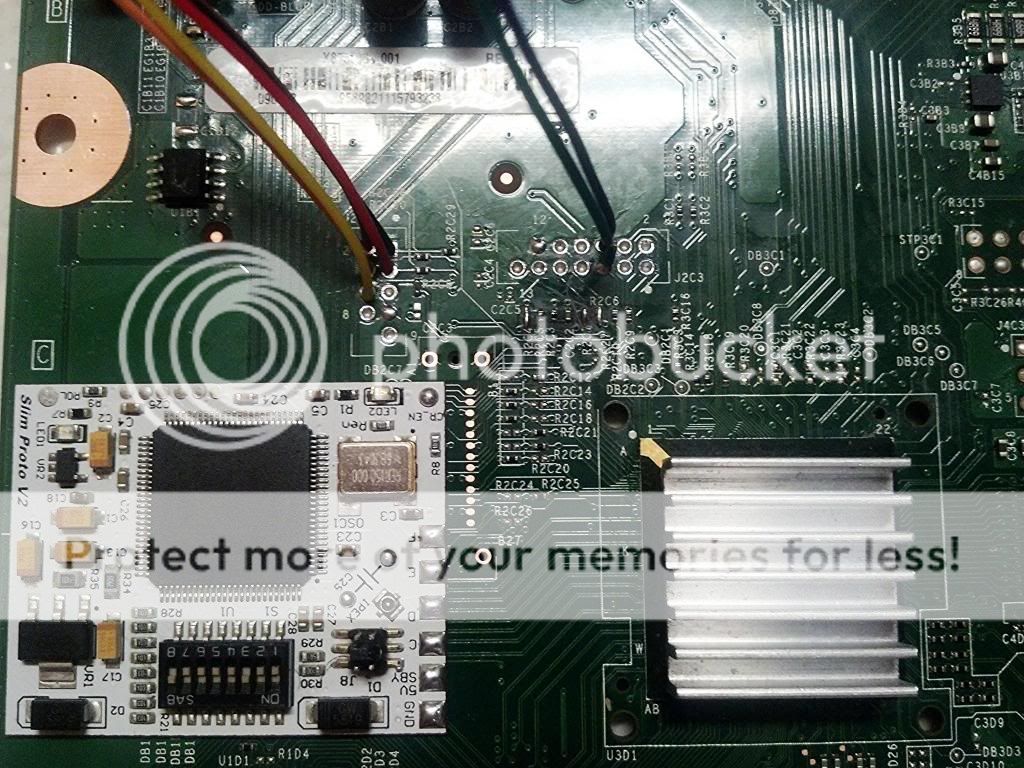

Image of Slim Proto v2:


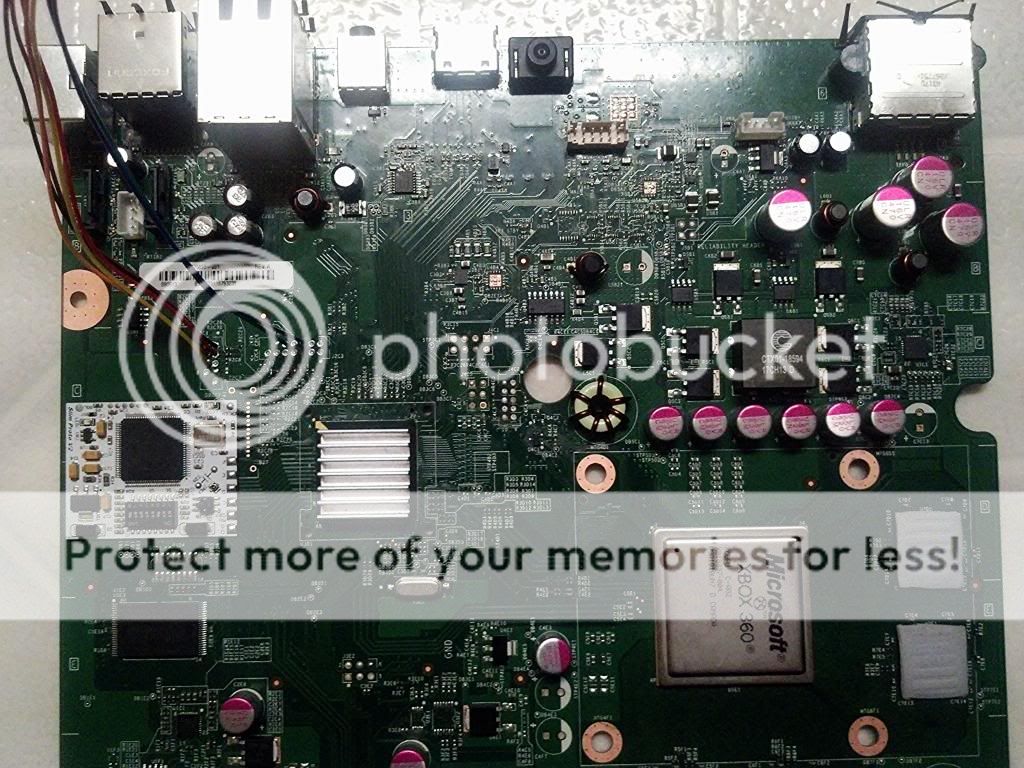

Images of close-up soldering to motherboard:









Here is a video showing the issue:
http://s1365.photobucket.com/user/x.../2014-03-15_20-23-17_903_zps8c39fa46.mp4.html

Description of problem: My wifes cousin installed a demon & slim proto v2 and got it booting xell and xebuild img, I'm not sure what happened but it stopped booting and 2-3sec after you press
the power button it turns itself off (No error led and no power to the fan). The only thing currently installed on the motherboard now is the Corona Demon QSB, JR Prog v2 Wires & Slim Proto v2 (Not Wired)

Was the console working before you started: Yes

Do you get a green debug light appear on the RGH chip every 4-5 seconds: N/A

How long is the light on for each time: N/A

Last edited:
M

morinzo

VIP Member
Oct 28, 2005
729
0
If you watch the video do you think it has a short (bridge) somehere??

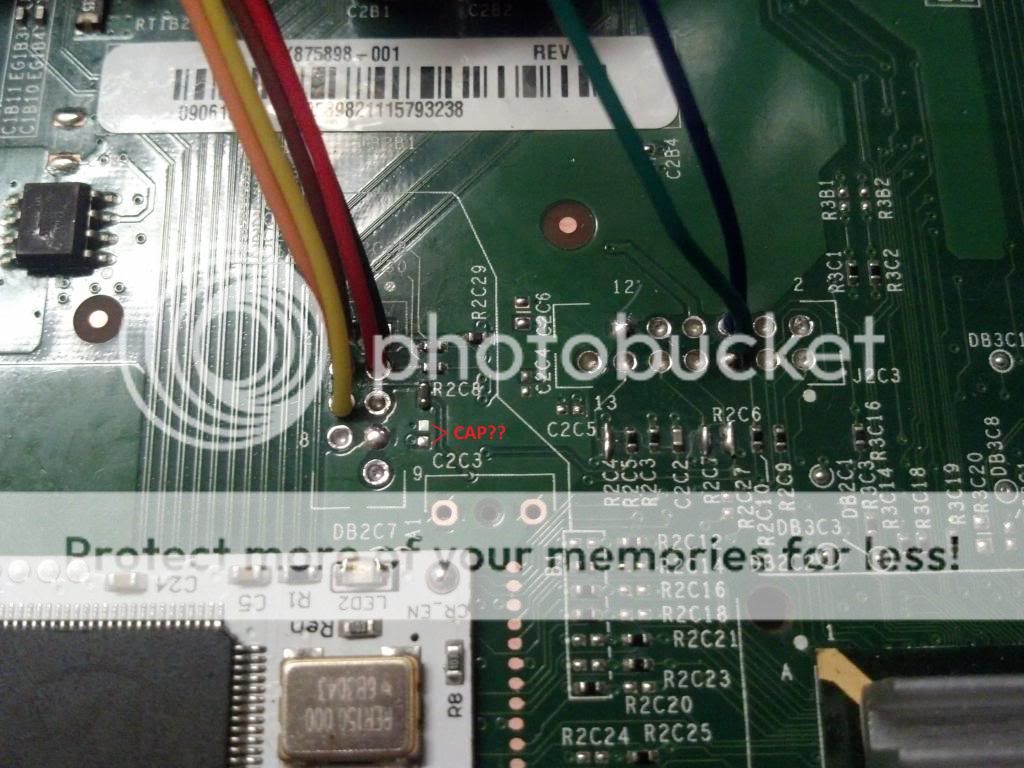

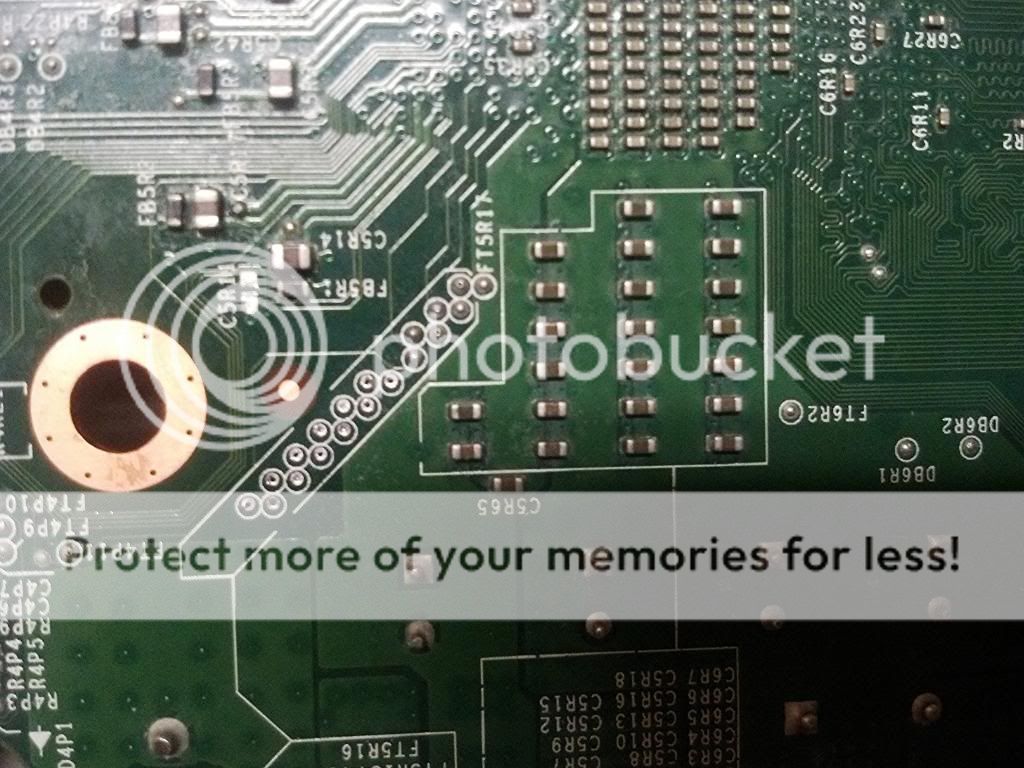

In the pic below is there supposed to be a cap where I have it marked on the corona v5?? I don't have another one on hand to compare.


Last edited:
M

morinzo

VIP Member
Oct 28, 2005
729
0
he screwed something up, i'm trying to get it to boot the orig nand img. I don't need anything wired until i get it booting stock again.

after he had the issues i removed the wires from slim proto v2 and used Chip Quik to make the Demon removal easy..

Update: I have now used chip quik to also remove the corona demon qsb. just trying to get it booting stock nand for now.

Does anyone have a pic of the top of a corona v5 motherboard so I can compare and see if he accidently removed a resistor or cap in the area where the v3 qsb goes? I sold the v5 that my son fixed up so nothing to compare to.

Last edited:
M

morinzo

VIP Member
Oct 28, 2005
729
0
Acton1 said:
you need to post pic of your demon removel mate before we can help
Click to expand...

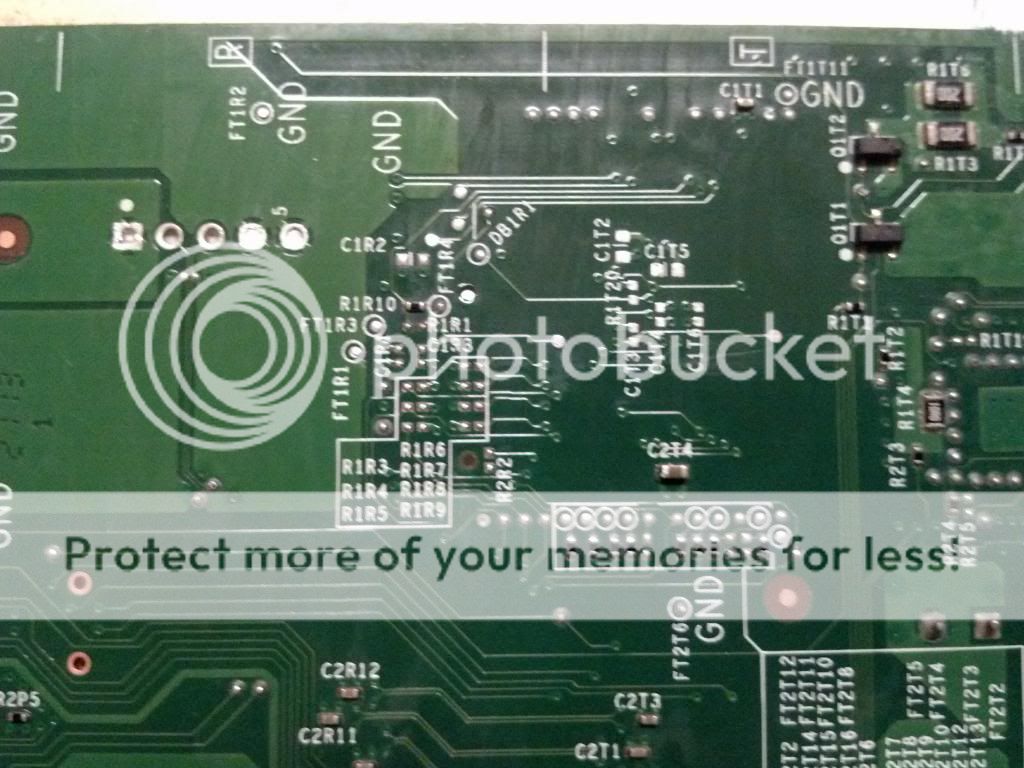

It was doing this before the demon was removed but here is your pic. If you need anything else just ask.

Also If my pics are to big just let me know, just want to make sure you guys can see everything good.

And I know it needs a good cleaning when I'm finished. :)

I was hoping some one some good v5 pics I could compare to..


Last edited:
Martin C

Martin C

VIP Member
Jan 10, 2004
35,981
0
Scotland, UK
www.team-xecuter.com
Unfortunately this is like trying to ascertain the cause of blame of an accident after all the evidence has been cleaned up. If the console is just turning itself off (with no error) it's possibly a southbridge related issue. I guess you could try reflowing/reballing/replacing it.

M

morinzo

VIP Member
Oct 28, 2005
729
0

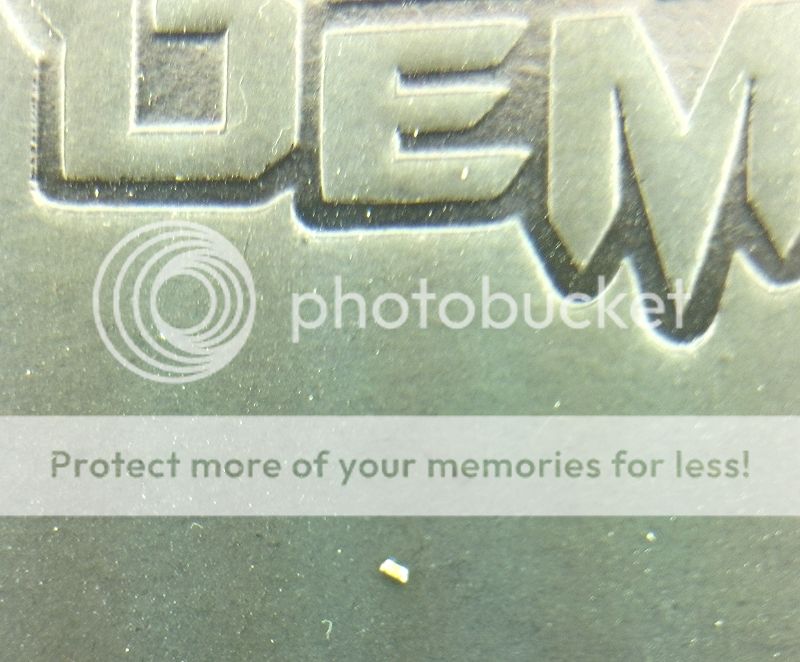

Ok , I got a huge magnifying glass and found a loose cap stuch to another cap just to the left of the cpu/gpu.

Does anyone have a high res pic of the top and bottom of a corona v5 motherboard so I can try to figure out where it goes..


Martin C

Martin C

VIP Member
Jan 10, 2004
35,981
0
Scotland, UK
www.team-xecuter.com
The term 'needle in a haystack' springs to mind.

Does the southbridge get hot?

Have you checked the resettable fuses when it powers off?

M

morinzo

VIP Member
Oct 28, 2005
729
0
Martin C said:
The term 'needle in a haystack' springs to mind.

Does the southbridge get hot?

Have you checked the resettable fuses when it powers off?
Click to expand...
Nothing on the motherboard gets hot when I power it on & I'm not sure where the resettable fuses are on a corona v5. Do you know the location??

Last edited:
Oggy

Oggy

Staff member
Troll Eating Dogs
Mar 1, 2010
3,346
128
C2C3 on a v5 isn't present FYI.

M

morinzo

VIP Member
Oct 28, 2005
729
0
So far I have found 4 resettable fuses (RT) on the top side and 2 on the bottom side and all have continuity when i press power and when It powers off.

Last edited:
M

morinzo

VIP Member
Oct 28, 2005
729
0
Martin C said:
Does it turn off immediately, even without the RF board disconnected?
Click to expand...
here is a video that shows how it turns off and the led on rf board & power supply.

[video]http://s1365.photobucket.com/user/xXIMOIXx/media/Corona%20v5/2014-03-15_20-23-17_903_zps8c39fa46.mp4.html[/video]

I took the rf board out and tried to use a wired controller to boot the console and the led on the plug & play cord does not come on, so all the usb ports are not getting power. I tested the cord on another console to verify it was good..

M

morinzo

VIP Member
Oct 28, 2005
729
0

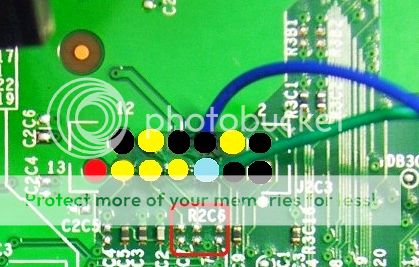

i checked the standby at J2C3 and they was all good



Red :5.1v
Yellow: 3.334v
Blue: 3.072v
Black: GND

Where else should I check? I Want to Thank Everyone for thw help so far!!

Last edited:
