Demon pre install

[jayb1239]

Hi, first time with a demon and I'm just seeking clarification.

The Demon hasn't yet been installed as it was my understanding that it was good practice to check everything worked before installing.

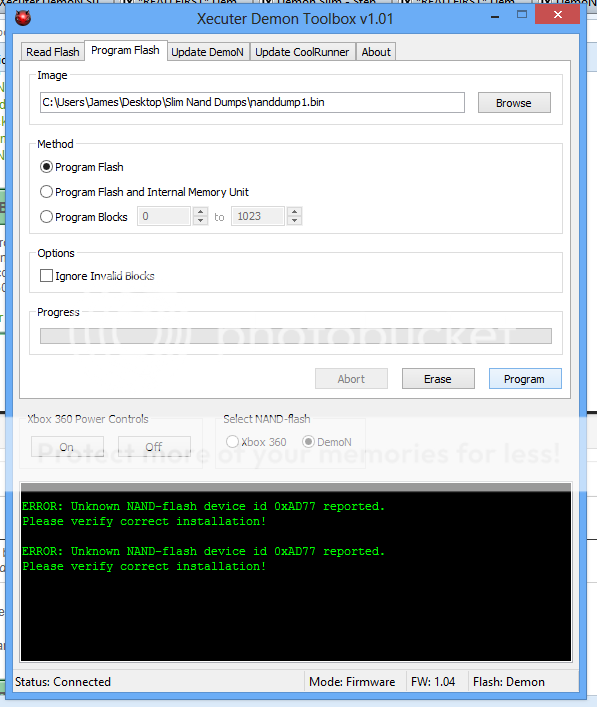

I updated to the latest firmware 1.04 which went successfully. Then I tried to flash a nand to the Demon (not installed) but get the message

ERROR: Unknown NAND-flash device id 0xAD77 reported.
Please verify correct installation!

The Demon NAND is definitely selected and I toggled NANDs a few times to be sure, I have tried both the on-board micro USB with 2 separate cables and the mini USB on the extension board thing with 2 separate cables but always receive the same message.

This has been attempted on XP, 7 & 8 with the same results.

Maybe i'm interpreting the instructions wrong but I assumed that the Demon NAND could be written and read back to verify that it was working before installation.



[mat1110]

have you switched the switch on the DemoN to pc



[Martin C]

So the DemoN is set to PC and you're using a micro-USB cable connected directly to the DemoN PCB? Can you post a pic?



[jayb1239]

have you switched the switch on the DemoN to pc

The PC/XB switch, yes that is set to PC.

Drivers are installed and firmware upgrades work fine so I assume the PC can *talk* to the Demon

---------- Post added at 04:32 ---------- Previous post was at 04:23 ----------

So the DemoN is set to PC and you're using a micro-USB cable connected directly to the DemoN PCB? Can you post a pic?

Please advise any other pictures you need. Both USB connecting methods result in the same error.

Thanks



[Martin C]

I would say there's a fault between the controller and the NAND, causing the ID to be wrong (should be 0xAD73). Contact your reseller and get a replacement.

This is why we advise you test before installation

EDIT: Did you test before you updated? Have you tried to update the firmware again using that same cable? (looks like it's from a Kindle)



[jayb1239]

I don't suppose it could have occurred due to the firmware update could it? Would downgrading to 1.02 help and if so do you know where a download is available?

Thanks

---------- Post added at 04:44 ---------- Previous post was at 04:42 ----------

Looking at this Demon board, if you have one on hand could you advise if R12 should be populated? as on this board it isnt. Also R8



[Martin C]

I don't suppose it could have occurred due to the firmware update could it? Would downgrading to 1.02 help and if so do you know where a download is available?

Thanks

There's nothing wrong with the 1.04 firmware. I would try to reapply it.



[jayb1239]

There's nothing wrong with the 1.04 firmware. I would try to reapply it.

I have tried with the kindle cable and also my external hard drive cable on the micro USB, never tested before the FW update, wasn't suggesting there was a problem with 1.04 but was just asking if that was the possible cause.

Already tried to re-apply the FW update, still the same

EDIT: Looking at this Demon board, if you have one on hand could you advise if R12 should be populated? as on this board it isnt. Also R8



[Martin C]

No - they should be as-is AFAIK.

Just contact your reseller and get a replacement. You've tested before installation which is exactly why the micro-USB is there.



[jayb1239]

Ok, thanks for your help



[jayb1239]

The problem with my Demon is a poor solder joint on the square TX branded IC just in case anyone is interested and has this issue in future

EDIT: a reflow of the IC in question appears to have fixed the issue
