E79 help

[wolf000100]

ok so i write xell then i have e79 i put back to original no e79 xell=e79 no xell=no e79 someone plz help and its good soldering.Any solutions?



[rocket8080]

Your double posting now mate, have you tried the resistor settings on the qsb? And are you sure that your soldering is good?



[wolf000100]

im using nand-x chips and i got xenon so all i have done is read nand 2wice compared and there fine then write xell then im suppose to get cpu key right? so im suppose to turn on xbox my eject but when i do E79 come's on and i would post pics but when i previewed them they were big pics and i dont kno the size requirements here.



[big_ted]

you have soldered the jtag side of things ?

points J2D2 to J1F1

Ted



[wolf000100]

i have done all that and dash starts with 5 so im good anyone else?



[rocket8080]

did you have any bad blocks in your nand?



[wolf000100]

how would i check ?



[rocket8080]

open your nand image in degraded 1.1, or in nandcompare. It will say if you have any bad blocks.



[wolf000100]

open your nand image in degraded 1.1, or in nandcompare. It will say if you have any bad blocks.

1024 block(s) in nand image
0 non-matching block(s) found



[rocket8080]

Will have to look at some high res pics to check the soldering. The qsbs are made for ease of effort but you would be surprised at how many people have problems with them and get e79



[wolf000100]

well i got pics but when i previewed them here they were big but here they go then



[wolf000100]

hmm there blury nvm might take some better 1s sec



[wolf000100]



[rocket8080]

mate cant see anything with those pics.



[wolf000100]

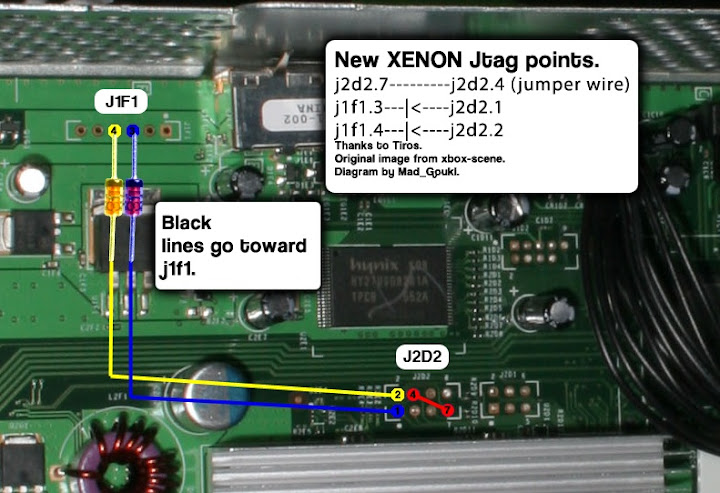

what type diodes do i need so i can do it that way



[rocket8080]

you can use BAT41 or 1n4148 diodes.



[wolf000100]

hey can i use these they came with nand x do they have diodes in them?
http://team-xecuter.com/jtag/JTAG_KIT2.jpg



[rocket8080]

yes mate



[wolf000100]

k ima do it right now and will post results



[manwithoutname]

Yes, those have got diodes in them ....
