erro trying to create .ecc file

ball00

ball00

VIP Member
Nov 8, 2011
632
0
France
Agreed Multibuilder is turning out to be the most rocksolid app for building images for the moment. Try that. Failing that you can go the original method using python to build the image. Try multibuilder and post back if you have any problems.

playingmax

playingmax

Staff member
Troll Eating Dogs
Jul 7, 2005
4,875
128
New York/Westchester/Putnam County
team-xecuter.com
it wont let me open it. keep getting error. it just lets me open the freeboot file. long story short. I lost the original nand and the ecc, wrote the ecc. (pc crashed so lost all data)
had to reinstall windows n all. did a reading again of the nand (dont know if because I wrote the .ecc file the nands are no good. but I am able to boot into xell and get cpu and dvd key.

Martin C

Martin C

VIP Member
Jan 10, 2004
35,981
0
Scotland, UK
www.team-xecuter.com
Think I'm going to need to do a sticky on LDVs.... :)

Boot to XeLL

count the FFFs on lines 7 and 8. This is your LDV number.

Open freeboot.bin in 360 Flash Dump Tool.

The HIGHEST LDV needs to be this number. If it's lower, you need to change it.

Either manually patch in 360 Flash Dump Tool or rebuild a new image but edit options.ini in multi_builder to reflect the ldv you saw in xell.

B

blastagator

Full Member
Nov 9, 2011
94
0
playingmax said:
I think Im asking for a lil too much but can I send you the info and files and u creat a working freetboot n ecc for for me?
Click to expand...

Seriously?:facepalm: He told you what to do. Just do it lol.


Also, he can't do it without the LDV, which you have to boot xell to get, as he said. And if you do that, all you have to do is type the number.

Last edited:
Martin C

Martin C

VIP Member
Jan 10, 2004
35,981
0
Scotland, UK
www.team-xecuter.com
Maybe because you've not configured 360 Flash Dump Tool for your NAND?

Missing the CPU key perhaps?

Why not just rebuild with multi_builder then?

B

blastagator

Full Member
Nov 9, 2011
94
0
360 Flash Tool errors when you try to open a NAND that has been patched with the .ecc file. I don't know if there is a way around it or not.

B

blastagator

Full Member
Nov 9, 2011
94
0

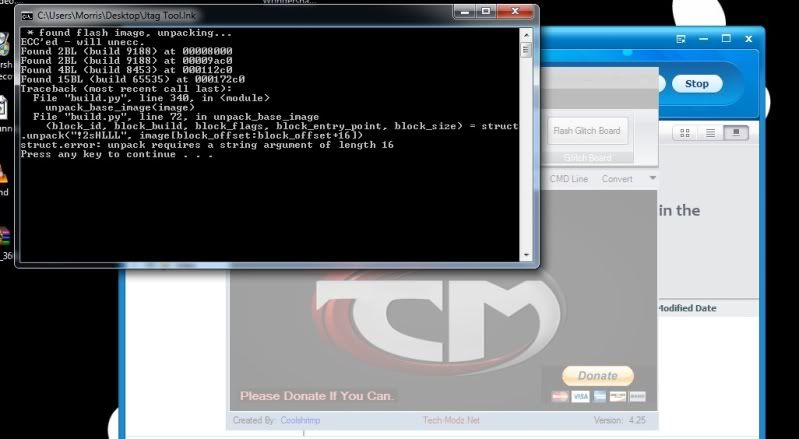

When you run multibuilder I assume you get this error? What version are you using? (I did my testing with v3)

I did the steps you said you did. Built the glitch image from a NAND that had the ECC patch done to it. It appears that as martin said, it should work but you will need to manually insert the LDV in to the 'options.ini' under the variable line 'cfldv = '

Does the rebuilt image open in 360 Tool at all? I tried that as well and mine did, but as previously indicated by the error, the LDV was wrong and set to 0.

Last edited:
  • Like
Reactions: playingmax
playingmax

playingmax

Staff member
Troll Eating Dogs
Jul 7, 2005
4,875
128
New York/Westchester/Putnam County
team-xecuter.com
Martin C said:
Maybe because you've not configured 360 Flash Dump Tool for your NAND?

Missing the CPU key perhaps?

Why not just rebuild with multi_builder then?
Click to expand...

not missining the key but the LDV is 0
Ive never used multi builder. will give it a try.

---------- Post added at 14:56 ---------- Previous post was at 14:55 ----------
blastagator said:
360 Flash Tool errors when you try to open a NAND that has been patched with the .ecc file. I don't know if there is a way around it or not.
Click to expand...

yes thats the problem Im having. I dont have the original dump. I only have the dump after patching the .eec file.

---------- Post added at 14:57 ---------- Previous post was at 14:56 ----------
Martin C said:
you can open a freeboot file though, which is what he's trying to do.
Click to expand...

yes thats what Im trying to do but it wont let me edit.

---------- Post added at 15:02 ---------- Previous post was at 14:57 ----------
blastagator said:
When you run multibuilder I assume you get this error? What version are you using? (I did my testing with v3)

I did the steps you said you did. Built the glitch image from a NAND that had the ECC patch done to it. It appears that as martin said, it should work but you will need to manually insert the LDV in to the 'options.ini' under the variable line 'cfldv = '

Does the rebuilt image open in 360 Tool at all? I tried that as well and mine did, but as previously indicated by the error, the LDV was wrong and set to 0.
Click to expand...

yes this is the error Im receiving. I am using v3. I could open the rebuilt image w/ 360 tool. but it wont let me edit it. my ldv is also set to 0. I will try to manually insert the ldv in the options. ini. my xell only shows 2 f's in line 7 and 0 in 8. so I guess Im replacing ldv 0 w/ 2?

B

blastagator

Full Member
Nov 9, 2011
94
0
If you click patch at the bottom of 360 Tool;
Tick the "Patch Headers" box;
Then type in your LDV in to the SECOND box;
Click ok;
It will ask you to save the patched image, make it a new name.

Ta da!

PS I don't know if the CPU Key must be inputted in the tool for this, either way, might as well put it in since you have it!

PPS I tested this with the dump I made the exact way you made yours.

my xell only shows 2 f's in line 7 and 0 in 8. so I guess Im replacing ldv 0 w/ 2?
Click to expand...
Yes

Last edited:
