RGH Failed RGH, messed up STBY_CLK, trying to resurrect board

[drogy]

no, but i have some rrod boards i could try it on if you think it could be an issue.. although i don't get how it erases, reads back blank nand, writes ok and then can't read back what it just wrote. and how come even though the whole read gets error 218, the end file almost matches the original? is the southbridge involved in any way when writing nand?



[Martin C]

How do you know it's erasing and writing ok?



[drogy]

well, i know it's erasing ok because when i read back after erasing i get a file full of FFFF's. also, nandpro doesn't give errors so i'd assume it writes ok, but i get your point. i'll try on a different board and report back.

edit: ok, tested on different board and flasher is working fine. reading, writing, erasing. all is good.



[Martin C]

Then the SPI on the southbridge could be damaged. You might have to resort to a direct NAND programmer to get this working.



[drogy]

do you mean like a tsop programmer? take the nand off the board, program it in the programmer and put it back?



[Martin C]

Hopefully not. A Cygnos, Infectus or Progskeet should be able to do it.



[drogy]

i managed to find a cheap infectus 2, but the problem is i can't find any install diagrams for slim.. there's no support for this chip, no activity in the last 2-3 years. cygnos isn't much different and progskeet is in its infancy when it comes to support.. i'll try a lpt dump today and maybe soldering to the back of the board. if i get the infectus, can i ask you for help installing it? maybe you have experience with it...



[Martin C]

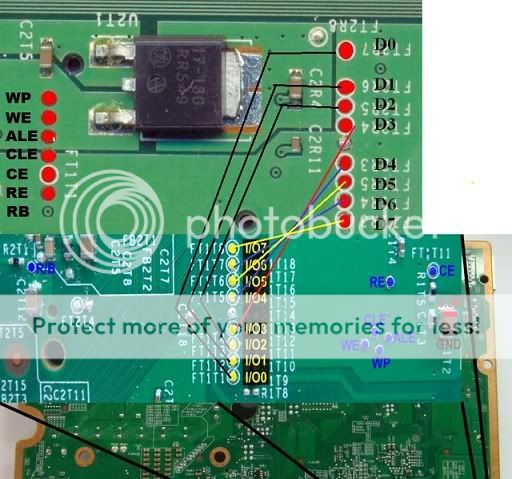

Points compared between phat and slim:

http://i1217.photobucket.com/albums/dd387/devion1/reset3.jpg

Here are the points for an infectus 2 on a phat 360:

http://img7.hostingpics.net/pics/210009Xbox360_1b.jpg

Between these, you should have enough info.



[drogy]

many thanks, Martin! this looks simple enough. i'll update on how it goes, maybe it helps somebody else.



[drogy]

i couldn't get the infectus, so i had another ideea: nand transplant. i figured if it's the spi, the nand would already be programmed and if it's the nand, the new one would work. i had some rrod boards so i flashed the nand on the phat board with trinity bin, then i transplanted the nand to the trinity board and guess what... still no power, still same errors reading nand and i'm still able to erase and write without errors and i get good flashconfig. any ideeas?



[Martin C]

Nope - clock it up as another console fit for the bin, purely down to people using their games console for soldering practice. I have personally seen 6 boards go to the trashcan this week alone because they 'thought' that soldering to points 1mm in width could be done with no experience whatsoever.

MS are LOVING the fact there are people out there killing their consoles.



[drogy]

oh well.. at least i did my first xbox nand transplant succesfully it was worth it just for that. thanks for the help, Martin!



[jpoy808]

is 33-kohm the same as 33omhs



[Martin C]

is 33-kohm the same as 33omhs

No. 33k = 33000. Basic maths !!
