Falcon e79 after xell

[mafia 5k]

Hey again , I have a exploitable falcon Cb5766 Dash 7357 Im using db1f1 and the rf module jtag points i also tried aud_clamp & dvd tray method both attempts to install xell resulted in e79 1 red light...

ill post a few pics of my current config below ... my only worry is the bad blocks there was 5 of them also my nands 1-2 dont match here is the block:
1024 block(s) in nand image
1 non-matching block(s) found
1D0

what do you guys think is the issue i removed wires and booted to stock dash btw so its not a hardware issue



[iloveme28]

check your soldering as most the time thats what causes e79 error on jtags, also remap the bad block your nand image with xnand healer download from here

I had the same problem this morning with xenon all working now



[mafia 5k]

omfg did you guys notice i had the jumper in the wrong holes wow i feel like a noob anyway got xell ill answer back after freeboot...



[mafia 5k]

READ..... i installed freeboot and it now boots to the start up screen like the xbox emblem and stays there i remapped and it still doing the same thing weird any help?



[Martin C]

Do you have a HDD connected? Try disconnecting it.



[mafia 5k]

no i do not just dvd drive it just sits at the logo after wont go to dashboard



[mafia 5k]

oh wow i hooked up a controller and while i was sitting at the logo i hit the guide button and it poped up like i was signed in on live with friends and stuff wtf? iam not connected neiter do i have dash ill make a video



[mafia 5k]

View My Video


here is the video it acts like its at the dash i hit the guide button and it pops up but i wont boot dashboard this is really freaky and could it be my freeboot image or the bad blocks ?



[big_ted]

Would say bad blocks. that's the usual cause.

Ted



[mafia 5k]

im not sure im remapping correctly i also just tryed the aud_clampp and dvd tray and still the same thing could someone help me on this one i have done it in the past but im not sure its going to be same for this



[M AzeeM K]

im not sure im remapping correctly i also just tryed the aud_clampp and dvd tray and still the same thing could someone help me on this one i have done it in the past but im not sure its going to be same for this

Which image are you remapping? The original one which you use to make the freeBOOT image or the created freeBOOT image itself?



[mafia 5k]

i unmapped my stock nand ,created freeboot using my unmapped stock nand then remapped the unmapped freeboot nand ...is this right?



[J2G]

unmapped ? remap the bad blocks or block on your original nand save the remapped nand then make your freeboot with the nand you remapped and write it to your Jtag nand when complete plug out the power plug on the back of the 360 wait for a min there abouts and plug it back in and try it.



[M AzeeM K]

i unmapped my stock nand ,created freeboot using my unmapped stock nand then remapped the unmapped freeboot nand ...is this right?

Well...there are three ways of doing it.

1. Don't remap the original NAND image but remap the freeBOOT image.

2. Remap the original NAND image but don't remap the freeBOOT image.

3. Remap the original NAND image as well as remap the freeBOOT image.

The 1st way usually works, but if it doesn't work, then you should try the other 2 options.



[J2G]

i always goes with old reliable lol original NAND



[mafia 5k]

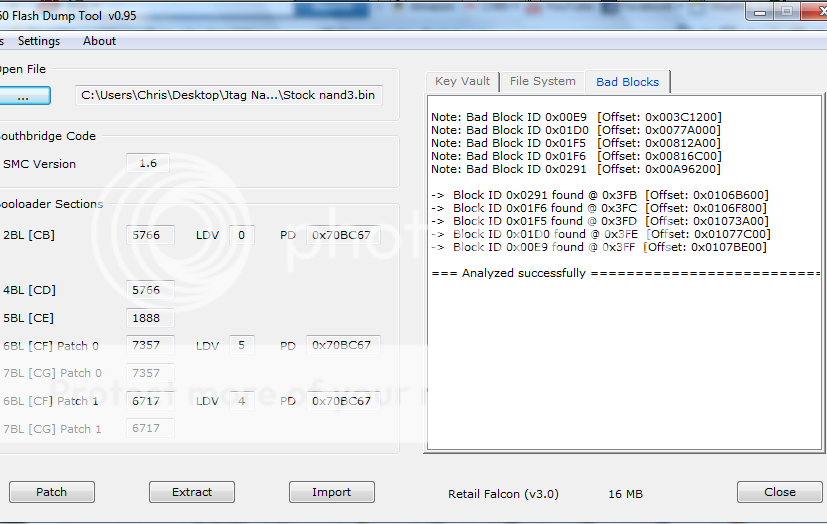

yes im using jtag tool and i just remapped like you said and still the same problem here are my bad blocks:



[mafia 5k]

also when i write it it says error202writing 1d0



[J2G]

try using XNand Healer GUI to remap



[mafia 5k]

it says error reading 0e9 when i use that? could on of you teamveiwer me to help please



[J2G]

upload your nand and Key to media fire put a password on it and pm me the details i'll take a look see can i fix it for you
