TEST Help alternative solder point

[Andy9788]

Hi all

Hope someone can help I tried to fit the sputnik 360 switch to my Liteon DG-16D4S, and damaged the track where the track cut is.
I just wanted to know if there is an alternative position I can put a wire link instead of the missing pad or is it a bin job and get the unlocked replacement PCB.

Thanks

Andy



[diaboliq20]

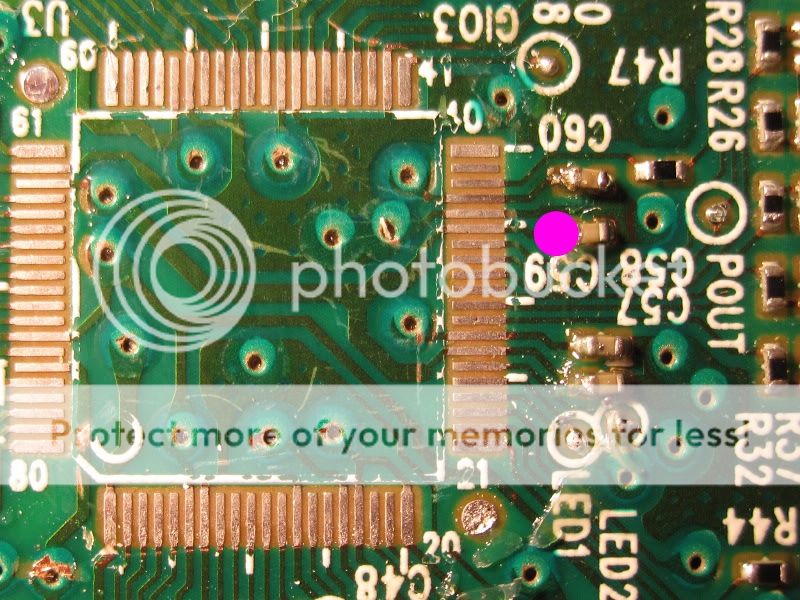

I think this is the one

Be warned tho - C59 is freakin tiny lol



[x360ccm]

yup thats the one:biggrin:



[diaboliq20]

it's a bloomin tricky one too - that's some macro soldering there lol



[x360ccm]

never had to do one yet,i was tryin to find the thread were a guy had same prob.



[Andy9788]

Thanks Gents

So do I just use w wire link from the solder point on the switch to C59

You guys are the best



[N.E.Modz]

Thanks Gents

You guys are the best

teajunkie is the man for these, I had one and he fixed it. (god knows how he can see that small lol)

dale



[Andy9788]

So do I just use a wire link from the solder point on the Sputnik switch to point C59



[diaboliq20]

u just use a wire to jump from the pad shown to C59 yes



[Andy9788]

Sorry I don't get this

If I just wire link the two points in red what connects to the sputnik solder point that should connect to the missing pad.

Andy



[rdubbs007]

for reference.



[x360ccm]

something like this.the c59 link to the sputnik switch.



[twisted247]

one end of wire to sputnik other end to c59 closest to the chip thats it repair of the trace isnt needed trust me have done a few and havent repaired the trace drive works fine but if u can repair it do so. also soldering to the c59 is not hard yes small spot but easy tin ur wire first use little flux on the c59 point put the wire agianst it tap ur iron a few times on it done
