RGH Help,question before i continue?

[ataroreh8132]

I have a Jasper MOBO and run cmd then copy and paste all 4 lines and it perform all 3 line automatically.

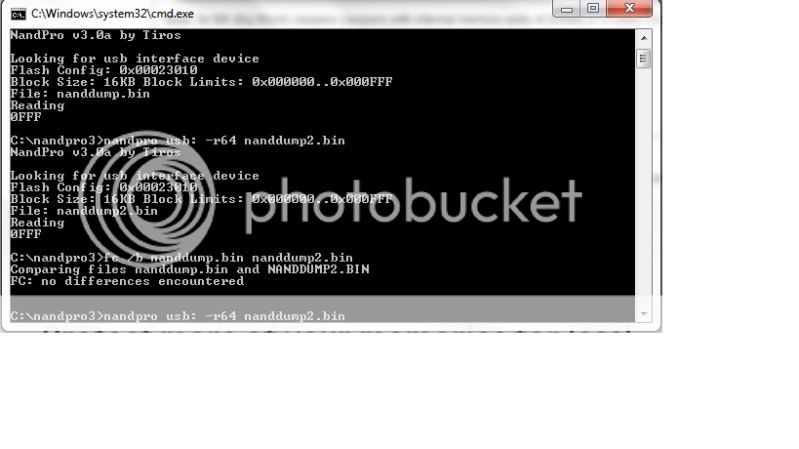

Got this:

Now, i copy my nanddump.bin to my360 from 360_multi_builder folder and run the 360 multi builder and select the correspond mb rev. and got this:

This where i pause to verify thats is ok, before i hit continue. Is this correct r no?



[xColorado880]

That's fine, a 6751 has to use a donor cb so it does it for you. Just finish the image and flash it and it. Should work



[trippy86]

yea thats fine no problem, continue with the process and it will create it for you



[coolkiddj12]

It's fine, it's just there for precautions, continue on!



[ataroreh8132]

ok thanks guy! now im installing the coolrunner and dont know where to solder the orange wire (STBY_CLK_48MHz) to the motherboard xconsoles.com gave me this parts:

---------- Post added at 17:18 ---------- Previous post was at 17:12 ----------

I'm just trying to recover my lost DVD key?



[viper0831]

http://team-xecuter.com/forums/showthread.php?t=74689



[ataroreh8132]

Dag, I fxxx up !

My purpose was to recover my DVD key but as soon i saw my cpu/ dvd key and copy onto a notepad i turn off the xbox and desolder the QSB's and wire and then proceed with JF and flash the dvd key but when i power on the xbox, i got only black screen like there no signal into my tv? Can someone tell me what i have to do? I just need this RGH to recover my lost dvd key?



[TilVl]

You need to reflash your original nand

Sent from my SGH-T839 using Tapatalk



[KhaineGB]

You need to put your original NAND back.

Edit: Dang! TilVl was slightly faster than me!



[ataroreh8132]

Ok, how do i that and where should i start?



[KhaineGB]

Put your QSB's back in, connect your NAND-X and use nandpro to write the NAND back to the motherboard.

The command should be nandpro usb: +w64 nanddump.bin



[viper0831]

Put your QSB's back in, connect your NAND-X and use nandpro to write the NAND back to the motherboard.

The command should be nandpro usb: +w64 nanddump.bin

The correct command to write the original nand back is:

nandpro usb: -w64 nanddump.bin



[ataroreh8132]

So, open cmd then type nandpro usb: +w64 nanddump.bin?



[viper0831]

open cmd in nandpro folder then type: nandpro usb: -w64 nanddump.bin



[ataroreh8132]

but im writting back the nand, should it be +w64?



[ataroreh8132]

open cmd in nandpro folder then type: nandpro usb: -w64 nanddump.bin

ok, got it



[BL4K3Y]

For future reference, the +w64 switch is for writing the XeLL (ECC) image to your console's NAND.



[ataroreh8132]

open cmd in nandpro folder then type: nandpro usb: -w64 nanddump.bin

Do i have to write the nand twice like read the nand to have a matching dump?

---------- Post added at 14:35 ---------- Previous post was at 14:27 ----------

For future reference, the +w64 switch is for writing the XeLL (ECC) image to your console's NAND.

Do i have to write the nand twice like read the nand to have a matching dump?



[esbmaepo]

Do i have to write the nand twice like read the nand to have a matching dump?

---------- Post added at 14:35 ---------- Previous post was at 14:27 ----------



Do i have to write the nand twice like read the nand to have a matching dump?

No once is enough



[ataroreh8132]

Can someone give me a diagram of the Nand-x to CoolRunner Cable port, i accidently pull the ground wire instead of the port and now i don't know where it suppose to go to?

:facepalm:
