Im getting black screen on tv solid green Light on xbox jtag. how can I fix this? it boots into xell with eject but cant boot into dash. its an xenon.
Help..solid green light jtag.
- Thread starter playingmax
- Start date
The original NAND image from which you made the freeBOOT image probably had bad block(s) in it, right? If do, try remapping the image and see if it works after that.
Last edited:
Martin C
VIP Member
how would I remapp image?
freeboot is installed on it. I belive marshamods used jtag tool
rdubbs007
VIP Member
This application may or may not work as it was designed to be used with zeropaired XBR images. Instead, you should try XNand Healer GUI v0.6. See if it works for you.
cant redump the nand. dont have the nandx installed.
"marshamods" did my jtag without the dvd drive. once I received it I hooked up the drive. could that be the problem?
"marshamods" did my jtag without the dvd drive. once I received it I hooked up the drive. could that be the problem?
Last edited:
yes it will be the problem connect the drive and redump the nand and in the jtag tool make sure it says you have a dvd connected theres a tab with the option in. MM will have put the option for no drive hence its not working with the drive.
Also do a quick queck remove dvd does it work?
Also do a quick queck remove dvd does it work?
J2G
VIP Member
Take out the drive and try boot it if it was running fine before see does it boot if it doesn't then i don't think its the nand it looks like its on its way to the GPU going but not quite there yet to give you and error code, black screen and one green light i'v had a few 360s this way did a reflow on the GPU and it sorted it just a guess seen as it was running fine when you got it.

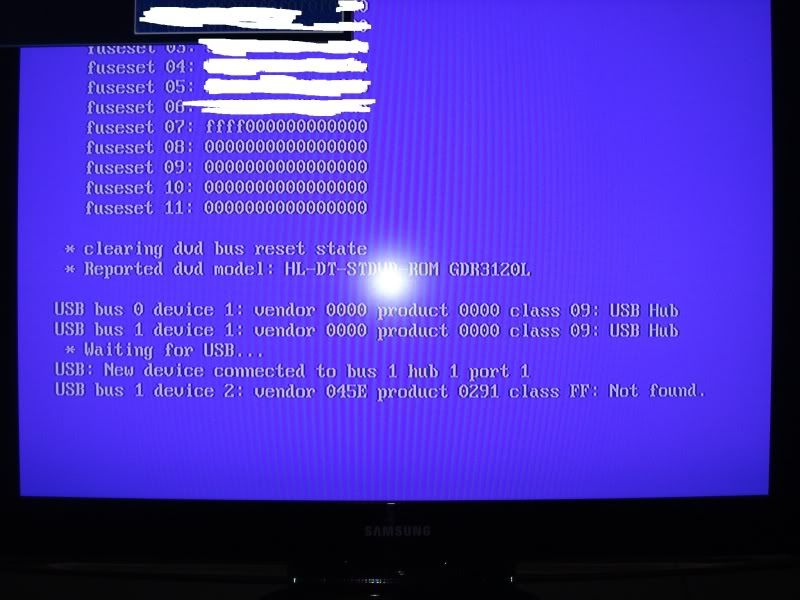

xbox still wont boot w/ drive but when I start w/ eject I get xell here is a pic what can i do to fix?
when you start with eject it boots into xell
Freeboots on it. Press power button or controller button to start.
Freeboots on it. Press power button or controller button to start.
come again? when ever i start up the xbox w/ the power button all I get is a black screen and solid green light.when you start with eject it boots into xell
xbox still wont boot w/ drive but when I start w/ eject I get xell here is a pic what can i do to fix?
You original NAND image probably had bad block(s) in it. Try remapping the bad blocks and see if the freeBOOT image then made works or not.
- Jun 4, 2010
- 3,080
- 0
Just for the record, if freeboot was compiled with no DVD drive option it doesn't matter. It still should boot into freeboot whether a DVD drive is attached or not. Tested and trialed before. So this won't be the issue.
i had this problem with 2 xenons, I was told to recompile freeboot and try a fresh set of diodes and it worked Good luck
so what your telling me is that marshamods [email protected]'d me over? since he told me it worked b4 shipping?
BGAMods
VIP Member
have a word with marsha and let him explain or at least give him the chance to sort it for you. hes an experienced member and wouldnt deliberately f**k anyone over. ive known him a long time now and hes a decent guy.
Last edited:
that question should surely be aimed at the modder, not spewed into this forum, that just makes marsh look like a [email protected], not nice at all matey
