Help With Falcon RGH 1

[N41L-B0MB]

Hey i have a Falcon Motherboard on dash 14699 CB 5771 that i am trying to boot into xell with coolrunner rev c , i am not sure if i was following an old tutorial or not but after programming the rev c the guide said to create ecc and i was unable to do so it either said failed or it was greyed out so i searched the forums and someone said you dont need to create ecc just use the one in the common folder so i loaded the FALCON.ecc into the source file and flashed ecc with file in common folder and i have it set to dash 14699, i plug it in and the red light comes on and the green light is flashing but doesnt boot into xell, i have checked my wiring and re soldered 3 times & also i tried the white cable it came with and switch it to the blue and tried both points same results.



[N.E.Modz]

Hey i have a Falcon Motherboard on dash 14699 CB 5771 that i am trying to boot into xell with coolrunner rev c , i am not sure if i was following an old tutorial or not but after programming the rev c the guide said to create ecc and i was unable to do so it either said failed or it was greyed out so i searched the forums and someone said you dont need to create ecc just use the one in the common folder so i loaded the FALCON.ecc into the source file and flashed ecc with file in common folder and i have it set to dash 14699, i plug it in and the red light comes on and the green light is flashing but doesnt boot into xell, i have checked my wiring and re soldered 3 times i can post pics if needed also i tried the white cable it came with and switch it to the blue and tried both points same results

your gonna have to fill out the rgh template mate (incl pics of your install). find it here: http://team-xecuter.com/forums/showthread.php?t=96474



dale



[N41L-B0MB]

ok do i just fill it out here or where do i send it?

TX Product(s) used: NAND-X, Coolrunner Rev C
Console Type: Falcon
NAND size: 16/256/512/4GB
Dashboard version: 2.0.14699
CB version: 5771
Screenshot of NAND details from J-Runner:
(attach an image to your post)
J-Runner log:

===================================================
Tuesday, August 05, 2014 9:30:49 AM


J-Runner v0.3 Beta (1) Started






Version v0.3 Beta (4) is available for download.
Checking Files
Downloaded *xeBuild/readme.txt
Downloaded *xeBuild/launch.xex
Downloaded *xeBuild/lhelper.xex
Downloaded *xeBuild/xeBuild.exe
Downloaded *xeBuild/updserv.rar
Finished Checking Files
Downloading...


===================================================
Tuesday, August 05, 2014 9:31:12 AM


J-Runner v0.3 Beta (4) Started






Checking Files
Finished Checking Files


===================================================
Tuesday, August 05, 2014 9:41:20 AM


J-Runner v0.3 Beta (4) Started






Checking Files
Finished Checking Files
Version: 03
Flash Config: 0x01198010
01198010
Xenon, Zephyr, Opus, Falcon
CB Version: 5771
Falcon/Opus
Reading Nand to \\psf\Home\Downloads\J-Runner\output\nanddump1.bin
Reading Nand
Done!
in 2:11 min:sec


Reading Nand to \\psf\Home\Downloads\J-Runner\output\nanddump2.bin
Initializing nanddump1.bin..
Falcon/Opus
Reading Nand
RGH Selected
Nand Initialization Finished
Done!
in 2:08 min:sec


Reading Nand to \\psf\Home\Downloads\J-Runner\output\nanddump3.bin
Comparing...
Nands are the same
Reading Nand
Done!
in 2:09 min:sec


Reading Nand to \\psf\Home\Downloads\J-Runner\output\nanddump4.bin
Comparing...
Nands are the same
Reading Nand
Done!
in 2:09 min:sec


Comparing...
Nands are the same
Creating Directory \\psf\Home\Desktop\J-Runner\xeBuild\14699\bin
Downloaded *xeBuild/14699/bin/addon.idx
Downloaded *xeBuild/14699/bin/nofcrt.bin
Downloaded *xeBuild/14699/bin/nointmu.bin
Downloaded *xeBuild/14699/bin/patches_falcon.bin
Downloaded *xeBuild/14699/bin/patches_fat.bin
Downloaded *xeBuild/14699/bin/patches_jasper.bin
Downloaded *xeBuild/14699/bin/patches_trinity.bin
Downloaded *xeBuild/14699/bin/patches_xenon.bin
Downloaded *xeBuild/14699/bin/patches_zephyr.bin
Downloaded *xeBuild/14699/su20076000_00000000
Downloaded *xeBuild/14699/_glitch.ini
Downloaded *xeBuild/14699/_jtag.ini
Downloaded *xeBuild/14699/_retail.ini
Creating Directory \\psf\Home\Desktop\J-Runner\xeBuild\common
Downloaded *xeBuild/common/cba_9188.bin
Downloaded *xeBuild/common/cbb_9188.bin
Downloaded *xeBuild/common/cb_1921.bin
Downloaded *xeBuild/common/cb_1940.bin
Downloaded *xeBuild/common/cb_4558.bin
Downloaded *xeBuild/common/cb_4578.bin
Downloaded *xeBuild/common/cb_4579.bin
Downloaded *xeBuild/common/cb_5770.bin
Downloaded *xeBuild/common/cb_5771.bin
Downloaded *xeBuild/common/cb_6723.bin
Downloaded *xeBuild/common/cb_6750.bin
Downloaded *xeBuild/common/cd_1921.bin
Downloaded *xeBuild/common/cd_4558.bin
Downloaded *xeBuild/common/cd_5770.bin
Downloaded *xeBuild/common/cd_6723.bin
Downloaded *xeBuild/common/cd_8453.bin
Downloaded *xeBuild/common/cd_9452.bin
Downloaded *xeBuild/common/ce_1888.bin
Downloaded *xeBuild/common/cf_4532.bin
Downloaded *xeBuild/common/cg_4532.bin
Finished Checking Files
RGH Selected


===================================================
Tuesday, August 05, 2014 10:04:46 AM


J-Runner v0.3 Beta (4) Started




WARNING! - Your selected working directory already contains files!
You can view these files by using 'Show Working Folder' Button




Checking Files
Finished Checking Files


===================================================
Tuesday, August 05, 2014 10:06:46 AM


J-Runner v0.3 Beta (4) Started






Checking Files
Finished Checking Files
Initializing nanddump1.bin..
Falcon/Opus
RGH Selected
Nand Initialization Finished
Programming Coolrunner
\\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf
Version: 03
Flashing \\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf to CoolRunner
Input Filesize: 593E
Output Filesize: 2832
Done!




===================================================
Tuesday, August 05, 2014 10:10:20 AM


J-Runner v0.3 Beta (4) Started




Initializing nanddump1.bin..
Falcon/Opus
RGH Selected
Nand Initialization Finished


Checking Files
Finished Checking Files
* unpacking flash image, ....
Spare Data found, will remove.
Removed
* found decrypted CD
* found XeLL binary, must be linked to 0x1c000000
* we found the following parts:
SMC: 1.6
CB_A: 5771
CB_B: missing
CD (image): 8453
CD (decrypted): 8453
* this image will be valid *only* for: falcon
* patching SMC...
Patching Falcon version 1.6 SMC at offset 0x12A3
* zero-pairing...
Failed to create ecc image
* unpacking flash image, ....
Spare Data found, will remove.
Removed
* found decrypted CD
* found XeLL binary, must be linked to 0x1c000000
* we found the following parts:
SMC: 1.6
CB_A: 5771
CB_B: missing
CD (image): 8453
CD (decrypted): 8453
* this image will be valid *only* for: falcon
* patching SMC...
Patching Falcon version 1.6 SMC at offset 0x12A3
* zero-pairing...
Failed to create ecc image


===================================================
Tuesday, August 05, 2014 11:15:38 AM


J-Runner v0.3 Beta (4) Started






Checking Files
Initializing nanddump1.bin..
Falcon/Opus
RGH Selected
Nand Initialization Finished
Finished Checking Files
Comparing...
Nands are the same
* unpacking flash image, ....
Spare Data found, will remove.
Removed
* found decrypted CD
* found XeLL binary, must be linked to 0x1c000000
* we found the following parts:
SMC: 1.6
CB_A: 5771
CB_B: missing
CD (image): 8453
CD (decrypted): 8453
* this image will be valid *only* for: falcon
* patching SMC...
Patching Falcon version 1.6 SMC at offset 0x12A3
* zero-pairing...
Failed to create ecc image
Checking Console..
Device Not Found.
Can not continue
* unpacking flash image, ....
Spare Data found, will remove.
Removed
* found decrypted CD
* found XeLL binary, must be linked to 0x1c000000
* we found the following parts:
SMC: 1.6
CB_A: 5771
CB_B: missing
CD (image): 8453
CD (decrypted): 8453
* this image will be valid *only* for: falcon
* patching SMC...
Patching Falcon version 1.6 SMC at offset 0x12A3
* zero-pairing...
Failed to create ecc image
Wrong cpukey
* unpacking flash image, ....
Spare Data found, will remove.
Removed
* found decrypted CD
* found XeLL binary, must be linked to 0x1c000000
* we found the following parts:
SMC: 1.6
CB_A: 5771
CB_B: missing
CD (image): 8453
CD (decrypted): 8453
* this image will be valid *only* for: falcon
* patching SMC...
Patching Falcon version 1.6 SMC at offset 0x12A3
* zero-pairing...
Failed to create ecc image
* unpacking flash image, ....
Spare Data found, will remove.
Removed
* found decrypted CD
* found XeLL binary, must be linked to 0x1c000000
* we found the following parts:
SMC: 1.6
CB_A: 5771
CB_B: missing
CD (image): 8453
CD (decrypted): 8453
* this image will be valid *only* for: falcon
* patching SMC...
Patching Falcon version 1.6 SMC at offset 0x12A3
* zero-pairing...
Failed to create ecc image


===================================================
Tuesday, August 05, 2014 11:26:38 AM


J-Runner v0.3 Beta (4) Started




Initializing nanddump1.bin..
Falcon/Opus
RGH Selected
Nand Initialization Finished


Checking Files
Finished Checking Files
You need an .ecc image
Falcon Manually Selected
Device Not Found.
Device Not Found.


===================================================
Tuesday, August 05, 2014 11:34:45 AM


J-Runner v0.3 Beta (4) Started






Checking Files
Finished Checking Files
RGH Selected
Falcon Manually Selected
Falcon Manually Selected
Version: 03
Flash Config: 0x01198010
Writing Nand
FALCON.ecc
Done!
in 0:09 min:sec


Initializing nanddump1.bin..
Falcon/Opus
Nand Initialization Finished
Version: 03
Flash Config: 0x01198010
Writing Nand
nanddump1.bin
Done!
in 2:03 min:sec


Device Not Found.


===================================================
Tuesday, August 05, 2014 6:07:23 PM


J-Runner v0.3 Beta (4) Started






Checking Files
Finished Checking Files
Initializing cb_5771.bin..
Header is wrong..
Falcon Manually Selected
Version: 03
Flash Config: 0x00000000
Can not Continue
Version: 03
Flash Config: 0x00000000
Can not Continue
Version: 03
Flash Config: 0x00000000
Can not Continue
Initializing nanddump1.bin..
Falcon/Opus
RGH Selected
Nand Initialization Finished
* unpacking flash image, ....
Spare Data found, will remove.
Removed
* found decrypted CD
* found XeLL binary, must be linked to 0x1c000000
* we found the following parts:
SMC: 1.6
CB_A: 5771
CB_B: missing
CD (image): 8453
CD (decrypted): 8453
* this image will be valid *only* for: falcon
* patching SMC...
Patching Falcon version 1.6 SMC at offset 0x12A3
* zero-pairing...
Failed to create ecc image
* unpacking flash image, ....
Spare Data found, will remove.
Removed
* found decrypted CD
* found XeLL binary, must be linked to 0x1c000000
* we found the following parts:
SMC: 1.6
CB_A: 5771
CB_B: missing
CD (image): 8453
CD (decrypted): 8453
* this image will be valid *only* for: falcon
* patching SMC...
Patching Falcon version 1.6 SMC at offset 0x12A3
* zero-pairing...
Failed to create ecc image
* unpacking flash image, ....
Spare Data found, will remove.
Removed
* found decrypted CD
* found XeLL binary, must be linked to 0x1c000000
* we found the following parts:
SMC: 1.6
CB_A: 5771
CB_B: missing
CD (image): 8453
CD (decrypted): 8453
* this image will be valid *only* for: falcon
* patching SMC...
Patching Falcon version 1.6 SMC at offset 0x12A3
* zero-pairing...
Failed to create ecc image
Programming Coolrunner
\\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf
Version: 03
Flashing \\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf to CoolRunner
Input Filesize: 593E
Output Filesize: 2832
Failed with 0x0002 status!


Programming Coolrunner
\\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf
Version: 03
Flashing \\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf to CoolRunner
Input Filesize: 593E
Output Filesize: 2832
Done!


Falcon Manually Selected
Programming Coolrunner
\\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf
Version: 03
Flashing \\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf to CoolRunner
Input Filesize: 593E
Output Filesize: 2832
Done!




===================================================
Tuesday, August 05, 2014 6:15:41 PM


J-Runner v0.3 Beta (4) Started






Checking Files
Finished Checking Files
Initializing nanddump1.bin..
Falcon/Opus
RGH Selected
Nand Initialization Finished
Falcon Manually Selected
Version: 03
Flash Config: 0x00000000
Can not Continue
Version: 03
Flash Config: 0x00000000
Can not Continue
Version: 03
Flash Config: 0x00000000
Can not Continue
Initializing nanddump1.bin..
Falcon/Opus
Nand Initialization Finished
Version: 03
Flash Config: 0x00000000
Can not Continue
Version: 03
Flash Config: 0x00000000
Can not Continue
Version: 03
Flash Config: 0x00000000
Can not Continue
Version: 03
Flash Config: 0x00000000
Can not Continue
Version: 03
Flash Config: 0x00000000
Can not Continue
Version: 03
Flash Config: 0x00000000
Can not Continue


===================================================
Tuesday, August 05, 2014 6:25:45 PM


J-Runner v0.3 Beta (4) Started




Version: 03
Flash Config: 0x00000000
Can not Continue


Checking Files
Finished Checking Files
Version: 03
Flash Config: 0x00000000
Can not Continue
Initializing nanddump1.bin..
Falcon/Opus
RGH Selected
Nand Initialization Finished
Creating Directory \\psf\Home\Desktop\J-Runner\xeBuild\16747\bin
Downloaded *xeBuild/16747/bin/addon.idx
Downloaded *xeBuild/16747/bin/nofcrt.bin
Downloaded *xeBuild/16747/bin/nohdd.bin
Downloaded *xeBuild/16747/bin/nohdmiwait.bin
Downloaded *xeBuild/16747/bin/nointmu.bin
Downloaded *xeBuild/16747/bin/nolan.bin
Downloaded *xeBuild/16747/bin/patches_falcon.bin
Downloaded *xeBuild/16747/bin/patches_fat.bin
Downloaded *xeBuild/16747/bin/patches_g2corona.bin
Downloaded *xeBuild/16747/bin/patches_g2falcon.bin
Downloaded *xeBuild/16747/bin/patches_g2jasper.bin
Downloaded *xeBuild/16747/bin/patches_g2mcorona.bin
Downloaded *xeBuild/16747/bin/patches_g2mtrinity.bin
Downloaded *xeBuild/16747/bin/patches_g2trinity.bin
Downloaded *xeBuild/16747/bin/patches_g2zephyr.bin
Downloaded *xeBuild/16747/bin/patches_jasper.bin
Downloaded *xeBuild/16747/bin/patches_trinity.bin
Downloaded *xeBuild/16747/bin/patches_xenon.bin
Downloaded *xeBuild/16747/bin/patches_zephyr.bin
Downloaded *xeBuild/16747/su20076000_00000000
Downloaded *xeBuild/16747/readme.txt
Downloaded *xeBuild/16747/_glitch.ini
Downloaded *xeBuild/16747/_glitch2.ini
Downloaded *xeBuild/16747/_glitch2m.ini
Downloaded *xeBuild/16747/_jtag.ini
Downloaded *xeBuild/16747/_retail.ini
Downloaded *xeBuild/common/cba_13121.bin
Downloaded *xeBuild/common/cba_13180.bin
Downloaded *xeBuild/common/cba_13181.bin
Downloaded *xeBuild/common/cba_1925.bin
Downloaded *xeBuild/common/cba_1926.bin
Downloaded *xeBuild/common/cba_1927.bin
Downloaded *xeBuild/common/cba_1928.bin
Downloaded *xeBuild/common/cba_1941.bin
Downloaded *xeBuild/common/cba_1942.bin
Downloaded *xeBuild/common/cba_4559.bin
Downloaded *xeBuild/common/cba_4560.bin
Downloaded *xeBuild/common/cba_4561.bin
Downloaded *xeBuild/common/cba_4562.bin
Downloaded *xeBuild/common/cba_4569.bin
Downloaded *xeBuild/common/cba_4574.bin
Downloaded *xeBuild/common/cba_4575.bin
Downloaded *xeBuild/common/cba_4576.bin
Downloaded *xeBuild/common/cba_4577.bin
Downloaded *xeBuild/common/cba_5772.bin
Downloaded *xeBuild/common/cba_5773.bin
Downloaded *xeBuild/common/cba_5774.bin
Downloaded *xeBuild/common/cba_6752.bin
Downloaded *xeBuild/common/cba_6753.bin
Downloaded *xeBuild/common/cba_6754.bin
Downloaded *xeBuild/common/cba_7377.bin
Downloaded *xeBuild/common/cba_7378.bin
Downloaded *xeBuild/common/cba_9188_mfg.bin
Downloaded *xeBuild/common/cba_9230.bin
Downloaded *xeBuild/common/cba_9231.bin
Downloaded *xeBuild/common/cbb_13121.bin
Downloaded *xeBuild/common/cbb_13180.bin
Downloaded *xeBuild/common/cbb_13181.bin
Downloaded *xeBuild/common/cbb_1925.bin
Downloaded *xeBuild/common/cbb_1926.bin
Downloaded *xeBuild/common/cbb_1927.bin
Downloaded *xeBuild/common/cbb_1928.bin
Downloaded *xeBuild/common/cbb_1941.bin
Downloaded *xeBuild/common/cbb_1942.bin
Downloaded *xeBuild/common/cbb_4559.bin
Downloaded *xeBuild/common/cbb_4560.bin
Downloaded *xeBuild/common/cbb_4561.bin
Downloaded *xeBuild/common/cbb_4562.bin
Downloaded *xeBuild/common/cbb_4569.bin
Downloaded *xeBuild/common/cbb_4574.bin
Downloaded *xeBuild/common/cbb_4575.bin
Downloaded *xeBuild/common/cbb_4576.bin
Downloaded *xeBuild/common/cbb_4577.bin
Downloaded *xeBuild/common/cbb_5772.bin
Downloaded *xeBuild/common/cbb_5773.bin
Downloaded *xeBuild/common/cbb_5774.bin
Downloaded *xeBuild/common/cbb_6752.bin
Downloaded *xeBuild/common/cbb_6753.bin
Downloaded *xeBuild/common/cbb_6754.bin
Downloaded *xeBuild/common/cbb_7377.bin
Downloaded *xeBuild/common/cbb_7378.bin
Downloaded *xeBuild/common/cbb_9230.bin
Downloaded *xeBuild/common/cbb_9231.bin
Downloaded *xeBuild/common/cb_1922.bin
Downloaded *xeBuild/common/cb_1923.bin
Downloaded *xeBuild/common/cb_4571.bin
Downloaded *xeBuild/common/cb_4572.bin
Downloaded *xeBuild/common/cb_7373.bin
Downloaded *xeBuild/common/cb_7375.bin
Downloaded *xeBuild/common/cd_12905.bin
Downloaded *xeBuild/common/cd_13180.bin
Downloaded *xeBuild/common/cd_13181.bin
Downloaded *xeBuild/common/cd_1925.bin
Downloaded *xeBuild/common/cd_1926.bin
Downloaded *xeBuild/common/cd_1927.bin
Downloaded *xeBuild/common/cd_1928.bin
Downloaded *xeBuild/common/cd_1941.bin
Downloaded *xeBuild/common/cd_1942.bin
Downloaded *xeBuild/common/cd_4559.bin
Downloaded *xeBuild/common/cd_4560.bin
Downloaded *xeBuild/common/cd_4561.bin
Downloaded *xeBuild/common/cd_4562.bin
Downloaded *xeBuild/common/cd_4569.bin
Downloaded *xeBuild/common/cd_4574.bin
Downloaded *xeBuild/common/cd_4575.bin
Downloaded *xeBuild/common/cd_4576.bin
Downloaded *xeBuild/common/cd_5773.bin
Downloaded *xeBuild/common/cd_5774.bin
Downloaded *xeBuild/common/cd_6753.bin
Downloaded *xeBuild/common/cd_6754.bin
Downloaded *xeBuild/common/cd_7377.bin
Downloaded *xeBuild/common/cd_7378.bin
Downloaded *xeBuild/common/cd_9230.bin
Downloaded *xeBuild/common/cd_9231.bin
Downloaded *xeBuild/common/xenonclatin.xtt
Downloaded *xeBuild/common/xenonjklatin.xtt
Downloaded *xeBuild/common/ximedic.xex
Finished Checking Files


===================================================
Tuesday, August 05, 2014 6:54:04 PM


J-Runner v0.3 Beta (4) Started






Checking Files
Finished Checking Files
Initializing nanddump1.bin..
Falcon/Opus
RGH Selected
Nand Initialization Finished
Programming Coolrunner
\\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf
Version: 03
Flashing \\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf to CoolRunner
Input Filesize: 593E
Output Filesize: 2832
Done!


Initializing nanddump1.bin..
Falcon/Opus
Nand Initialization Finished


===================================================
Tuesday, August 05, 2014 6:56:47 PM


J-Runner v0.3 Beta (4) Started






Checking Files
Finished Checking Files
Version: 03
Flash Config: 0x01198010
Error: 218 reading block 0
Error: 218 reading block 1
Error: 218 reading block 2
Error: 218 reading block 3
01198010
Xenon, Zephyr, Opus, Falcon
CB Version: 0
Version: 03
Flash Config: 0x01198010
Error: 218 reading block 0
Error: 218 reading block 1
Error: 218 reading block 2
Error: 218 reading block 3
01198010
Xenon, Zephyr, Opus, Falcon
CB Version: 0
Initializing nanddump1.bin..
Falcon/Opus
RGH Selected
Nand Initialization Finished
Version: 03
Flash Config: 0x01198010
Writing Nand
nanddump1.bin
Done!
in 2:04 min:sec


Initializing nanddump1.bin..
Falcon/Opus
Nand Initialization Finished
* unpacking flash image, ....
Spare Data found, will remove.
Removed
* found decrypted CD
* found XeLL binary, must be linked to 0x1c000000
* we found the following parts:
SMC: 1.6
CB_A: 5771
CB_B: missing
CD (image): 8453
CD (decrypted): 8453
* this image will be valid *only* for: falcon
* patching SMC...
Patching Falcon version 1.6 SMC at offset 0x12A3
* zero-pairing...
Failed to create ecc image
Falcon Manually Selected
Version: 03
Flash Config: 0x01198010
Writing Nand
FALCON.ecc
Done!
in 0:10 min:sec


Programming Coolrunner
\\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf
Version: 03
Flashing \\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf to CoolRunner
Input Filesize: 593E
Output Filesize: 2832
Done!


Programming Coolrunner
\\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf
Version: 03
Flashing \\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf to CoolRunner
Input Filesize: 593E
Output Filesize: 2832
Done!




===================================================
Tuesday, August 05, 2014 7:51:32 PM


J-Runner v0.3 Beta (4) Started






Checking Files
Finished Checking Files
Falcon Manually Selected
Version: 03
Flash Config: 0x01198010
Writing Nand
FALCON.ecc
Done!
in 0:10 min:sec


Programming Coolrunner
\\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf
Version: 03
Flashing \\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf to CoolRunner
Input Filesize: 593E
Output Filesize: 2832
Done!


Programming Coolrunner
\\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf
Version: 03
Flashing \\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf to CoolRunner
Input Filesize: 593E
Output Filesize: 2832
Done!


RGH Selected


===================================================
Wednesday, August 06, 2014 10:18:16 PM


J-Runner v0.3 Beta (4) Started






Checking Files
Finished Checking Files
Initializing nanddump1.bin..
Falcon/Opus
RGH Selected
Nand Initialization Finished
Programming Coolrunner
\\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf
Version: 03
Flashing \\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf to CoolRunner
Input Filesize: 593E
Output Filesize: 2832
Done!


Falcon Manually Selected
Version: 03
Flash Config: 0x01198010
Writing Nand
FALCON.ecc
Done!
in 0:10 min:sec


Programming Coolrunner
\\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf
Version: 03
Flashing \\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf to CoolRunner
Input Filesize: 593E
Programming Coolrunner
\\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf
Output Filesize: 2832
Done!


Falcon Manually Selected
Version: 03
Flash Config: 0x01198010
Writing Nand
FALCON.ecc
Done!
in 0:10 min:sec


Checking Console..
Device Not Found.
Can not continue
Initializing nanddump1.bin..
Falcon/Opus
Nand Initialization Finished
Retail Selected
Version: 03
Flash Config: 0x01198010
Writing Nand
nanddump1.bin
Done!
in 2:04 min:sec


RGH Selected
Initializing cb_5771.bin..
Header is wrong..
Falcon Manually Selected
You need an .ecc image
Falcon Manually Selected
Version: 03
Flash Config: 0x01198010
Writing Nand
FALCON.ecc
Done!
in 0:10 min:sec


Programming Coolrunner
\\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf
Version: 03
Flashing \\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf to CoolRunner
Input Filesize: 593E
Output Filesize: 2832
Done!


Programming Coolrunner
\\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf
Version: 03
Flashing \\psf\Home\Desktop\J-Runner\common\xsvf\falcon.xsvf to CoolRunner
Input Filesize: 593E
Output Filesize: 2832
Done!


Initializing nanddump1.bin..
Falcon/Opus
Nand Initialization Finished
* unpacking flash image, ....
Spare Data found, will remove.
Removed
* found decrypted CD
* found XeLL binary, must be linked to 0x1c000000
* we found the following parts:
SMC: 1.6
CB_A: 5771
CB_B: missing
CD (image): 8453
CD (decrypted): 8453
* this image will be valid *only* for: falcon
* patching SMC...
Patching Falcon version 1.6 SMC at offset 0x12A3
* zero-pairing...
Failed to create ecc image
* unpacking flash image, ....
Spare Data found, will remove.
Removed
* found decrypted CD
* found XeLL binary, must be linked to 0x1c000000
* we found the following parts:
SMC: 1.6
CB_A: 5771
CB_B: missing
CD (image): 8453
CD (decrypted): 8453
* this image will be valid *only* for: falcon
* patching SMC...
Patching Falcon version 1.6 SMC at offset 0x12A3
* zero-pairing...
Failed to create ecc image
Falcon Manually Selected
Version: 03
Flash Config: 0x01198010
Writing Nand
image_00000000.ecc
Done!
in 0:10 min:sec


Falcon Manually Selected
Version: 03
Flash Config: 0x01198010
Writing Nand
FALCON.ecc
Done!
in 0:10 min:sec


Unable to find the specified file.


Description of problem: Falcon Motherboard on dash 14699 CB 5771 that i am trying to boot into xell with coolrunner rev c , i am not sure if i was following an old tutorial or not but after programming the rev c the guide said to create ecc and i was unable to do so it either said failed or it was greyed out so i searched the forums and someone said you dont need to create ecc just use the one in the common folder so i loaded the FALCON.ecc into the source file and flashed ecc with file in common folder and i have it set to dash 14699, i plug it in and the red light comes on and the green light is flashing but doesnt boot into xell, i have checked my wiring and re soldered 3 times & also i tried the white cable it came with and switch it to the blue and tried both points same results.

Was the console working before you started: Y

Do you get a green debug light appear on the RGH chip every 4-5 seconds: Y

How long is the light on for each time: 5 Sec



[N.E.Modz]

personally i would have done it by the book, put nand dump in source and 2nd nand dump in load extra. compared nands and created ecc then write ecc to nand. get xell via eject button noting your cpu/dvd/key then follow the rest of tut

dale



[N41L-B0MB]

yea thats the thing everytime i tried to create ecc it would say failed i posted the log so i just used the ecc in the common folder, i am almost certain its not glitching because of software

* unpacking flash image, ....
Spare Data found, will remove.
Removed
* found decrypted CD
* found XeLL binary, must be linked to 0x1c000000
* we found the following parts:
SMC: 1.6
CB_A: 5771
CB_B: missing
CD (image): 8453
CD (decrypted): 8453
* this image will be valid *only* for: falcon
* patching SMC...
Patching Falcon version 1.6 SMC at offset 0x12A3
* zero-pairing...
Failed to create ecc image



[N.E.Modz]

yea thats the thing everytime i tried to create ecc it would say failed i posted the log so i just used the ecc in the common folder, i am almost certain its not glitching because of software

* unpacking flash image, ....
Spare Data found, will remove.
Removed
* found decrypted CD
* found XeLL binary, must be linked to 0x1c000000
* we found the following parts:
SMC: 1.6
CB_A: 5771
CB_B: missing
CD (image): 8453
CD (decrypted): 8453
* this image will be valid *only* for: falcon
* patching SMC...
Patching Falcon version 1.6 SMC at offset 0x12A3
* zero-pairing...
Failed to create ecc image

send me your nanddump via email and i'll try it. I'll pm you

dale



[N.E.Modz]

Hi,

it worked for me, Ive explained what to do in my email to u. i would also try a different xsvf file for coolrunner. try the rgh2 files, theyre in jrunner/common/xsvf/rgh2. try a,b,c,d files in turn and see if it glitches in to xell

dale



[N41L-B0MB]

send me your nanddump via email and i'll try it. I'll pm you

dale

It worked! Booted into xell right away thank you so much Dale appreciate the help!



[N.E.Modz]

It worked! Booted into xell right away thank you so much Dale appreciate the help!

pleased it worked, just hit thanks in bottom left hand corner of my post

cheers

Dale:redface:

oops you already have



[N41L-B0MB]

pleased it worked, just hit thanks in bottom left hand corner of my post

cheers

Dale:redface:

oops you already have

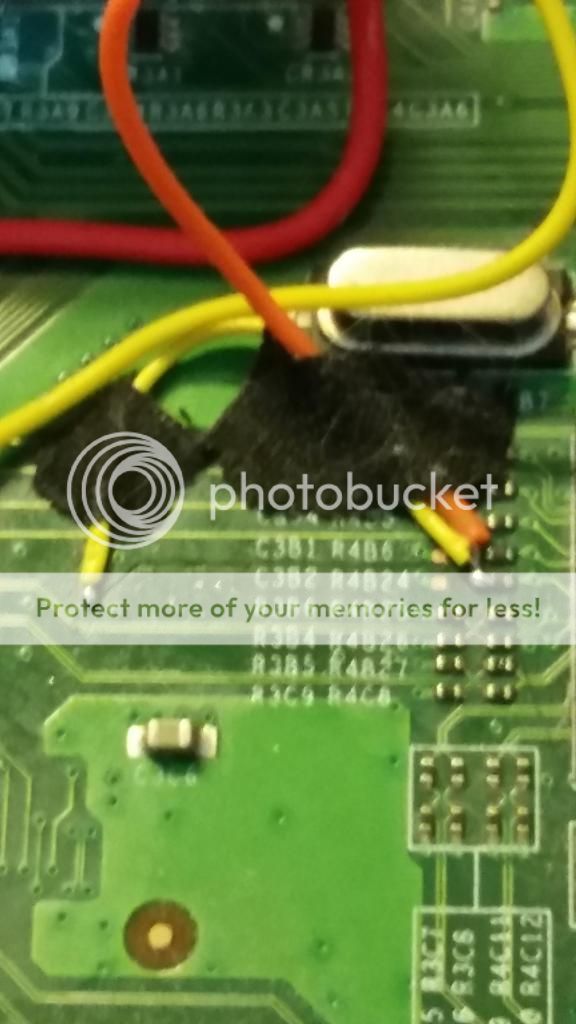

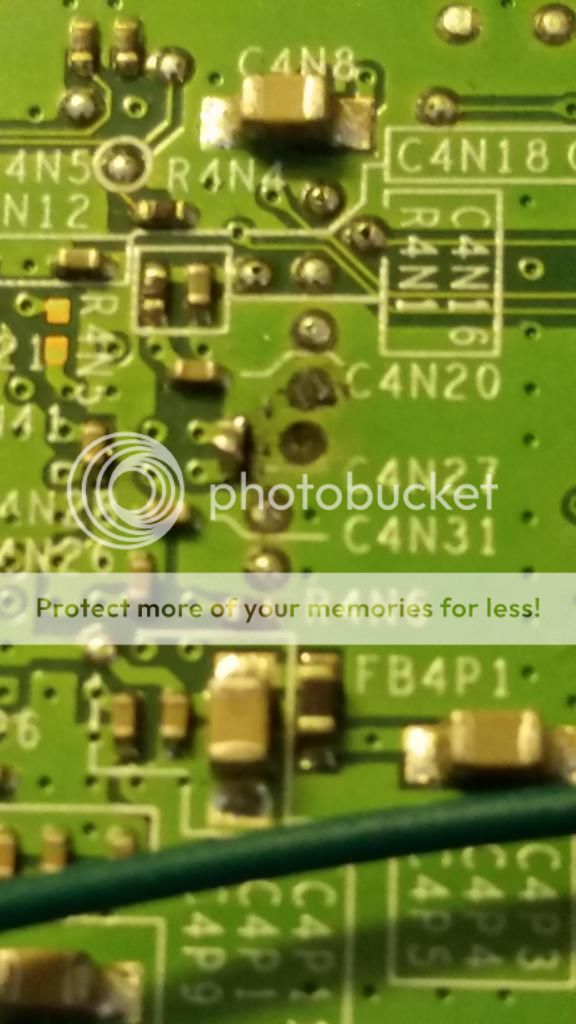

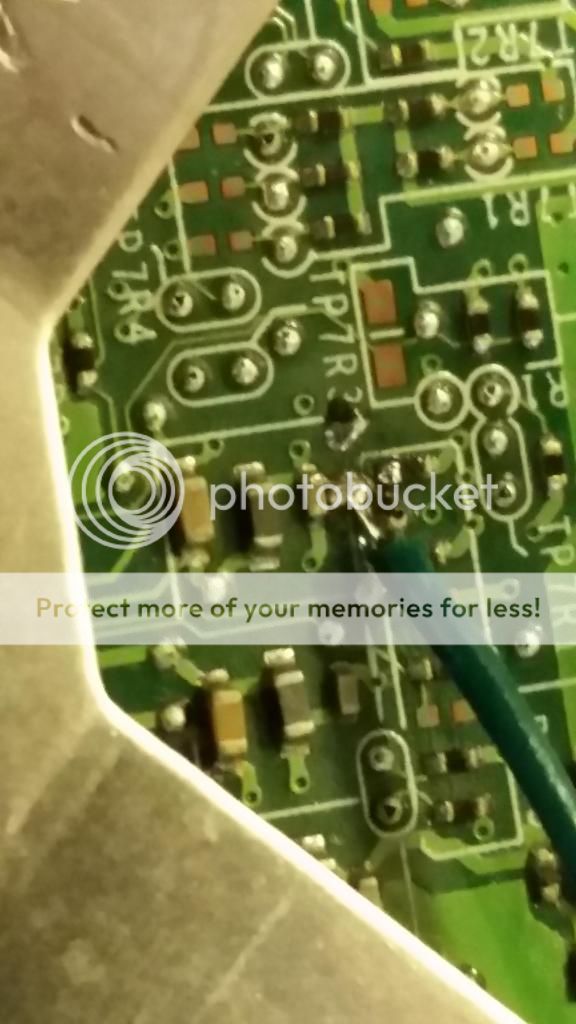

Hey everything went smooth with the rgh but as i was putting the console back together i noticed that stby_clk was loose and not booting so i went to re adjust the orange wire and the trace lifted right off. I knew my soldering skills were not the best so i took it to a pro up the street and he fixed the trace for me but the console is still unable to boot. I also tried to use alternate point for stby_clk before the trace got fixed and the pad looks a little burnt ill upload pics.

http://i1282.photobucket.com/albums/a524/SamuraiOdin/20140814_0106351_zps7fa4c332.jpg
http://i1282.photobucket.com/albums/a524/SamuraiOdin/20140814_011649_zps1cfdd4b6.jpg
http://i1282.photobucket.com/albums/a524/SamuraiOdin/20140814_011740_zps68fcca47.jpg



[BrockThunderjam]

That does not look repaired at all. Need to use a much thinner wire as well. Looks like the wire is just resting on top of the trace (cold joint no flux). Are you sure he's a pro? Doesnt look like it.



[Sasuke Uchiha]

I think its time u send it in to a actual pro.
