COOLRUNNER Jasper (256MB) Dashboard 2.0.16547.0 not booting

M

master-kingdom

Junior Member
Feb 17, 2014
10
0
How are you all members ?

I have Xbox Phat
Jasper motherboard
256MB
Dashboard 2.0.16547.0
using Windows 7 Professional x64
using X-NAND original from TX ..
also using Phat QSV from TX and original Coolrunner

I used to hack PlayStation 3 ... it is not something new
dealing with hacking ... However .. I am trying to view the DVD Drive keys
because the drive key is lost ,, and flasher by other person with Liteon (Samsung Drive)

I followed all the steps to grab and compare the nands .. i got errors .. and flashed the coolrunner RGH2 ... etc
but when i boot the xbox i got green led in coolrunner but no video only black screen ...

any help

M

master-kingdom

Junior Member
Feb 17, 2014
10
0
TX Product(s) used: original CooRunner , Phat QSV , Nand-X , J-Runner v0.3 Beta 4
Console Type: Jasper
NAND size: 256MB
Dashboard version: 16547
CB version: 360 Flash Dump Tool has stopped working

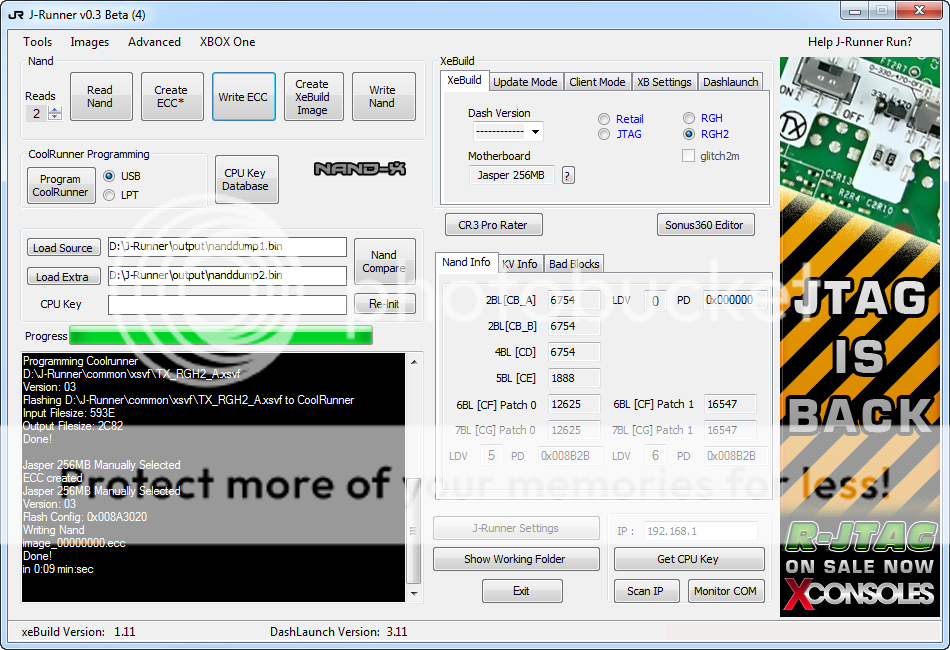

Screenshot of NAND details from J-Runner:
images linked

J-Runner log:
updflash.bin log (if applicable):
Image of Coolrunner:

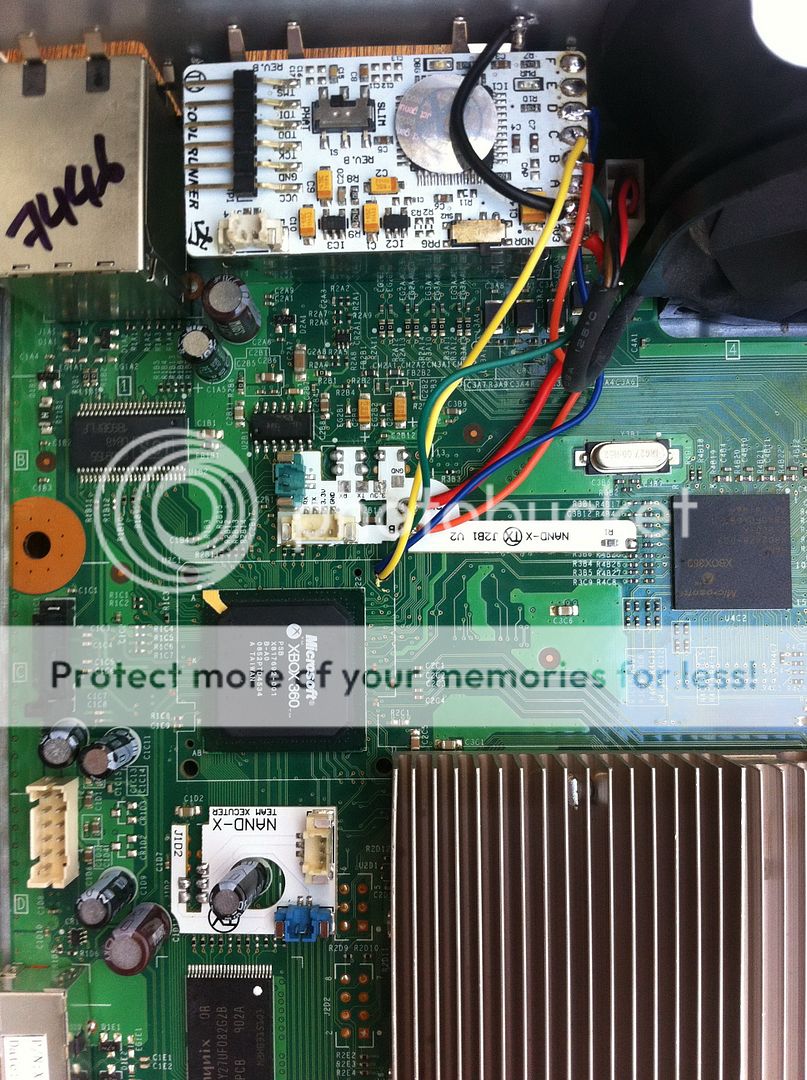

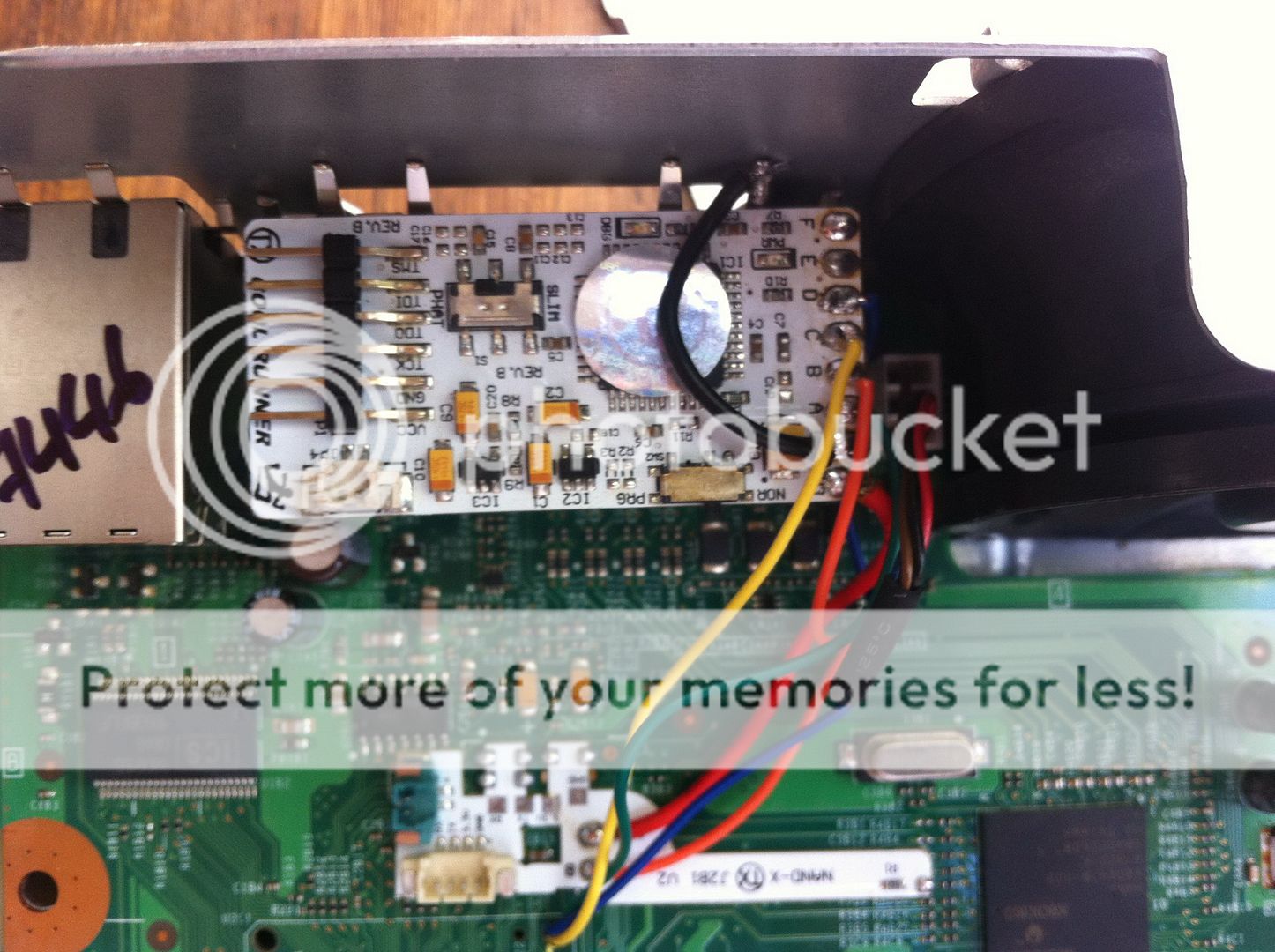

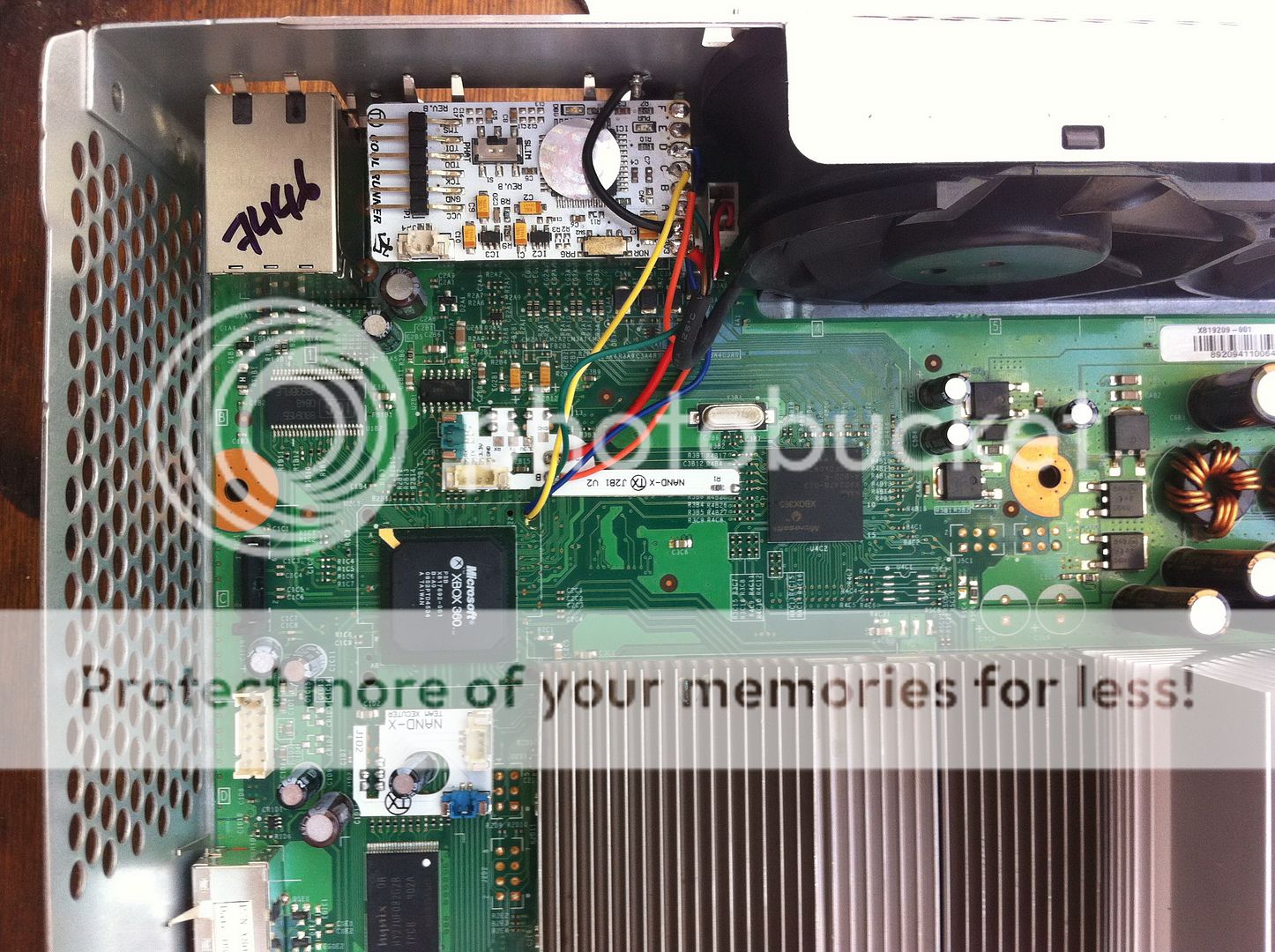

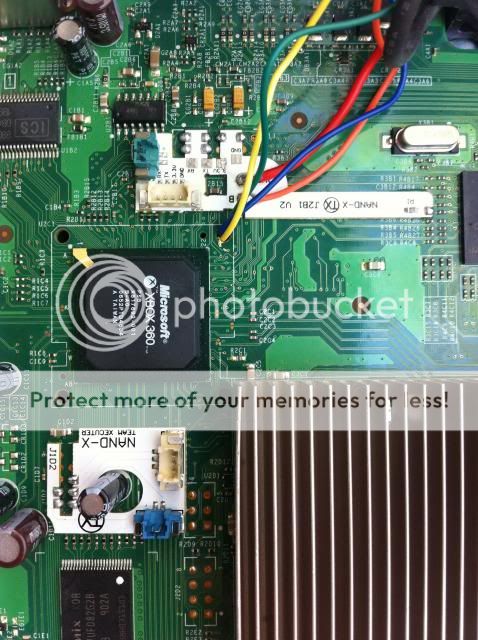

Images of close-up soldering to motherboard:
images linked

Description of problem:

Was the console working before you started: Y

Do you get a green debug light appear on the RGH chip every 4-5 seconds: Y

How long is the light on for each time: 6 secnds

http://i876.photobucket.com/albums/ab324/alzaabi/17-02-201411-57-066350.png
http://i876.photobucket.com/albums/ab324/alzaabi/IMG_2842.jpg
http://i876.photobucket.com/albums/ab324/alzaabi/IMG_2843.jpg
http://i876.photobucket.com/albums/ab324/alzaabi/IMG_2841.jpg
http://i876.photobucket.com/albums/ab324/alzaabi/IMG_2844.jpg

doc attached


Attachments

M

master-kingdom

Junior Member
Feb 17, 2014
10
0
thank for your kind help ... I will remove C8 and set coolrunner to slim and give a try .....
feedback later ...

Martin C

Martin C

VIP Member
Jan 10, 2004
35,981
0
Scotland, UK
www.team-xecuter.com
chronic1553 said:
It looks like you have it wired up for RGH1, maybe the angles are just bad
Click to expand...
I believe it's RGH2. The E & F wires go to the underside points.

It might be worth seeing a pic of those too.

Utmad

Utmad

VIP Member
Aug 15, 2010
3,304
118
Southampton, UK
master-kingdom said:
same thing no video ... I have not soldered E & F cables .. I did not find a diagram of that ..
any help ?
Click to expand...
Follow the instructions for RGH 2 from Jrunner all the diamgrams are in there

G

gavin_darkglide

VIP Member
Dec 14, 2012
2,303
118
only ignore them if they are outside the first 50 blocks. as this is where the ecc is written. also try different capatator/resistor combos on the cpu_rst line, some times these phat consoles are stubborn as far as glitch times. also try the falcon timing file.

M

master-kingdom

Junior Member
Feb 17, 2014
10
0
what the hell ! i removed everything from the xbox now still no video
i wonder why ? i did not write the nand files ?
