RGH Jasper 512mb cb6751 won't glitch

[viper0831]

I have spent well over 6 hours trying to figure this out.

I get the the coolrunner green light flashing, but no glitch. The fans do not change either.

I have reflashed the coolrunner to make sure is has the jasper flash. I have remaked and reflashed my ecc file using multibuilder 0.7.

I have resoldered my point multiple times as well. I think the soldering looks pretty good.

I have also tried with the cap and moving the wires.

Edit: I also tried moving the blue wire to the top side of the board as well. I reflashed original nand and with cr in pro it boots fine. if cr on just red light as it should. reflash ecc and cr red on green flashing, I have tried rebooting and leaving it for around 5-10 minutes at a time. Any other suggestions would be great.

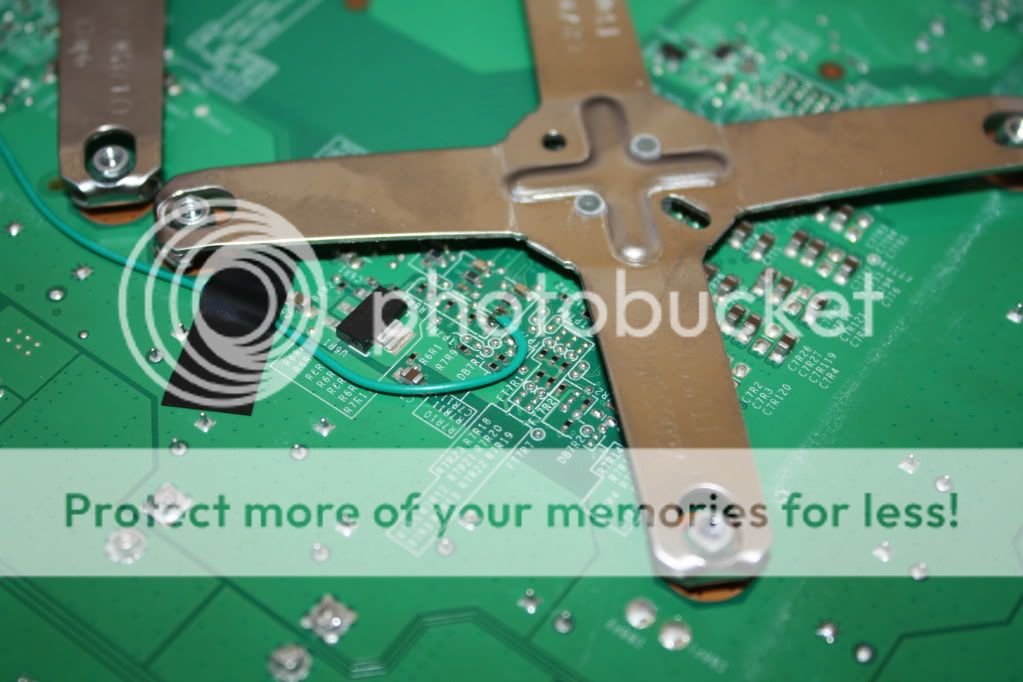

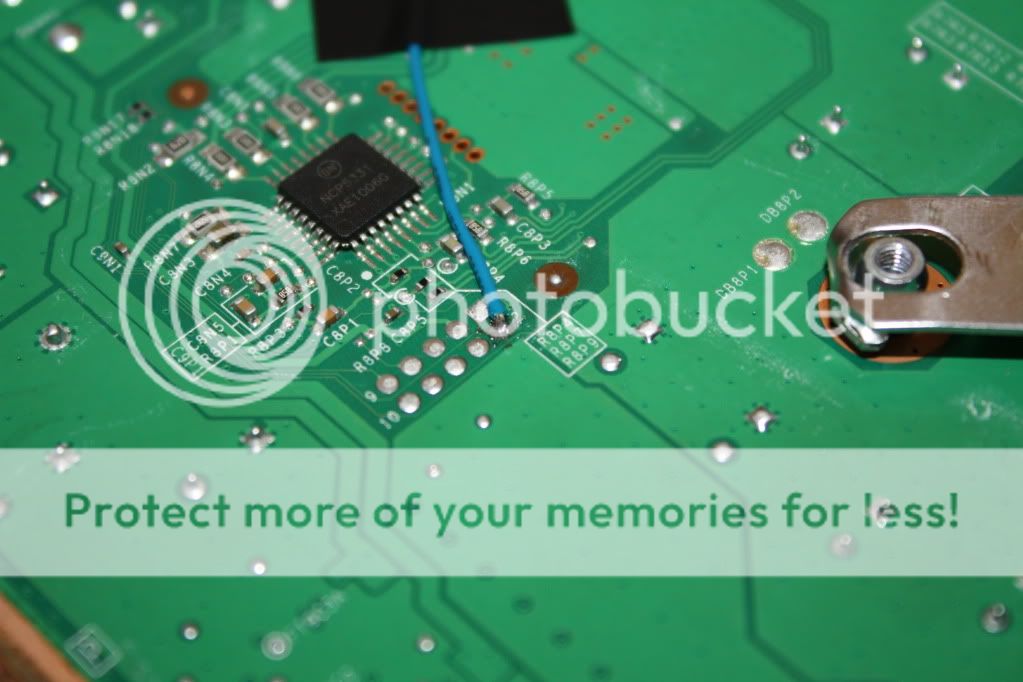

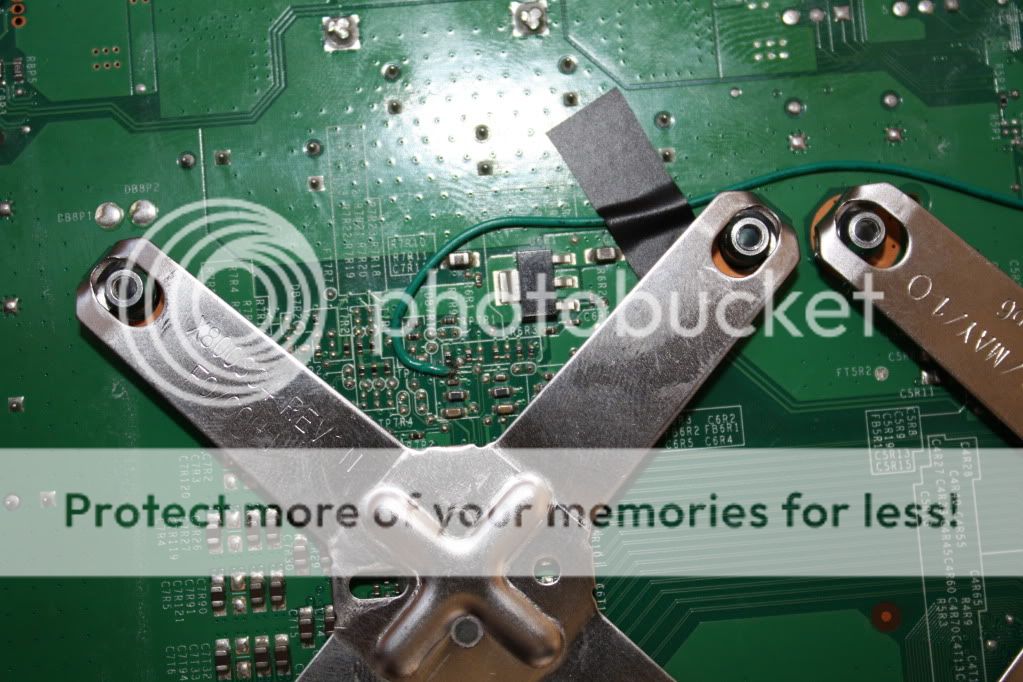

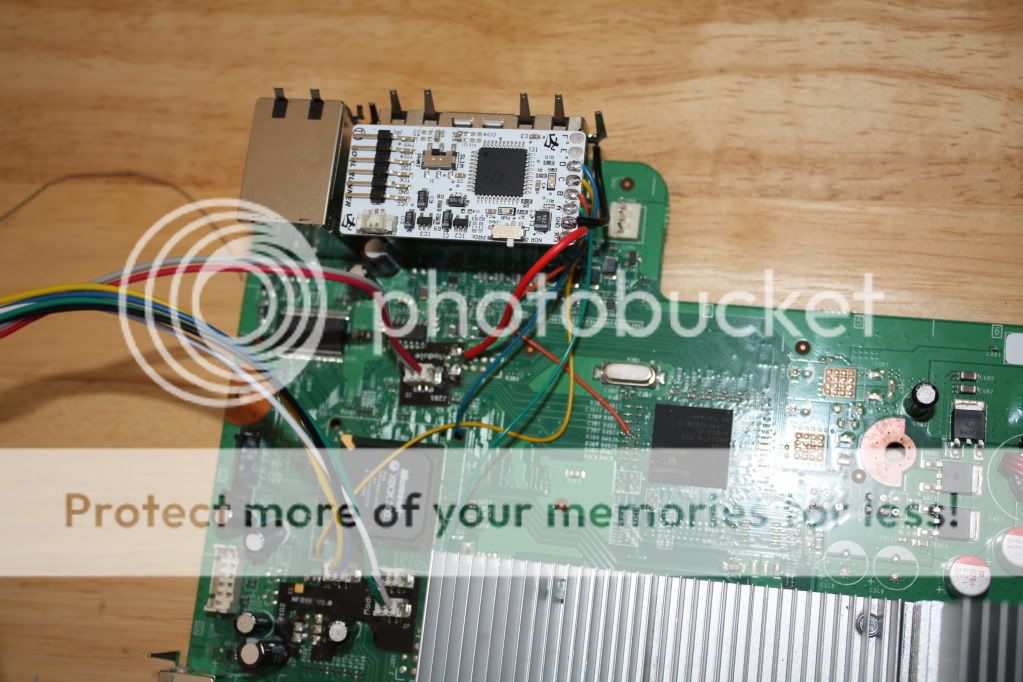

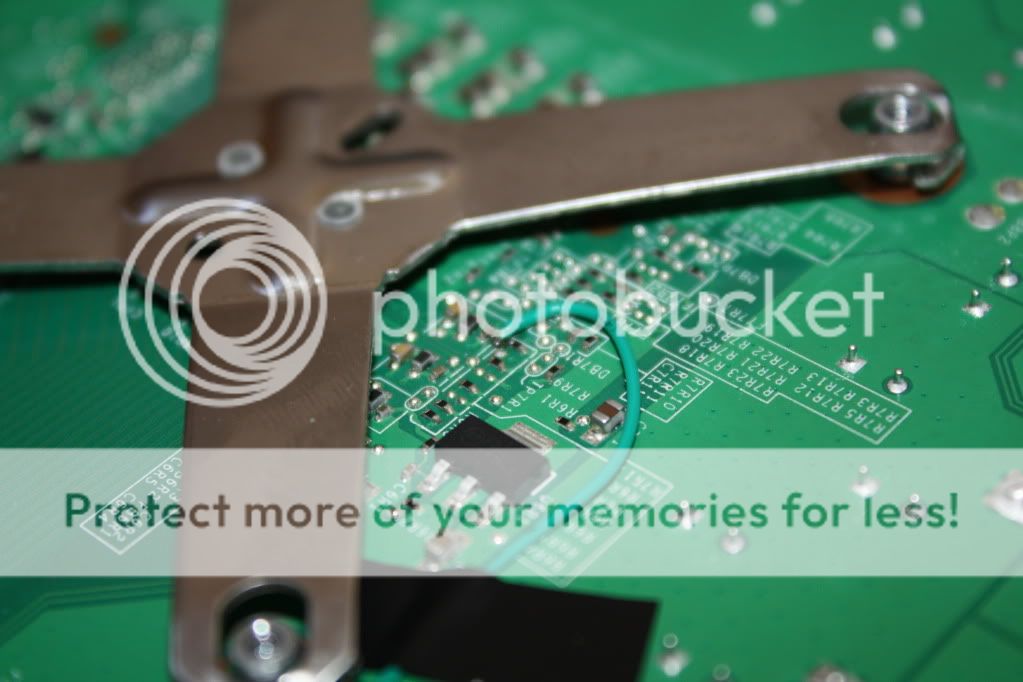

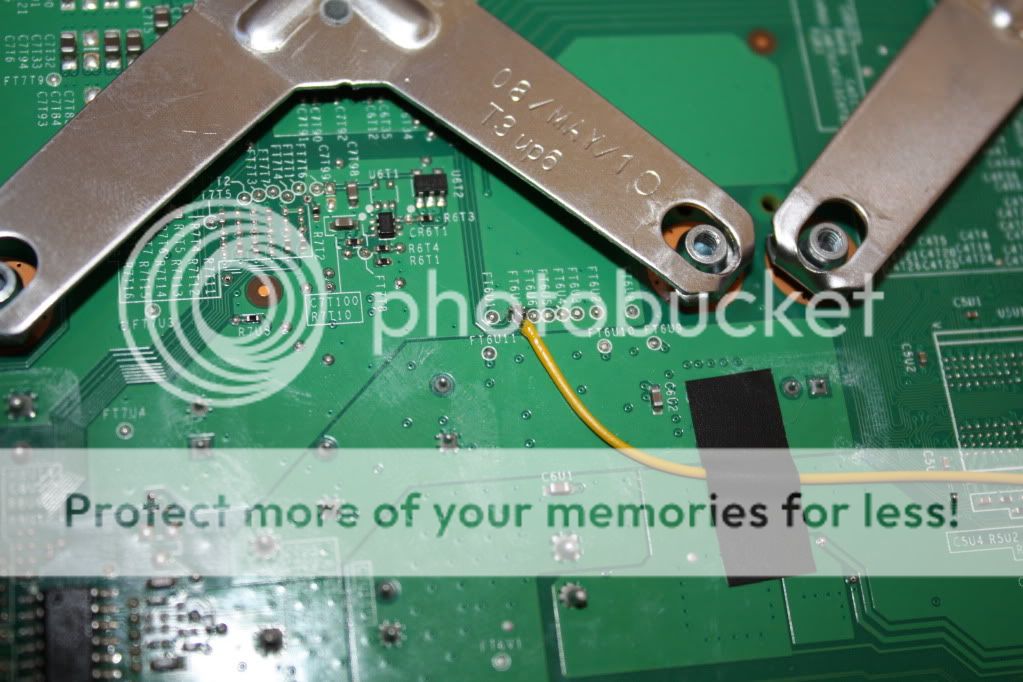

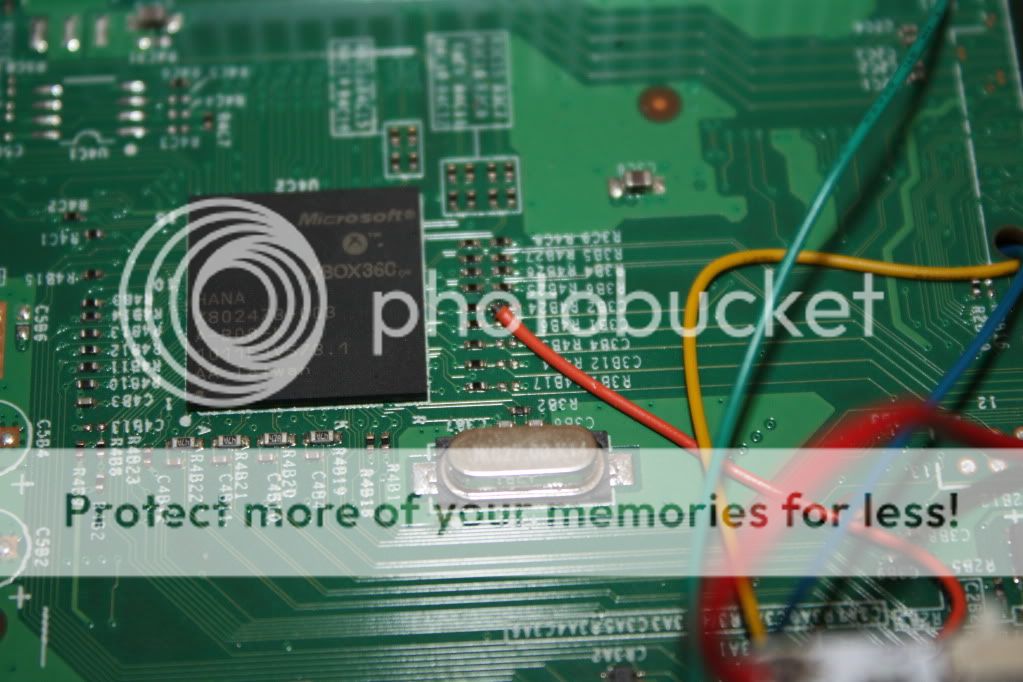

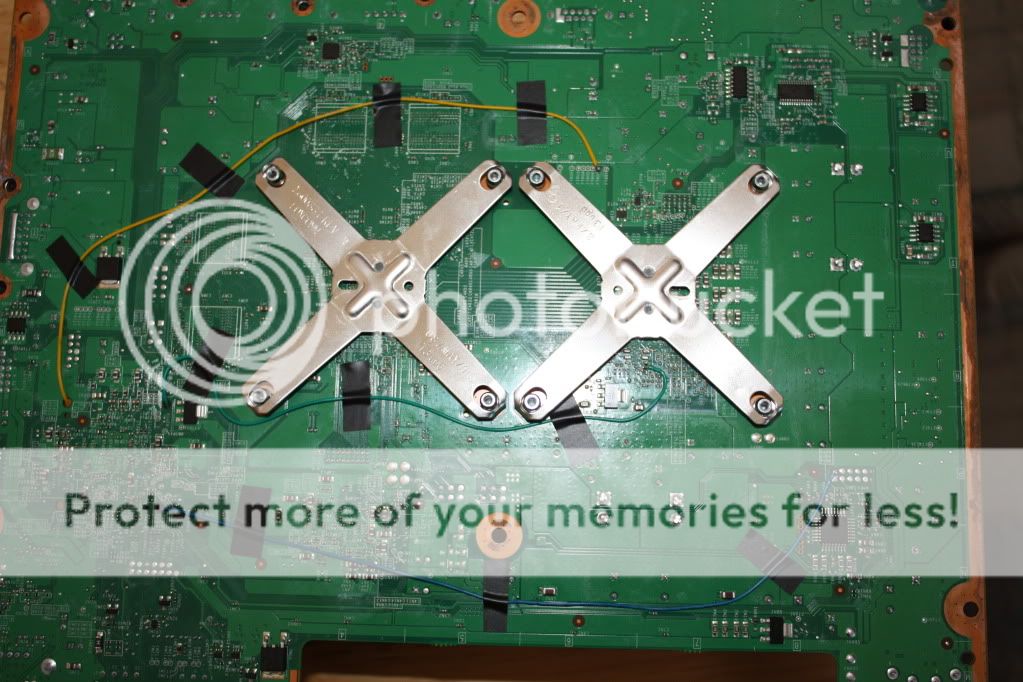

Here are the pics of my board.



[[AD]]

You need a cap on the ground and point a.

Plenty of posts stating this..

Also use some flux and tidy up them solders.

-=AD=-



[viper0831]

I took the pictures with out the cap. I have tried with the cap, it is on it now, same results.



[mespo365]

I would suggest resoldering everything, its not pretty, but not terrible either



[viper0831]

I already resoldered it all again after cleaning it all up. I also tried moving the blue wire to the top of the board. no fan speed pulse.



[viper0831]

I went through and removed everything and cleaned the board up. I resoldered everything. I get the green light flashing. Sometimes it flashes only once, sometimes more no more than 5-6 times. Then it stops flashing. Nothing on the screen though. I have tried hdmi, component and composite to two different tv's. I also reflashed my original nand to check, and it boots fine that way.



[esbmaepo]

I went through and removed everything and cleaned the board up. I resoldered everything. I get the green light flashing. Sometimes it flashes only once, sometimes more no more than 5-6 times. Then it stops flashing. Nothing on the screen though. I have tried hdmi, component and composite to two different tv's. I also reflashed my original nand to check, and it boots fine that way.

You could try with a higher capacitor value if you got one. I'm using 150nf on Jaspers.

If that doesn't help its your wire positioning or though it looks fine to me.



[ideloera]

STBY_CLK might be bridged, try working on that one.



[xColorado880]

Dont you need to use a donor image from a 6750 cb?

So I know that CB6750 is glitchable, 6751 is glitchable with a donor 6750 and 6752 is not glitchable.



[ideloera]

Dont you need to use a donor image from a 6750 cb?

I believe Colorado is right. Try and get a 6750 donor image from someone.



[oveis]

try 68nf or 100nf inline on cpu rst ( pay attention not on gnd, one leg on your wire one leg on your coolrunner pad ). Im sure it's work in your cause
post results



[viper0831]

STBY_CLK might be bridged, try working on that one.

I have moved my STBY_CLK to the bottom alt point to check that, no change.

I believe Colorado is right. Try and get a 6750 donor image from someone.

using multibuilder 0.7 I get the message that a donor nand is being used for 6751

try 68nf or 100nf inline on cpu rst ( pay attention not on gnd, one leg on your wire one leg on your coolrunner pad ). Im sure it's work in your cause
post results

I will try this out and see if it works.



[viper0831]

I tried with the cap on pad to cpu rst, green light now flashes only 1 or 2 times then stops, no xell though.



[linuxik]

Hii.
Add you capacitor 68nF to D and blue vired.
Chack all point.
Reflesh nand-x to version 3 !
Reflesh xell.

I have two BB Jasper 512 cb 6751
1. NTSC resolving !!!
2. PAL no resolving [email protected] !!!

Any idea ???



[GSIBOY]

Create your own thread and post pics of your install



[linuxik]

Sorry. I have bad camera.



[x360ccm]

I tried with the cap on pad to cpu rst, green light now flashes only 1 or 2 times then stops, no xell though.

have you tried the cap like in the pic

Another troubleshooting tip: Switch the CoolRunner to Slim and see if the times improved - this works for some :rolleyes2:

also you could try xeBuild GUI_v1.1 to build your image.



[viper0831]

I have the cap on gnd to A. I tried the inline cap on d with that as well. I just took everything off and am starting over again. I'll try xeBuild and see how that goes too.

Also I tried with it switched to slim, but the green light doesn't flash at all.

Edit: Any info on if or how to create ecc with xeBuild?



[Martin C]

Just use Multi_builder 0.7. It really couldn't be more simple.



[viper0831]

That what I figured and have been using.

I'm starting over now from scratch. I removed everything, cleaned up the board, and reflashed the orig nand. It's booting that way, so in all of this at least the board is still fine.

In the meantime I got my falcon all wired up and done in less than 15 minutes.
