Jasper 6750 won't glitch

J

jacinto8a

Noob Account
Apr 15, 2011
8
0
Hi

I have tried all configuration options and this console it won't glitch.

1. I Dumped the nand 3 times and compared each other with no bad blocks.
2. Program the coolrunner rev C with jasper.xsvf
3. Create and write ECC
4. tried to boot xell with different configutations on CR, but it won't boot xell.

I notice something different with the green debug light, it flashes every 5-6 sec. but it does it very quick, like a flash of a camera. It suppose must last about a second I think.

I Tried original and alternative point for STBY_CLK with same results.

I installed the same CR in a different Mobo and it works fine, the other console glitch normal.

I'm out of ideas, any help will be apreciate.





Programming Coolrunner
G:\RGH\J-Runner v02 (278) Core Pack\common\xsvf\jasper.xsvf
Flashing G:\RGH\J-Runner v02 (278) Core Pack\common\xsvf\jasper.xsvf to CoolRunner
Input Filesize: 593E
Output Filesize: 27F0
Done!


Exited!

Initializing Nand..
Nand Initialization Finished
* unpacking flash image, ....
ECC'ed - will unecc.
UnECC'ed
* found decrypted CD
* found XeLL binary, must be linked to 0x1c000000
* we found the following parts:
SMC: 2.3
CB_A: 6750
CB_B: missing
CD (image): 8453
CD (decrypted): 8453
* this image will be valid *only* for: jasper (CB_6750)
* patching SMC...
Patching Jasper version 2.3 SMC at offset 0x12BA
* zero-pairing...
* constructing new image...
* encrypting CB...
* encrypting CD...
* base size: 70000
* No separate recovery Xell available!
* Flash Layout:
0x0..0x1FF (0x200 bytes) Header
0x200..0xFFF (0xE00 bytes) Padding
0x1000..0x3FFF (0x3000 bytes) SMC
0x4000..0x7FFF (0x4000 bytes) Keyvault
0x8000..0x11A3F (0x9A40 bytes) CB_A 6750
0x11A40..0x17A3F (0x6000 bytes) CD 8453
0x17A40..0xBFFFF (0xA85C0 bytes) Padding
0xC0000..0xFFFFF (0x40000 bytes) Xell (backup)
0x100000..0x13FFFF (0x40000 bytes) Xell (main)
* Encoding ECC...Done!
------------- Written into output\image_00000000.ecc


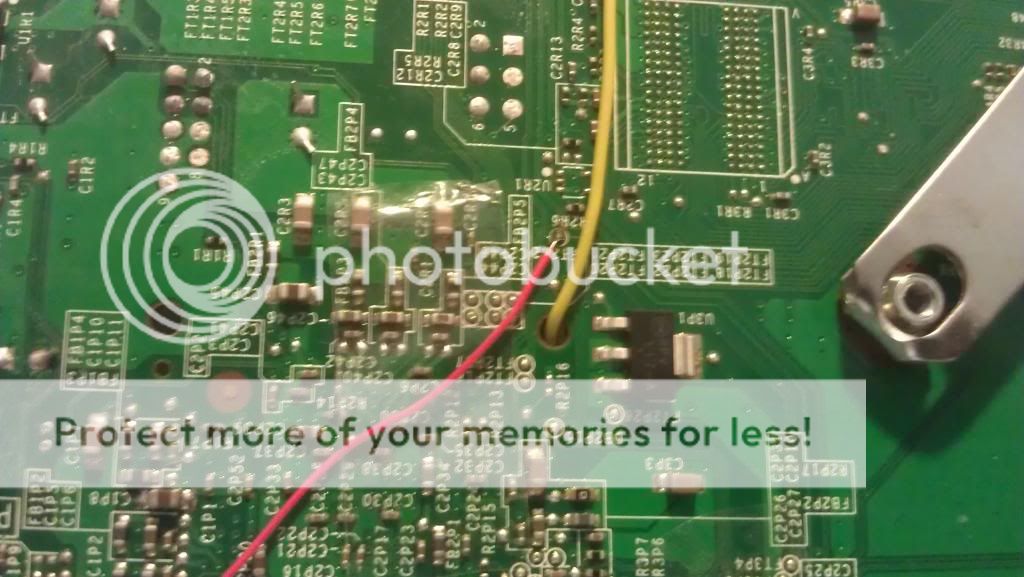

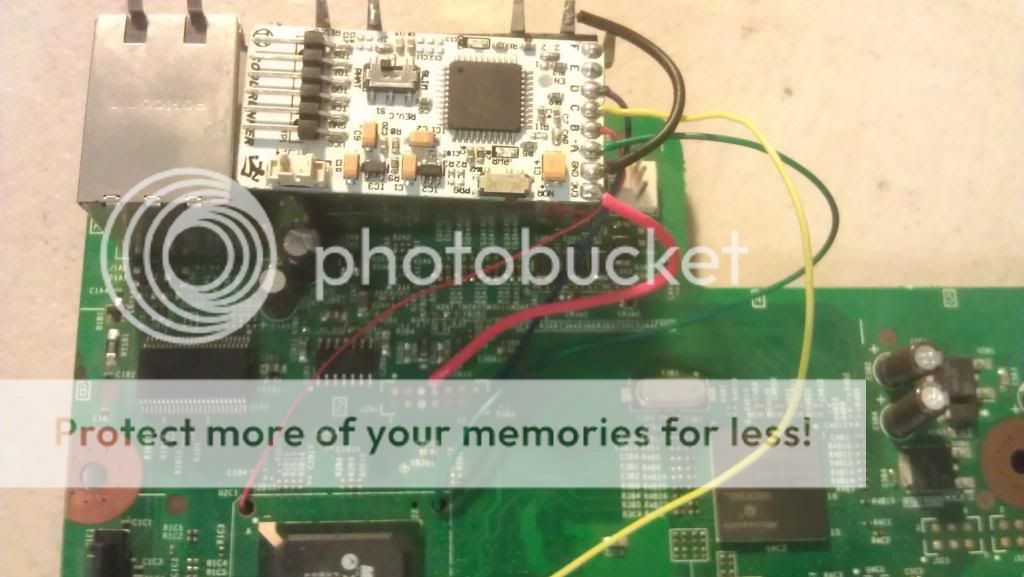

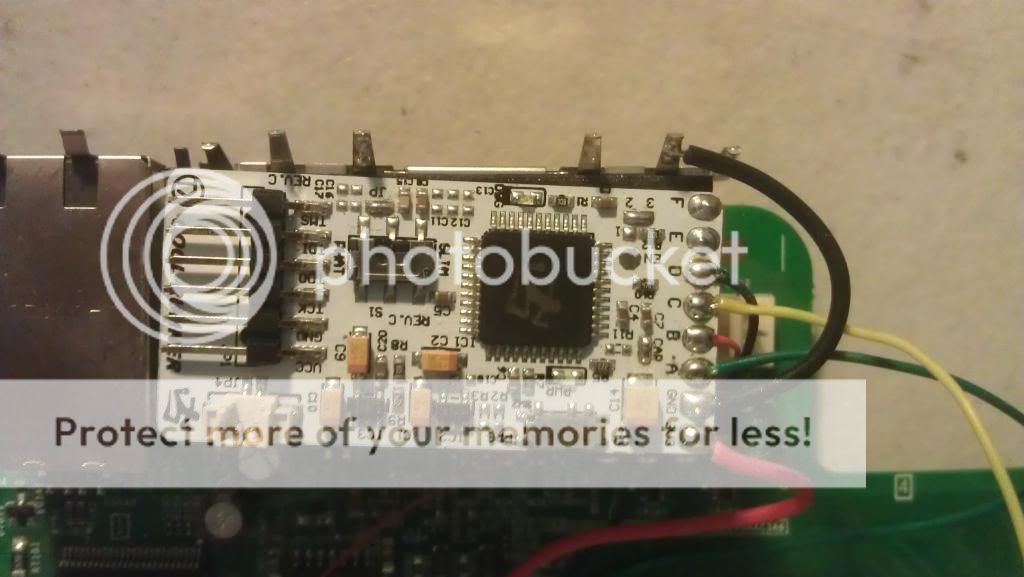

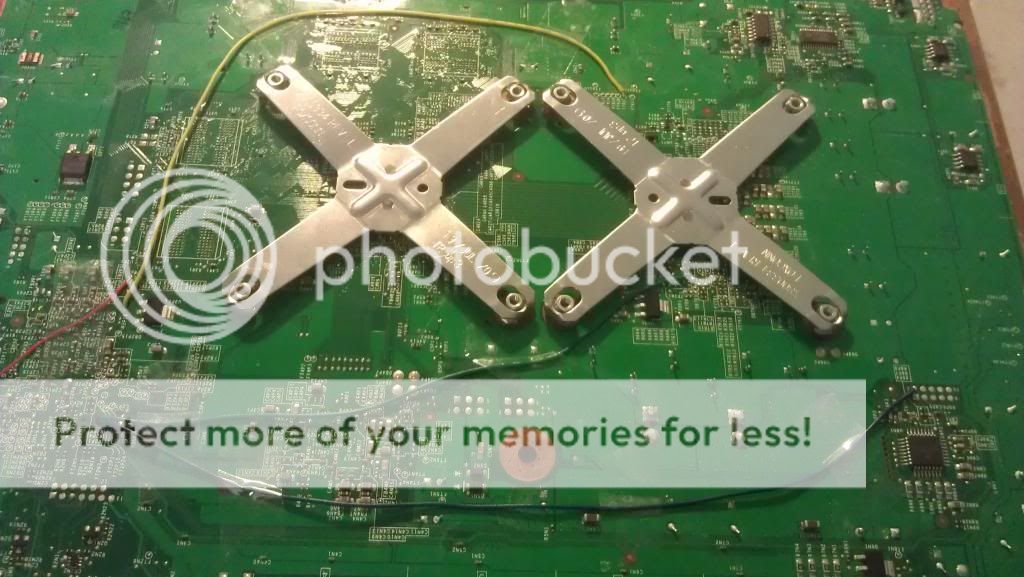

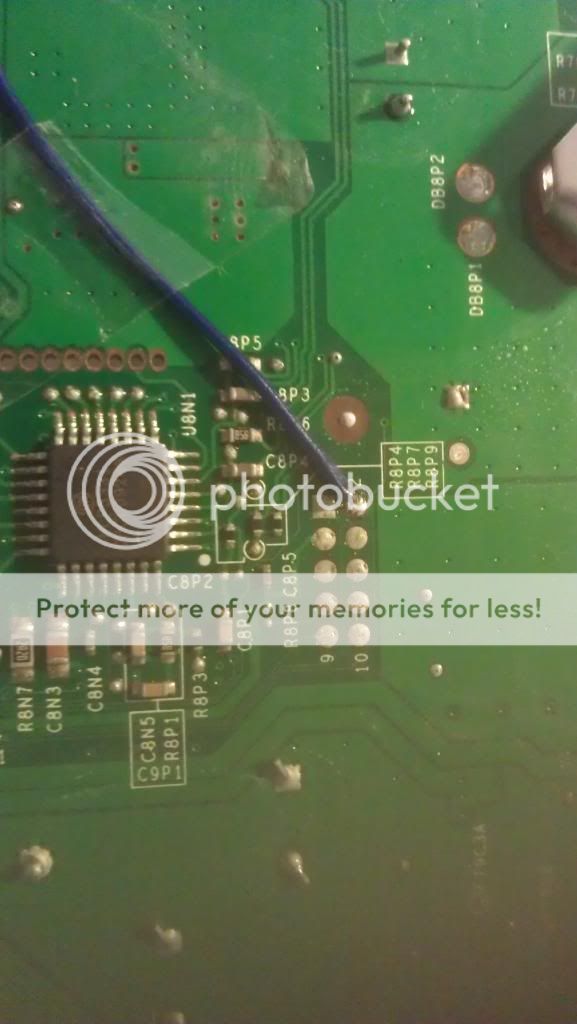

http://i419.photobucket.com/albums/pp271/jacinto8a/Jasper 6750/IMAG0087_zpse576cfa7.jpg

http://i419.photobucket.com/albums/pp271/jacinto8a/Jasper 6750/IMAG0092_zpsfcfcfba8.jpg

http://i419.photobucket.com/albums/pp271/jacinto8a/Jasper 6750/IMAG0091_zps476cdb4c.jpg

http://i419.photobucket.com/albums/pp271/jacinto8a/Jasper 6750/IMAG0089_zps445d2935.jpg

http://i419.photobucket.com/albums/pp271/jacinto8a/Jasper 6750/IMAG0088_zpsbd77ff8f.jpg


http://i419.photobucket.com/albums/pp271/jacinto8a/Jasper 6750/IMAG0085_zps011d445d.jpg

http://i419.photobucket.com/albums/pp271/jacinto8a/Jasper 6750/IMAG0083_zps51f0fe3b.jpg

http://i419.photobucket.com/albums/pp271/jacinto8a/Jasper 6750/IMAG0090_zpsd6f81f7a.jpg


Sorry for my bad english :facepalm:

Joo C

Joo C

VIP Member
Dec 2, 2011
748
48
South Africa
Your install is clean apart from the extra-length wires-I will suggest trimming the wire to correct length and also try running the blue wire from the top around the heat sink. Your JRunner log is incomplete so the question is obvious but necessary-have you written xell to your NAND? Have you tried booting your stock NAND to confirm that it works?

Manmeet

Manmeet

BANNED
Jul 31, 2009
98
0
Bangalore, India
www.meeshgames.com
Hi jacinto8a ,

u got to do some good exercise to get the jasper glitch.

1st use a 68 nf capasitor to bridge point A and ground.
2nd use 68 nf capasitor via point D..

If ur using REV c remove the Unbridged C15
Bridge the JP points
See if this helps.

Steel City Mods

Steel City Mods

VIP Member
May 30, 2012
527
0
USA
With a revc, just bridging the cap points usually works for jaspers,. rgh1 or 2?

J

jacinto8a

Noob Account
Apr 15, 2011
8
0
Yes, I wrote xell to the nand. The stock nand works fine.

Nand is clean with no bad blocks.

I tried with a extra 68nf cap on A and ground and no luck.


I tried all different combination with JP, CAP and 1-2 or 2-3.


Moved the switch to slim just to test, in this case the green light did not turned on.


Im gonna try with the cap between D and ground

J

jacinto8a

Noob Account
Apr 15, 2011
8
0
Well, I tried the cap between D and GND and have no luck.

It doesn't work moving the blue wire up too, neither with the shielded.

I think something is incompatible with this Mobo and that's the reason why the green light flashes the way it does (like a flash camera).

J

jacinto8a

Noob Account
Apr 15, 2011
8
0
I'm a nooby in this site, but I've just done my 300th last week so I think I have the skills to do this too.

Maybe it would be a installing issue, that's why I did it 3 times from the beggining, with new wires and same result.

As I said before, I used the same CR on a different xbox and glitch ok.

Any idea what else I can look ?

T

The_Butcher

Noob Account
Dec 23, 2014
8
0
jacinto8a said:
I'm a nooby in this site, but I've just done my 300th last week so I think I have the skills to do this too.

Maybe it would be a installing issue, that's why I did it 3 times from the beggining, with new wires and same result.

As I said before, I used the same CR on a different xbox and glitch ok.

Any idea what else I can look ?
Click to expand...
I was having similar issues with my Jasper until I stumbled across this thread.
I decided to change my wire pinout from the ones provided with the J runner
program, to the layout shown in your pictures except for the blue wire which I
left on top of the mb. I then decided to re-program the CR using the "glitch" option
instead of "Glitch2" that I had been previously driving myself crazy with trying dif time
settings. After re-programing it booted into xell immediately (2-3 seconds). Anyway, hope
it helps.

My CR RevC Settings: Cap Closed . 2-3 Closed . JP Closed
