So has it changed from this then ?
Max PI should not be higher than 100 and max PIF should not be higher than 4 according to the spec (ECMA-364) - Of course this is a guide and will obviously fluctuate between different types of media
Yes, but those aren't rules set in stone. I've been told here by multiple users and mods that if you have 1 spike at 8 or even 9 PIF, it's good. My PIs are always <50. Passes verify in imgburn, kprobe and installs to xbox!
so,
tested GoW3, liteon ihas 624, mkm003
settings: hyper tuning= on, online hyper tuning= on, smartburn=on, overburn= off
OPC= on, burned at 4x Still getting spike on layer break change but rest seems fine
dale:wink:
tested GoW3, liteon ihas 624, mkm003
settings: hyper tuning= on, online hyper tuning= on, smartburn=on, overburn= off
OPC= on, burned at 4x Still getting spike on layer break change but rest seems fine
dale:wink:
Here's a shot of TDK using LT max on a Liteon 324B drive. I had no errors in this test but it failed verification 50%.
Hope i didnt come across as being funny, that was'nt my intention , so is something with a PI over 100 still good to go though so long as its under 200 ?
Last burn was PI MAX 142
PI MAX 3
Last edited:
Doesn't matter. Check the 2nd image of the burn by ubergeek. You'll see a PIF spike at 9, one at 7 one at 6, and uber still calls that a perfect burn.
Last edited:
Date : 23/10/2011 20:07:22
Model : 2-2-2-0 E:ATAPI iHAS624 B GL29
Disc : DVD+R DL , [email protected] [UME Disc Ltd.]
Speed : 4x
ECC blocks sum (PI/PIF) : 8/1
Scanned range : 0 - 4267018
Sampling count : 250248
Errors : 0
PI Max : 60
PI Average : 12.55
PI Total : 392743
PIF Max : 7
PIF Average : 0.66
PIF Total : 20662
This is with Datawrite discs, hows it look as i know PIF is just over.
Model : 2-2-2-0 E:ATAPI iHAS624 B GL29
Disc : DVD+R DL , [email protected] [UME Disc Ltd.]
Speed : 4x
ECC blocks sum (PI/PIF) : 8/1
Scanned range : 0 - 4267018
Sampling count : 250248
Errors : 0
PI Max : 60
PI Average : 12.55
PI Total : 392743
PIF Max : 7
PIF Average : 0.66
PIF Total : 20662
This is with Datawrite discs, hows it look as i know PIF is just over.
Ok here is my test using aone+ gold discs burned @ 2.4x img burn verified 100% and here is the kprobe log
That's good. Just right click on the PIF chart and select, auto scale Y value. That way you'll see the actual graph instead of a blank!

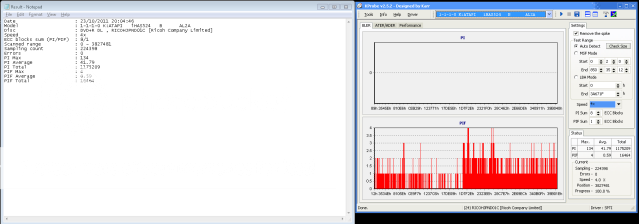

sorry cant realy see img, so here is a copy of the log
Date : 23/10/2011 20:04:46
Model : 1-1-1-0 K:ATAPI iHAS524 B AL2A
Disc : DVD+R DL , RICOHJPND01C [Ricoh Company Limited]
Speed : 4x
ECC blocks sum (PI/PIF) : 8/1
Scanned range : 0 - 3827481
Sampling count : 224398
Errors : 0
PI Max : 134
PI Average : 41.79
PI Total : 1175209
PIF Max : 4
PIF Average : 0.59
PIF Total : 16464
I'm using the same brand (Titan) and my results are turning up much worse than yours. What speed are you burning on?
Here's my results reading at 4x:
Date : 10/23/2011 11:47:19 AM
Model : 0-0-1-0 E:ATAPI iHAS124 B AL0S
Disc : DVD+R DL , CMC [email protected] [CMC Magnetics Corporation]
Speed : 4x
ECC blocks sum (PI/PIF) : 8/1
Scanned range : 0 - 4267018
Sampling count : 250458
Errors : 0
PI Max : 1673
PI Average : 190.80
PI Total : 5980727
PIF Max : 211
PIF Average : 54.96
PIF Total : 1723118
Here are my verbatim results. It doesn't seem quite right from the 50% mark. It does however verify 100% on imgburn.
Last edited:
This is really shocking to me as that media code is quite cheap and nasty, yet these numbers are really good. I'd like to see the graph image.
100% verify on imgburn means nothing with these so I wouldn't waste your time
That graph shows the second layer is pish
324 424 and 524 seem to have the best results from what i have been reading so far im cross flashing to ea and running the same tests on ea fw version
