lifte a trace , what to do now ? :(

[johannlynx]

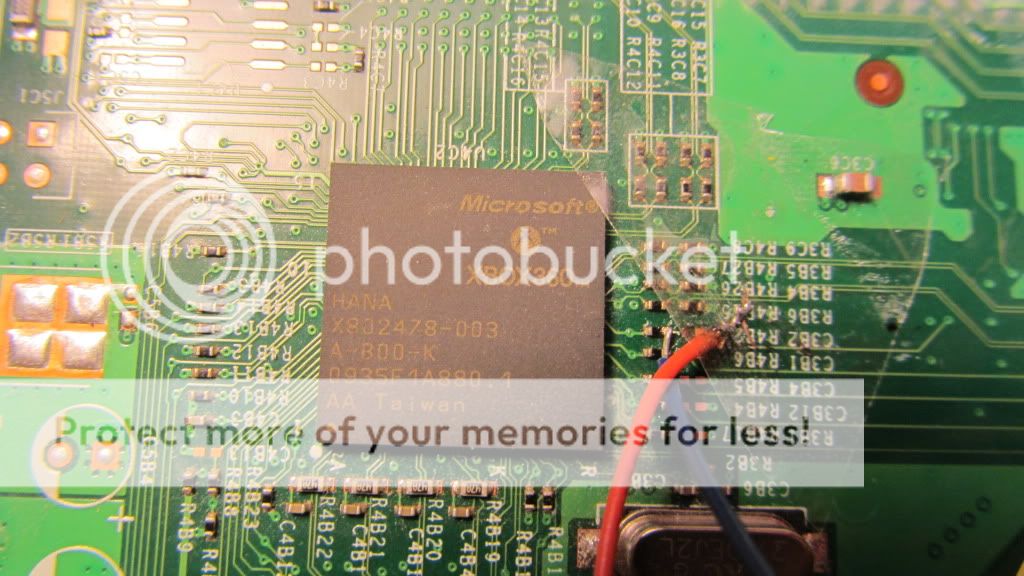

i finished soldering and by mistake i pulled the cable and lifted the trace till the red dot i made in the picture

is there something i can do ? can be fixed ?



[Coleman]

It can be fixed. Look at the how to here http://team-xecuter.com/forums/showthread.php?t=74992



[johannlynx]

i'm glad , now i'm here thinking , can i use one of the cables that come with the jrunner for the slim to do that, which would be best green, blue or yellow ?

i will do this point as i don't want to scrap if is not a must

thanks for the help

ps. when i pulled the cable the trace lifted but remained soldered to the cable, it didn't burn nor tear up, so no need to do anything to it right ?

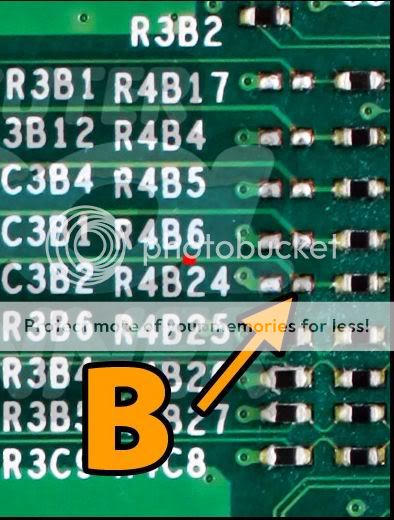

lifted trace :



[Martin C]

Unfortunately, this is where misunderstanding a repair is what causes problems.

Regardless of what point you want to solder to for STBY_CLK, you MUST repair the damage you've already done or your console won't power on.

If you feel you can't do it, get someone who can. Right now it's an easy fix.

EDIT - you still need to repair the trace. Look at the close up images in the linked post.



[johannlynx]

now i'm on trying to repair the trace but i'm not sure about something.

to scrap the trace i should scrap in the area next to the trace or over the trace ?



[mm53668]

Repair the copper line



[johannlynx]

Repair the copper line

that means i should scrap with the exacto knife over the copper line , right ?

sorry i ask again but i want to have things clear , dnt want to make things worse.



[Martin C]

if you still have a wire soldered to the trace (which is currently unattached at one side), solder a wire from the resistor next to the solder point you used (the side which should be joined to your trace) and the other end to the B pad on your coolrunner. There's plenty of room on the pad for two wires. If this works, tape down the end of the trace which is currently loose (or hot glue it). You're then done.



[johannlynx]

if you still have a wire soldered to the trace (which is currently unattached at one side), solder a wire from the resistor next to the solder point you used (the side which should be joined to your trace) and the other end to the B pad on your coolrunner. There's plenty of room on the pad for two wires. If this works, tape down the end of the trace which is currently loose (or hot glue it). You're then done.

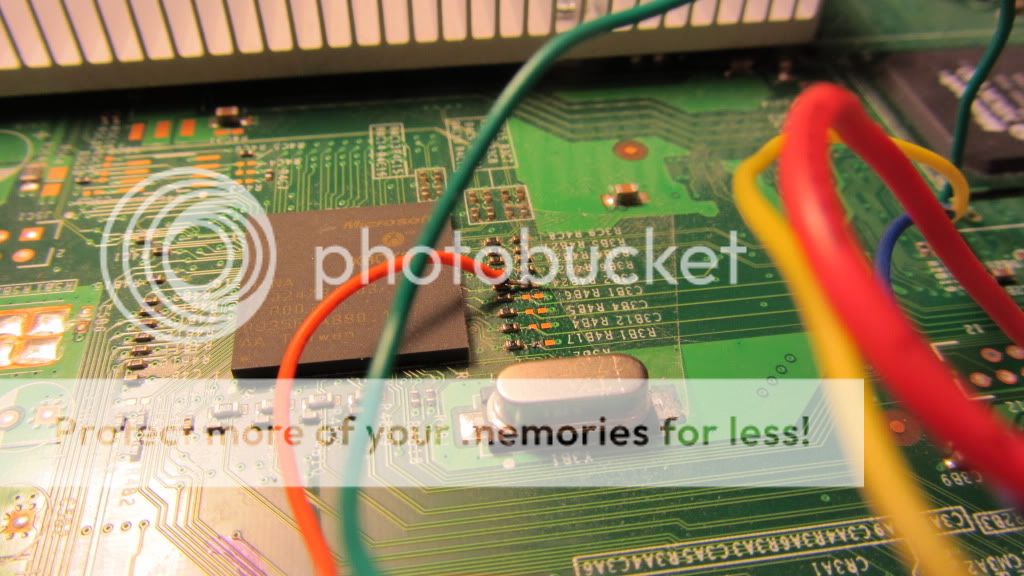

i think i'm done . how do i test if it works ?

thanks for the help



[Coleman]

Turn it on. If it powers on its fixed.



[johannlynx]

Turn it on. If it powers on its fixed.

do i have to put back everything in place or can i just put the panel that has the turn on button n try ?

thanks



[superspeed]

do i have to put back everything in place or can i put the panel that has the turn on button n try ?

thanks

Just the rf board and try seeing if it will turn on.



[johannlynx]

it powers but got red ring of dead. (3 red light )
so i guess i did it wrong , right ?



[Coleman]

What's the secondary code?



[johannlynx]

lol it was cuz i didn't plug it to the tv :facepalm:

i plugged to the tv to check the code and it works



[Dark_Riku]

i think i'm done . how do i test if it works ?

thanks for the help

You should probably take some close range pictures of the console before you try anything else. Better to be safe than sorry.



[Coleman]

Good job on the repair then! Make sure to glue or tape it.



[Martin C]

Yep, secure it down with hot glue or something, especially the trace which is partially lifted.



[johannlynx]

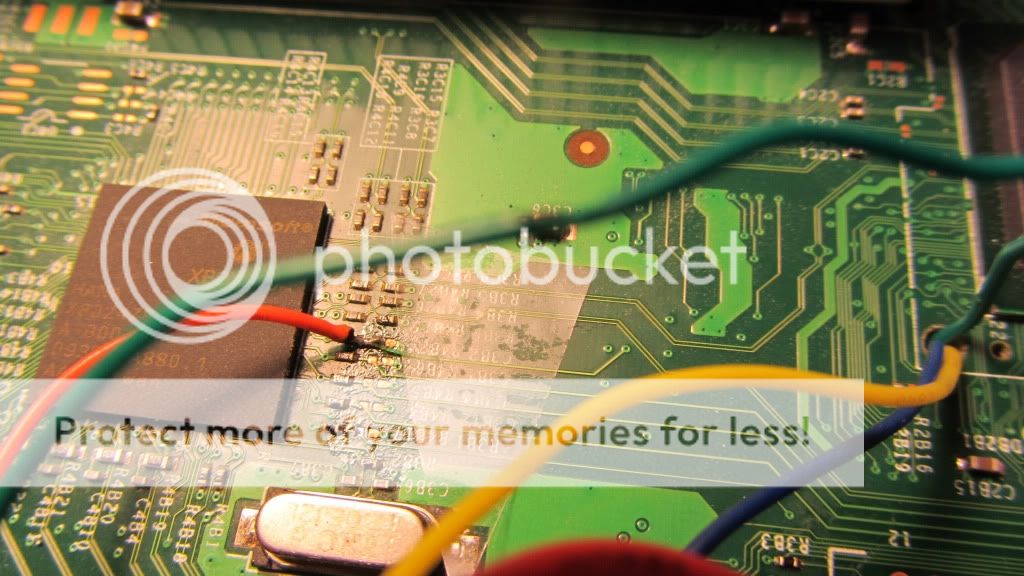

i used a little of ductape then i tested again if the xbox was booting and everything was fine.

thanks for all the help



[Dark_Riku]

Looks a bit messy...if you can try and clean it up to prevent more problems. If you're happy with the tape on it then that's fine.
