NandX E79 Xenon Need help

[mastr]

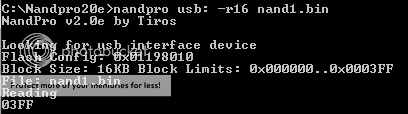

I apparently cant seem to get this right. Ithink I need a new soldering iron, but I can read and write to the nand fine and have exploitable kernel 6690 and CB version 1903. No matter what I do my Xenon refuses to give me anything but E79. I realize that the picture shows the jtag turned off it was not set this way when I was trying to boot xell.



[jfelding]

Its probably your JTAG wiring. If you have a multimeter, you can check your joints. If not, try putting some flux on the points and resolder the connections.

Its a bit hard to see, but one or more of them might not be connected to the board properly. Helps if you focus, but still hard to see even then.



[mastr]

Its probably your JTAG wiring. If you have a multimeter, you can check your joints. If not, try putting some flux on the points and resolder the connections.

That's what I thought. I'm going to try to resolder the jtag board that has the switch on it because I don't think I cleaned the points well enough, and there might be bits of wire or solder left over from my attempt at an LPT cable. I don't have any flux at the moment though, gonna have to get some.



[badronaldrule]

dont de solder the nad reader chips,desolder the jtag ones and if you try again then don't work,then use wires diodes! best thing you can use,



[mastr]

I tried that heres my current setup:

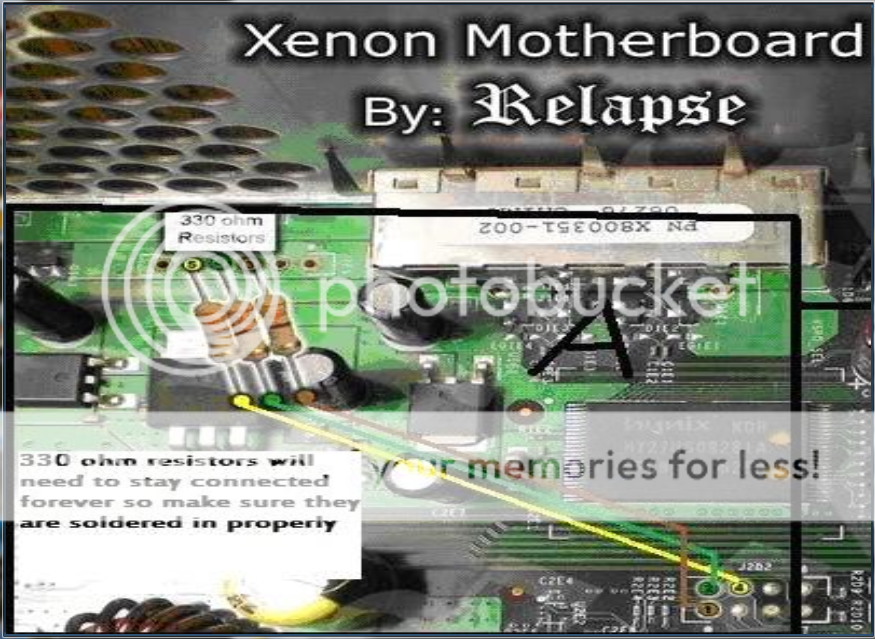

Since Ive been spending forever on this I was wondering if this would be an ok alternative.



[Apple25]

I'm currently having the same problem. The thing is I just realized that my console is not a xenon but actually a opus. N then when I try to flash the falcon xell. I get error 0031. When I flash xenon xell I get e79.



[J2G]

I'm currently having the same problem. The thing is I just realized that my console is not a xenon but actually a opus. N then when I try to flash the falcon xell. I get error 0031. When I flash xenon xell I get e79.

You seem to have a bigger problem now by not reading the rules and Hijacking someone else's Thread which carries a 24 hour ban



[tony1160]

looks like your soldering needs re doing but wait till you have some flux ..
an i think your wires on j1f1 need 100% re doing and maybe cut the ends slightly
