OPUS OPUS CR4 R-JTAG INSTABOOT

shawnunder7

Full Member
Jul 19, 2012
73
8
Astoria, NY
So I installed a CR4 on my Opus about an hour ago and at first it didn't boot, but with the quick flick of a dip switch, i'm getting instaboots all the time. I used all standard wires, no cutting, and used the JTAG QSB without Aud_clamp. This was a pretty fun install, and wasn't much work getting amazing boot times!

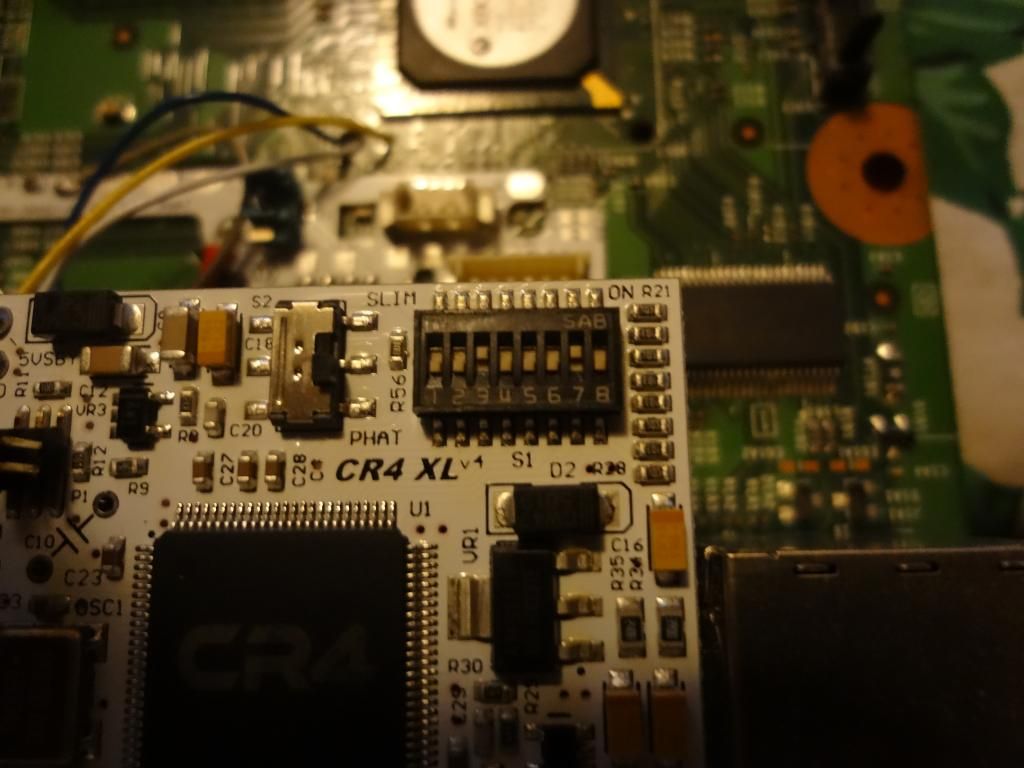

  • Dip switch settings - 3,7
  • Postbit jumpers - 10 Ohm
  • Type of CPU_RST Cable Used (Default/Pro Cable/IPEX) - Default

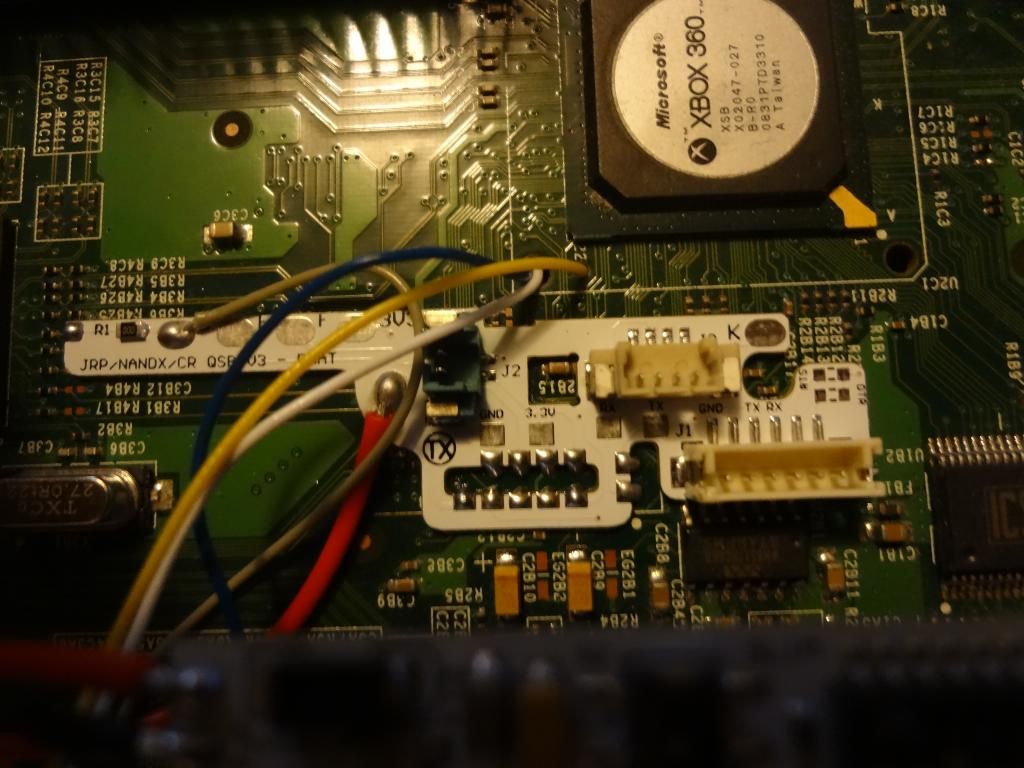

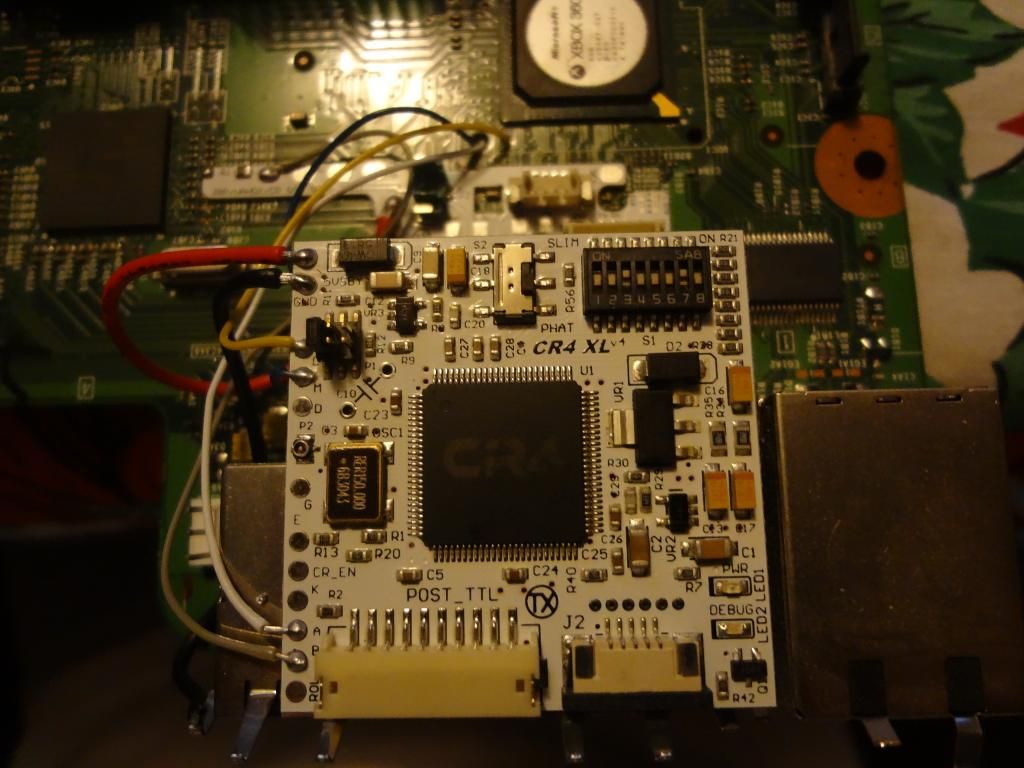

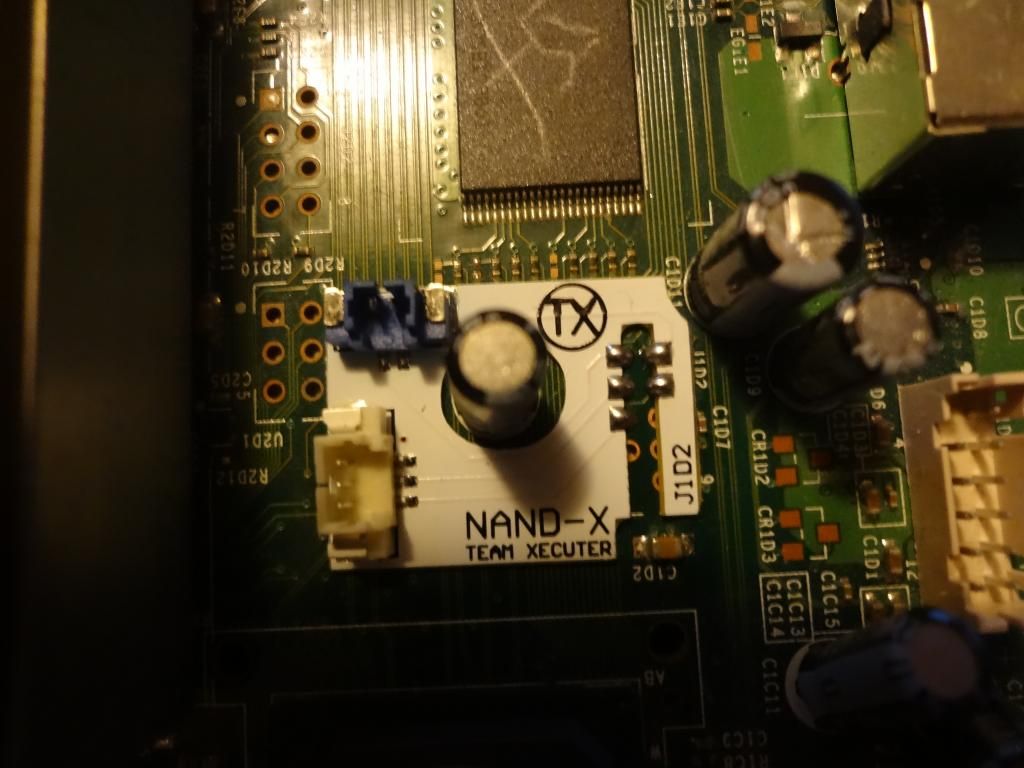

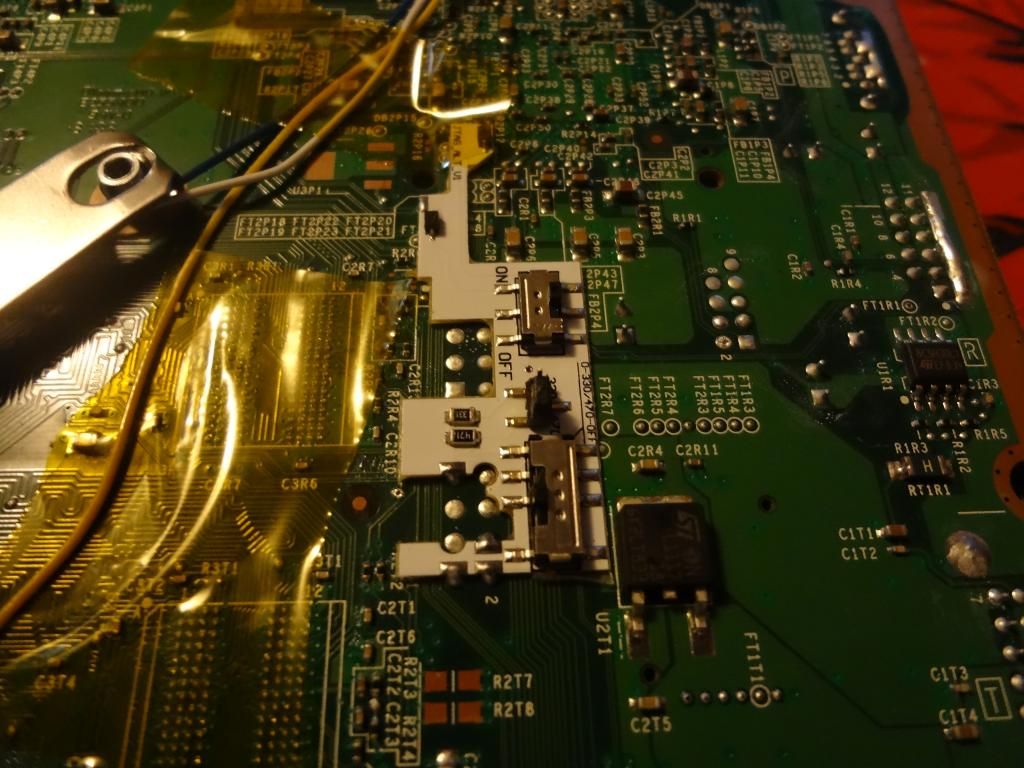

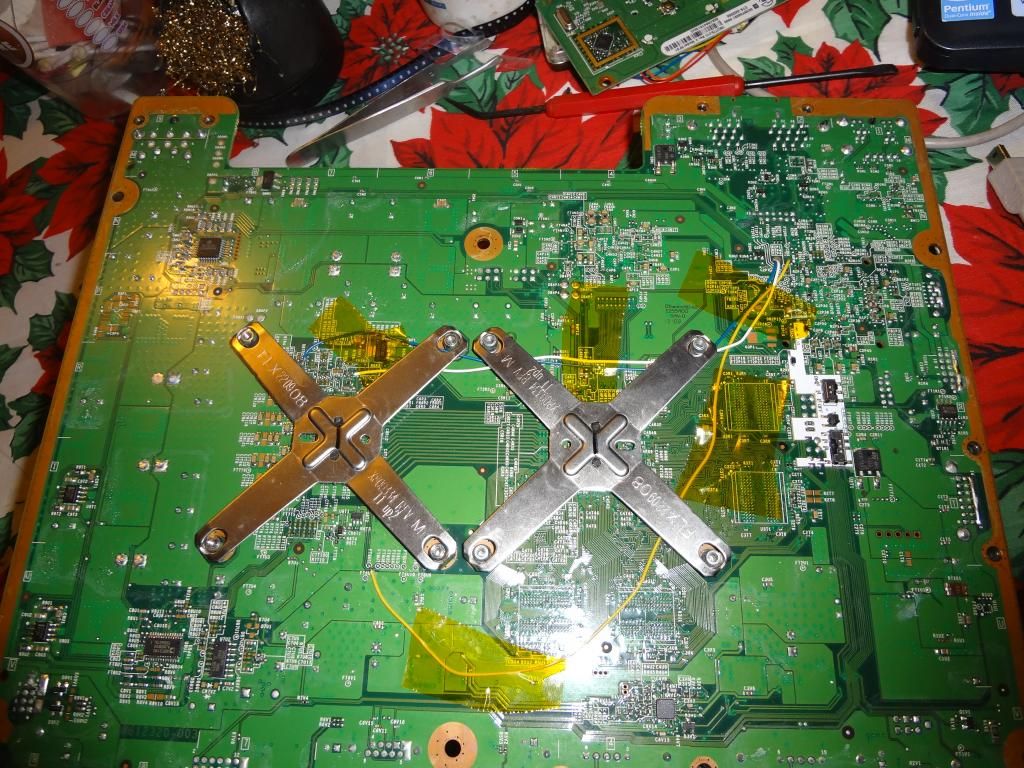

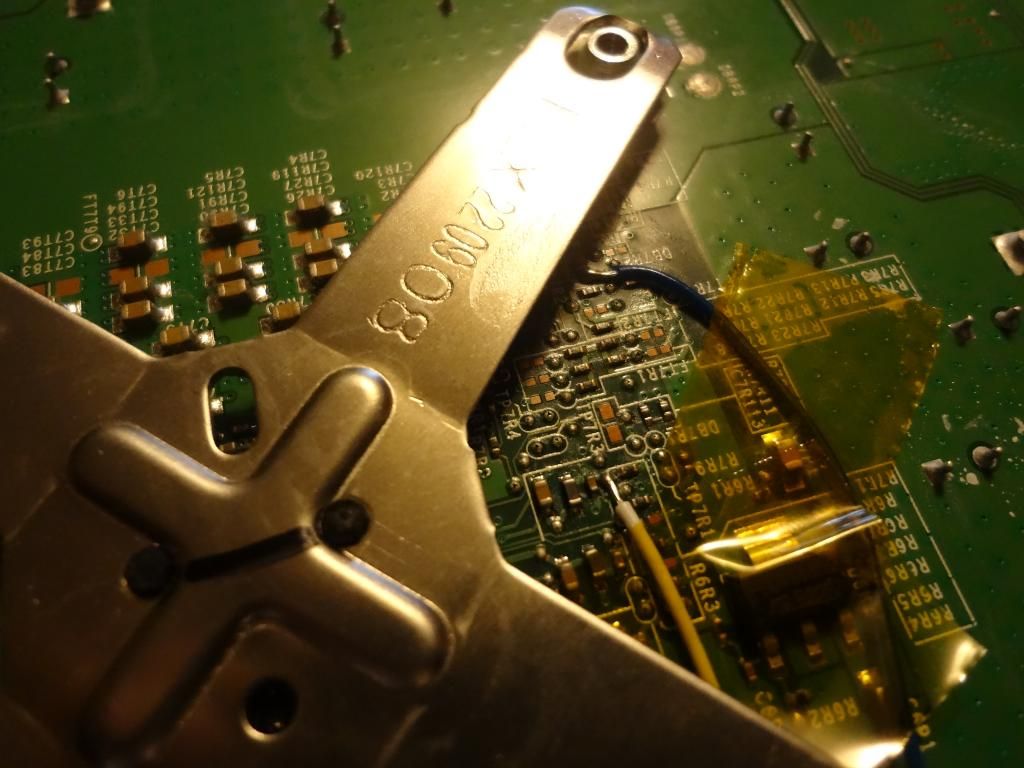

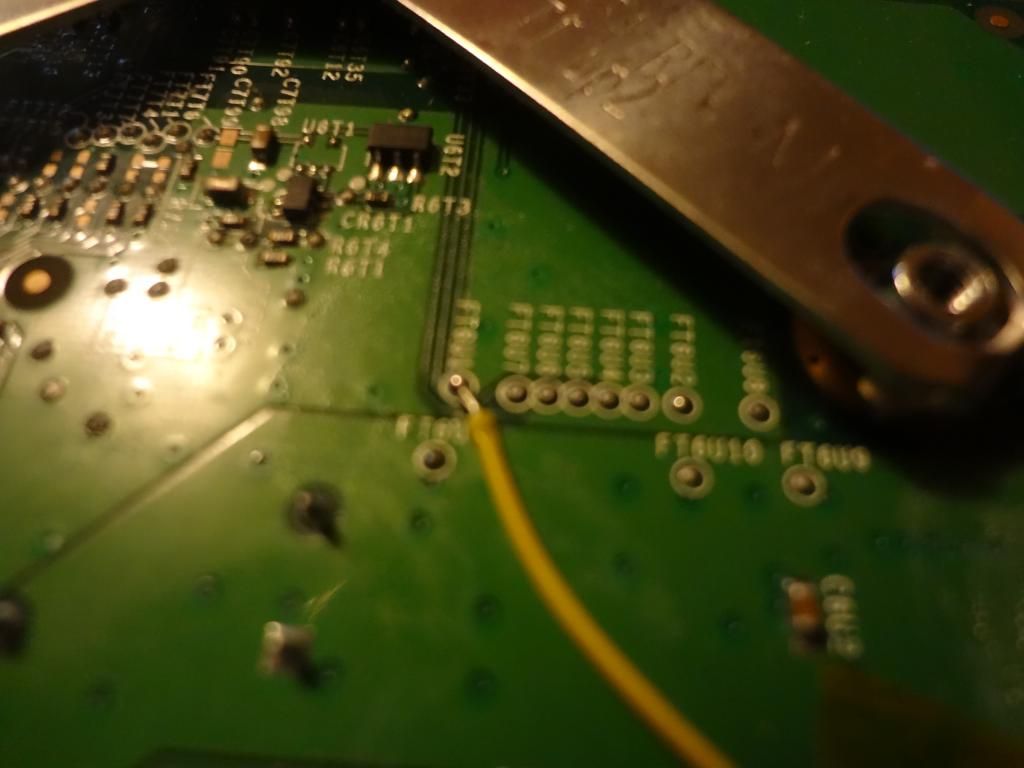

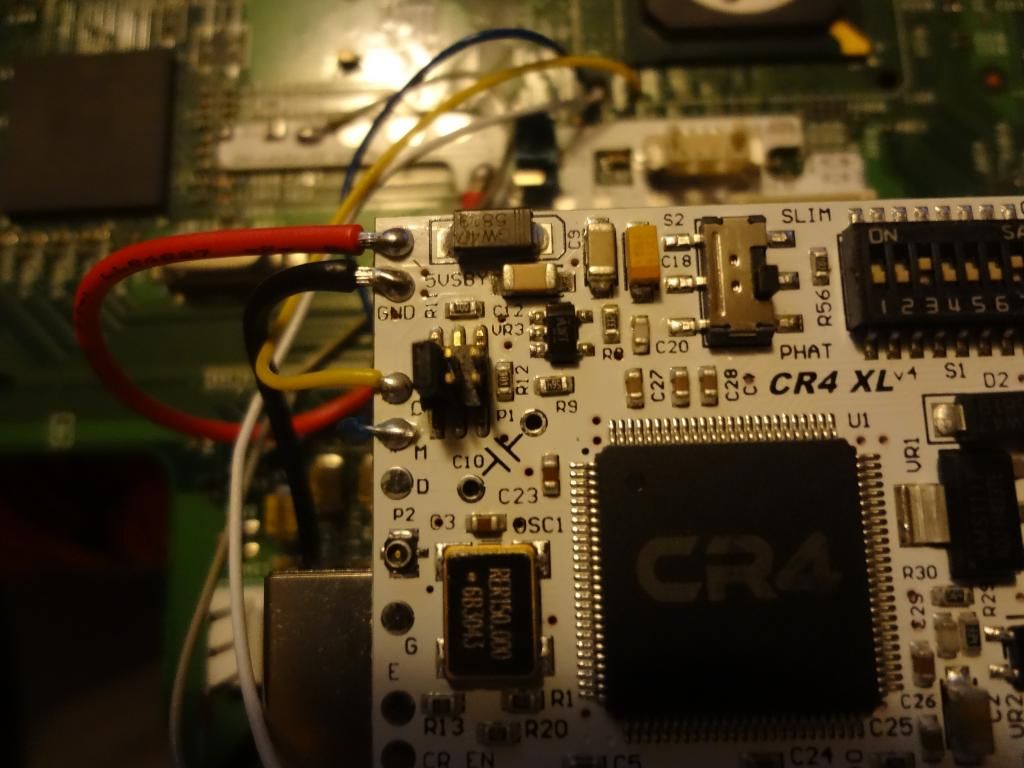

Here are a few pictures of my install










mondoman22

BANNED
Dec 3, 2009
24
0
Nice Job looks really good.. These are fun to install.... As ant said shorter the leads up and it will be perfect Nice Install

Tony
