R-JTAG R-JTAG attempt Xbox360 stuck on x360 screen

F

fokeiro

Senior Member
Feb 1, 2010
125
0
MIAMI, FLORIDA
i have a customer just brought me a jasper he tried to R-JTAG but cause max damage so im trying to repair the traces and ut boot but it get stuck on the xbox360 screen after the green lights? i know most broken traces and stuff either cause red lights or errors but on this one doesn't it starts fine then get stuck there. what you guys recommend i should try before i tell him to put it in garbage.

update: nand is reading fine so far

Last edited:
F

fokeiro

Senior Member
Feb 1, 2010
125
0
MIAMI, FLORIDA
TX Product(s) used:-R Programmer, R-JTAG kit
Console Type: (Jasper).
NAND size: 16
Dashboard version: 2.0.16747
CB version: 6754
J-Runner log:
Version: 10
Flash Config: 0x00023010
00023010
Trinity, Jasper 16MB
CB Version: 6754
Jasper 16MB
Reading Nand to C:\Users\Sig\Desktop\xbox rgh\J-Runner\output\nanddump1.bin
Reading Nand
Done!
in 3:23 min:sec
updflash.bin log (if applicable):
Images of close-up soldering to motherboard:
(attach images to your post)

Description of problem:

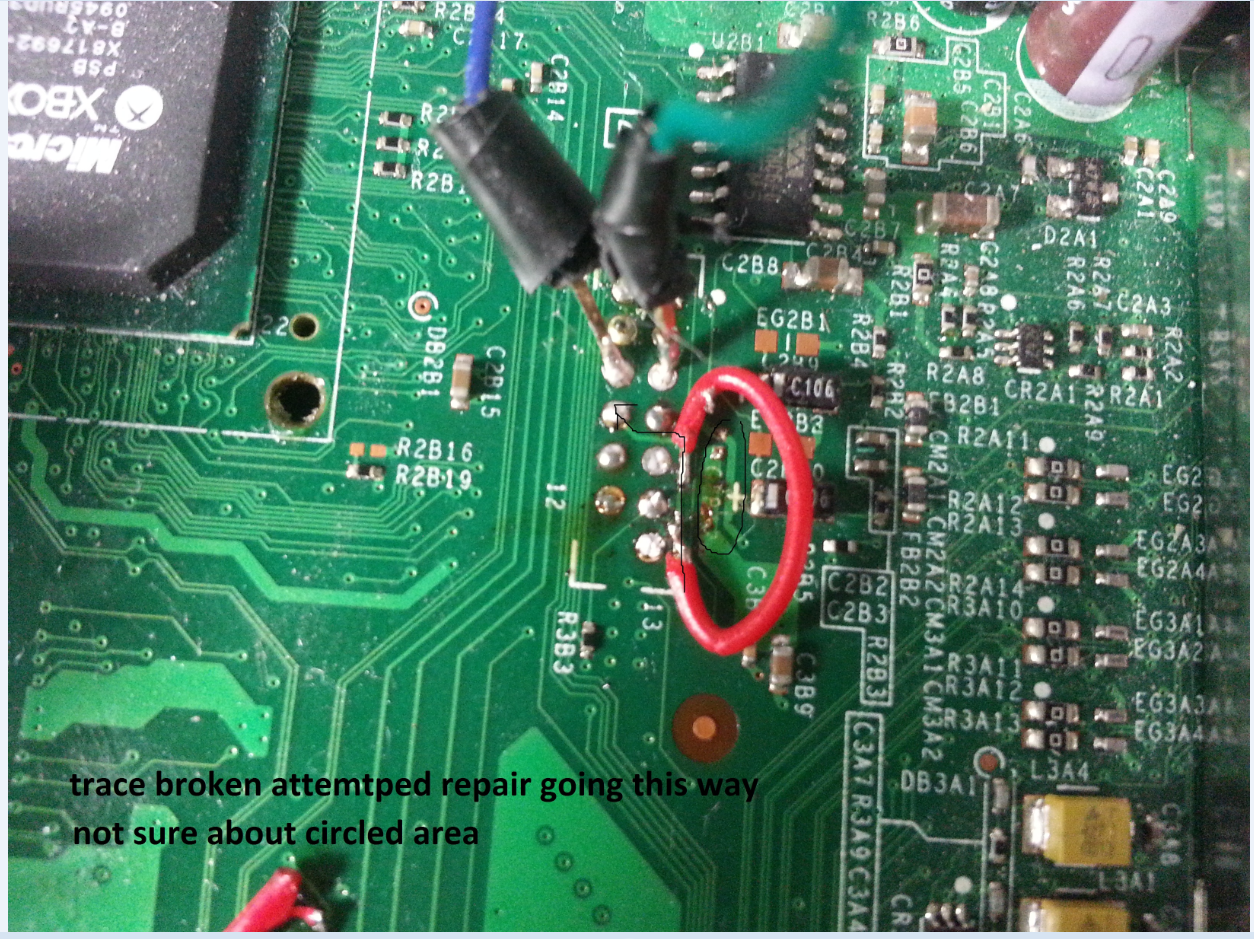

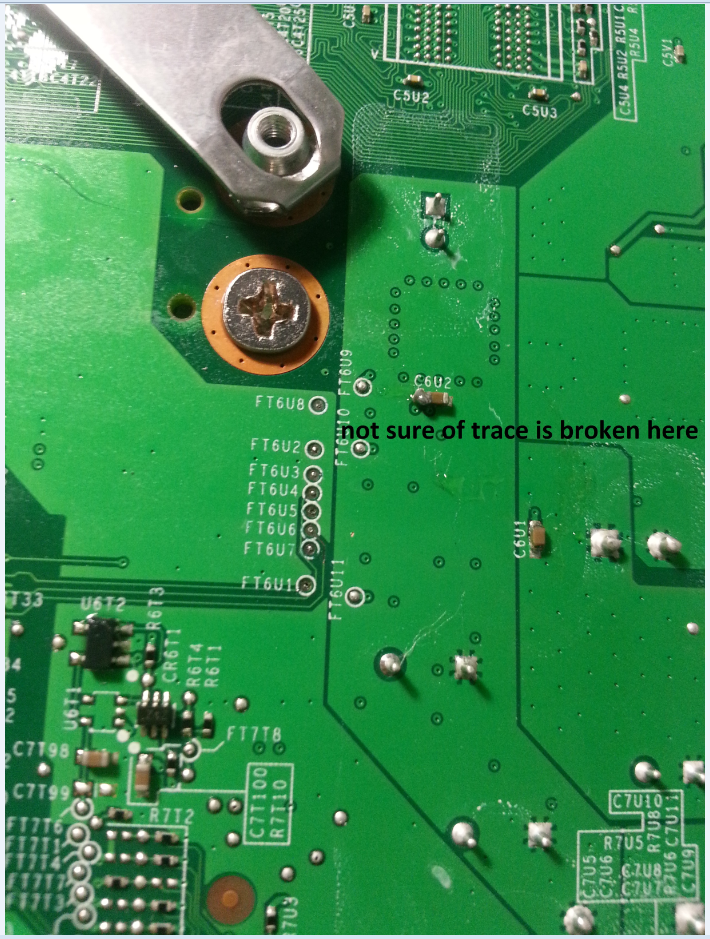

i have a customer just brought me a jasper he tried to R-JTAG but cause max damage so im trying to repair the traces and got it to boot but it get stuck on the xbox360 screen after the green lights? i know most broken traces and stuff either cause red lights or errors but on this one doesn't it starts fine then get stuck there. coolrunner already used on another board and qsb discarded since where burned badly.


Was the console working before you started: N

Do you get a green debug light appear on the RGH chip every 4-5 seconds: N

F

fokeiro

Senior Member
Feb 1, 2010
125
0
MIAMI, FLORIDA

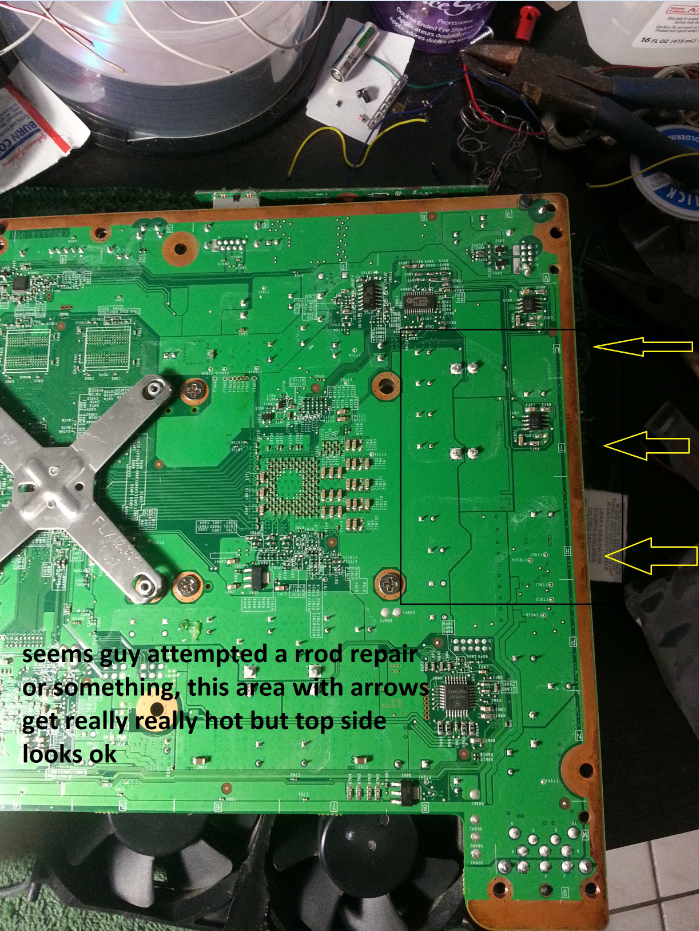

i will today and replace it with i guess 4 other screws and washers but the weird is i tried putting a chip to see if even boot to xell but with chips on it turns off immediately, when i take the power from chip, it stays ..... nand read ok but i guess there has to be another physical issue somewhere
