Hello,

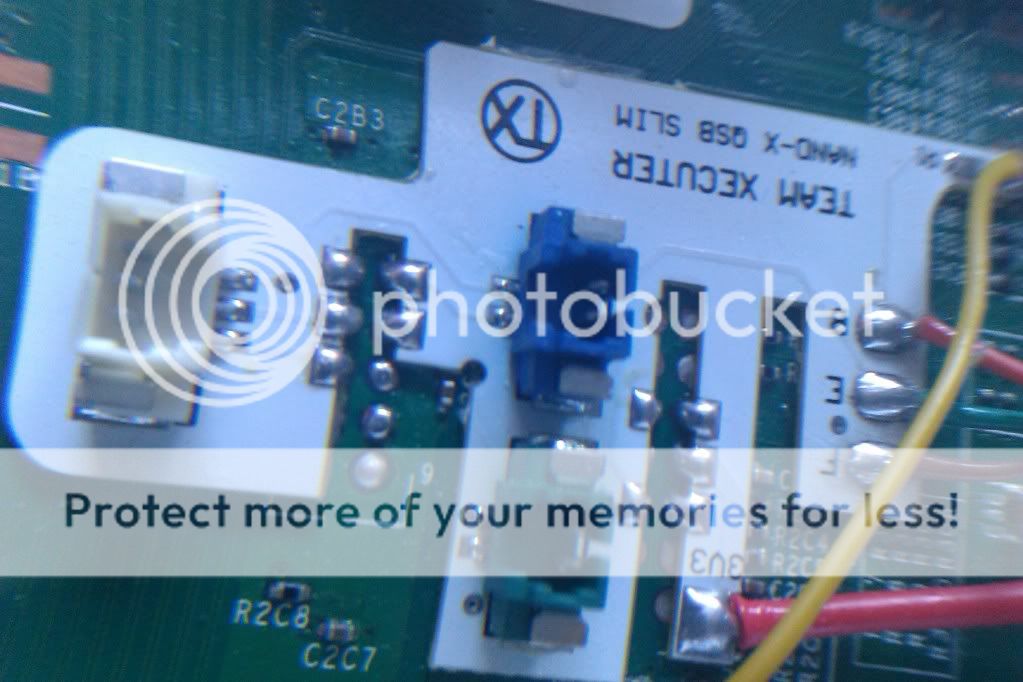

I blew a resistor on a slim, and the pad, i manage to fix it and connect the resistor to the qsb and to the alt point FT3N2. The resistor on the downside looks strange but it measure 36ohm. The xbox turns on, fan work, coolrunner its glitching but i can´t acess nand neither the xbox boot to the dash or xell. Take a look.

Martin C

Martin C

VIP Member
Jan 10, 2004
35,981
0
Scotland, UK
www.team-xecuter.com
You're probably shorting something you shouldn't. I suggest getting someone to fix for you, or soldering it cleaner than you have done.

  • Like
Reactions: Varezz
V

Varezz

Full Member
Nov 1, 2011
42
8
Hi,

Thanks.

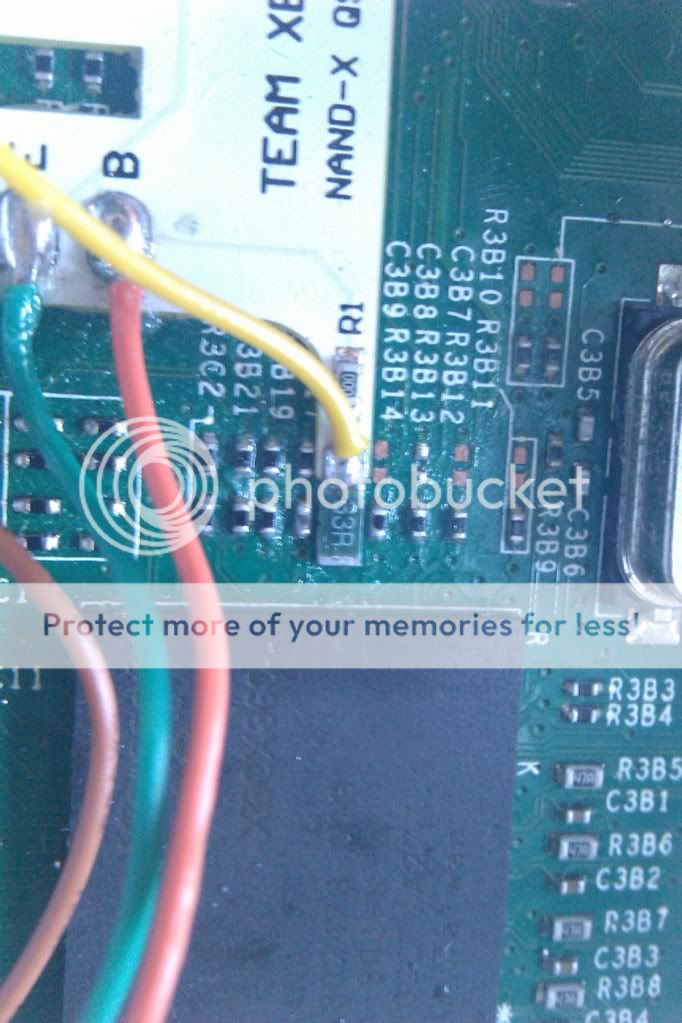

The thing is, i don´t have noboby near to do that for me. The resistor downside of the one i replace seems strange didn´t it?

photos.




Martin C

Martin C

VIP Member
Jan 10, 2004
35,981
0
Scotland, UK
www.team-xecuter.com
Without seeing exactly what you did, it's hard to say. It's not working, so desolder what you've done and take a picture of the damage.

  • Like
Reactions: Varezz
V

Varezz

Full Member
Nov 1, 2011
42
8
Hi,

Missing the 2 pads and the resistor and the resistor pads. I made a connecting to resistor scratching the trace.

Best Regards

Martin C

Martin C

VIP Member
Jan 10, 2004
35,981
0
Scotland, UK
www.team-xecuter.com
No offence but what you say and what is the case may be two entirely different things.

For example, why have you soldered to FT3N2 as well?

  • Like
Reactions: Varezz
V

Varezz

Full Member
Nov 1, 2011
42
8
Hi,

As you ask, and you are the master of the forum in the matter of help i thank you. Please tell me what i need to do.

I have a scratch pen, do i need a conductive pen?

Pic:



---------- Post added at 15:29 ---------- Previous post was at 15:27 ----------

hi,

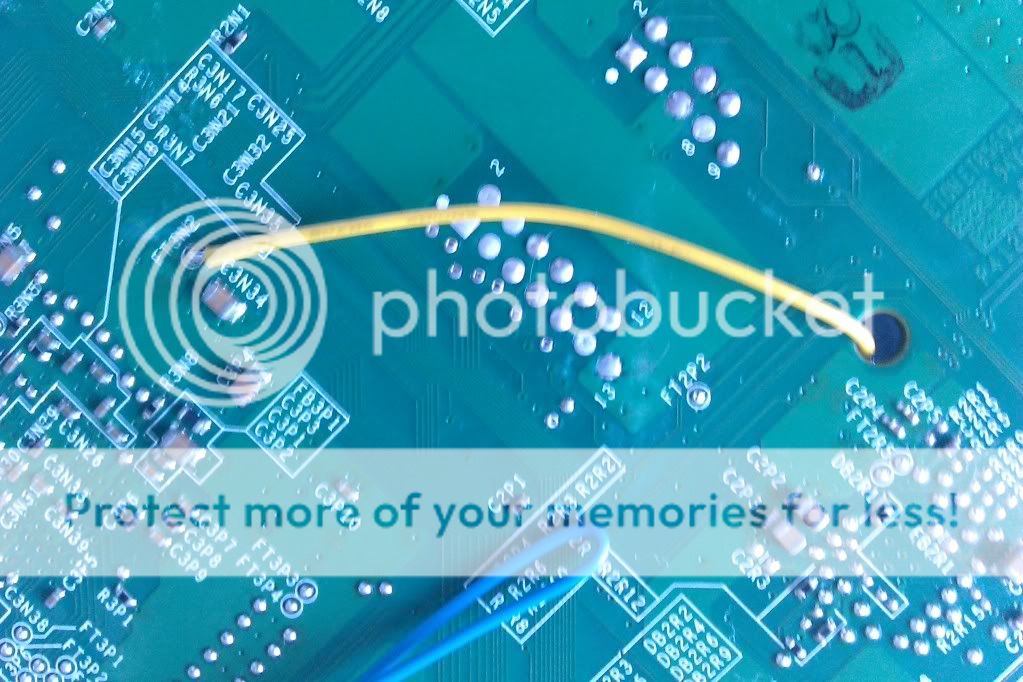

i have soldered to FT3N2 because i tried to solder to the trace and it was the same. The other resistor its not ok right?

Thanks in advance.

Best Regards

Martin C

Martin C

VIP Member
Jan 10, 2004
35,981
0
Scotland, UK
www.team-xecuter.com
use a fibreglass pen to expose the via, then solder kynar wire to it. Solder a 33ohm resistor to this wire, then the other end can be split: one to the CR and one to FT3N2. It doesn't need to be a SMD resistor as long as it's around 33Ohm.

V

Varezz

Full Member
Nov 1, 2011
42
8
Hi,

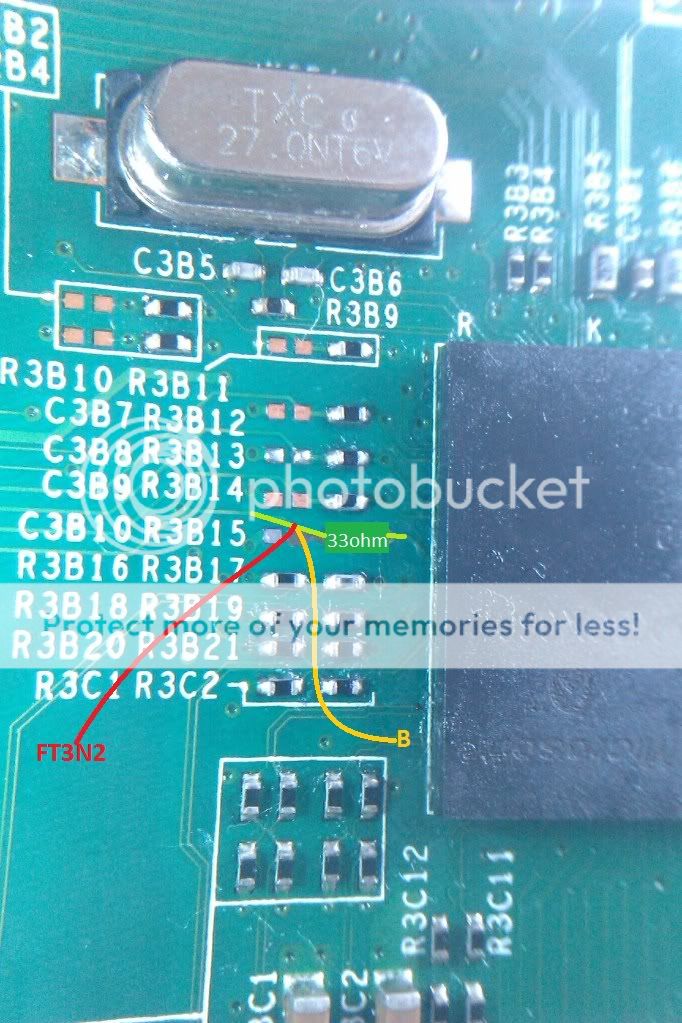

Thanks, i think that what you are saying to do it´s what it was done. I had a smd resistor to the trace near hana and the other end to FT3n2 and the B point to the resistor.

Like this?
