RROD e79 and more

[xboxmoddz]

I was sent a repaired falcon box in the mail to get tagged. I did the http://www.boxxdr.com/boxxdrjtag.html method which i have done numerous times. I use the jtag tool by coolshrimp.

I verified cb and proceeded to flash xellous, i get e79. I flashed original nand back and i get rrod. I removed the wiring and tested, boots fine.

I installed wiring again, tested and boots fine, flashed xellous get e79, flashed original nand back and i get rrod again. I am lost with this console.



[iloveme28]

ive had this problem myself before try replacing the wiring and diodes and make sure your soldering is spot on.



[xboxmoddz]

put fresh diodes, resistors and wires. everything looks kosher.



[iloveme28]

put fresh diodes, resistors and wires. everything looks kosher.

can you post a picture of your soldering maybe someone will be able to see something you cant



[M AzeeM K]

Since you pretty confident that there is nothing wrong with the wiring, instead of XeLLous, try writing XBR and see if it works.



[playingmax]

try using jtag tool 2.20



[xboxmoddz]

try using jtag tool 2.20

tried that did not work

Since you pretty confident that there is nothing wrong with the wiring, instead of XeLLous, try writing XBR and see if it works.

i will locate that, but if i flash the original nand back, why would it give me 3 rings?
0020



[xboxmoddz]

http://www.team-xecuter.com/forums/showthread.php?t=56926

this thread gave me an idea, i had jtag tool set for dvd no so i can boot without dvd. when i put dvd yes everything works now. just put freeboot on

thanks



[M AzeeM K]

Glad you got it working. Have fun with the Jtag



[xboxmoddz]

actually i spoke too soon, after i removed the nand wires and put it back in the cage it gave me the rrod again instantly. the only other thing i did was do the rt63 bridge. this console is really weird



[M AzeeM K]

Well....If you ask me, there is 99.9% chance that there is something wrong with the Jtag wiring. Its probably causing a short circuit somewhere. Try covering the Jtag wires with insulation tape at the solder points and then see if it works.



[xboxmoddz]

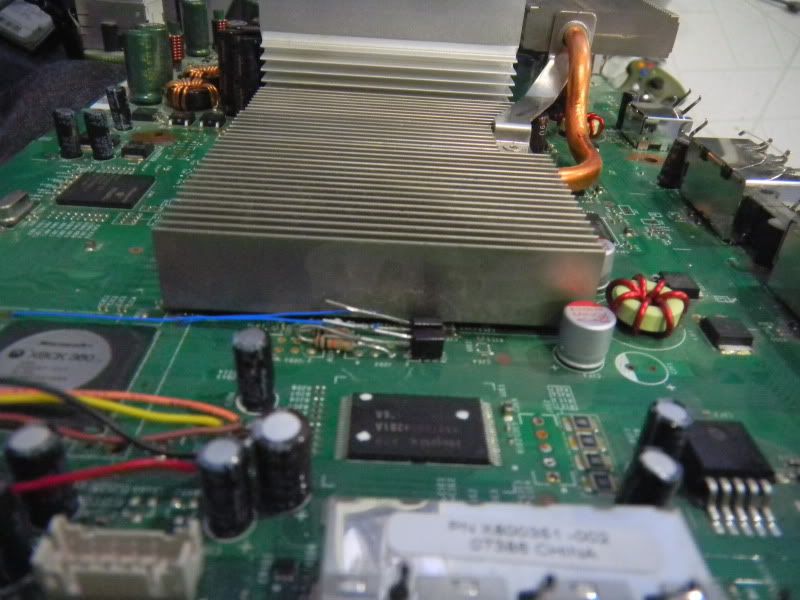

http://img.photobucket.com/albums/v337/xboxmoddz/DSCN0182.jpg

http://img.photobucket.com/albums/v337/xboxmoddz/DSCN0179.jpg

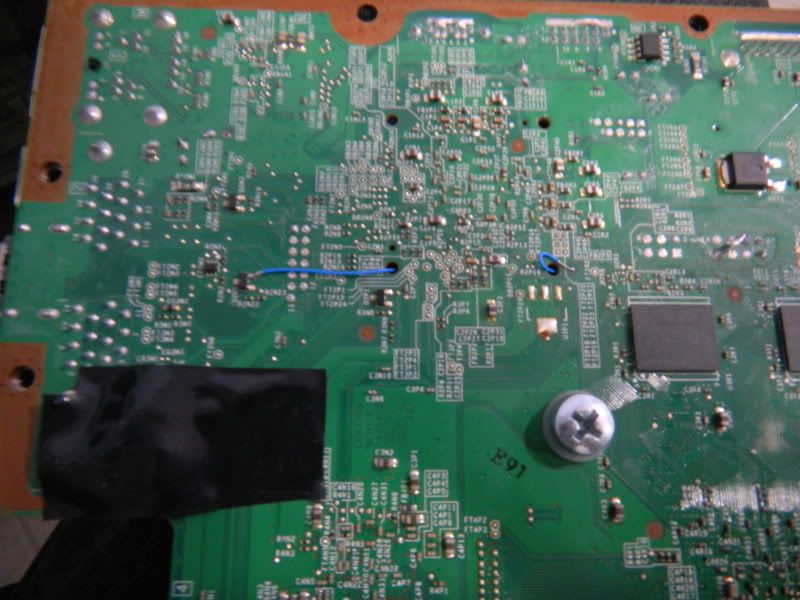

well i took the board out of the cage to test, just in case there was a short at the bottom. but instant rrod, there is my wiring. doesnt look as though anything is touching. plus its my 2nd wire job on this board.

would incorrect jtag wiring cause an instant rrod anywho?



[M AzeeM K]

Some more pics...and of better resolution please...
