Soldering Feedback

[EdgeBrowser]

Hey,

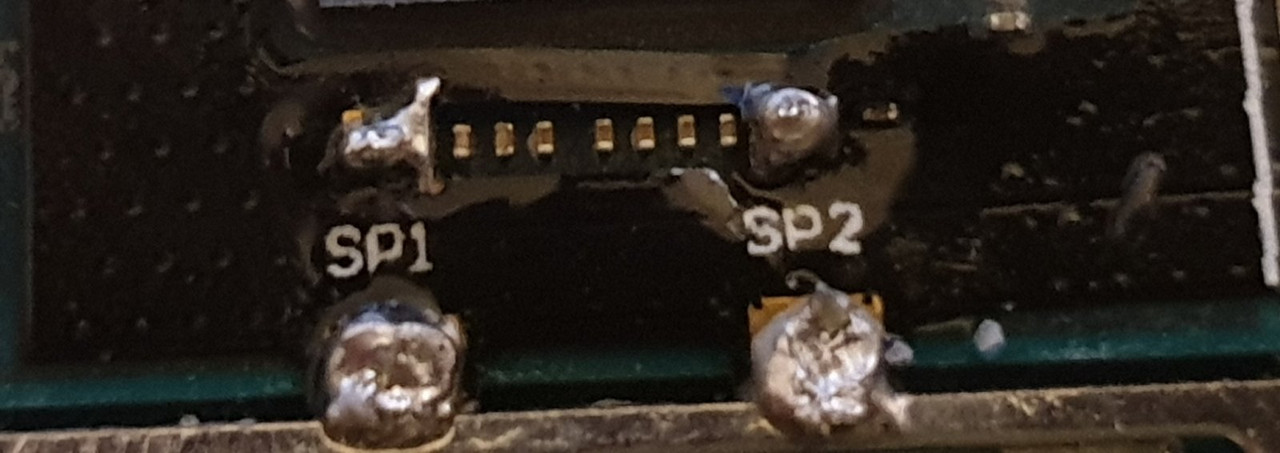

I'm currently in the process of installing and was wondering if I did the soldering correctly or if I should redo part of it before putting everything back together. This is my first time soldering and I'm aware that I could quite possible brick this one.

>



[Kill-Bill6]

Hey,

I'm currently in the process of installing and was wondering if I did the soldering correctly or if I should redo part of it before putting everything back together. This is my first time soldering and I'm aware that I could quite possible brick this one.

>

This needs to redo the solder solder shouldn't be touch together



[MomZo]

The solder should not touch both sides of SP1 and SP2 capacitors.



[ctb1985]

To be honest with you the soldering is a mess.
Removing it to get the correct soldering setup at this poin will likely result in you breaking a capacitor on the chip.

I would take it to a rework technician with micro pcb soldering experience and the correct tools and get them to correct your install.



[SYGamer]

Connections are bridged, so this soldering is no good and will not work.



[Scramschnits]

Meh, the soldering is fairly decent despite the fact you bridged the connections on Tegra capacitors.

Use solder wick to try and suck up the solder in-between those soldering points, and hopefully you're home free.



[Grimlock97]

you need to desolder until the solder joints are not bridged on sp1 and sp2. You probably damaged your caps by bridging it. Desolder is the hardest part because many got their caps damaged by desoldering.
