solid green and red LED on coolrunner

[superben51]

ok so i programed my coolrunner and i installed it.i created and wrote the ecc then tryed to boot. the coolrunner comes on as soon as i plug the power cable in,the install looks good to me but when i boot i dont get any picture



[axee44]

Post pics of your install. also how did you program your coolrunner?



[mikey63366]

i would post pictures.. are you even getting a green light?



[cfull1]

Did you flip the switch to normal mode?



[Martin C]

ok so i programed my coolrunner and i installed it.i created and wrote the ecc then tryed to boot. the coolrunner comes on as soon as i plug the power cable in,the install looks good to me but when i boot i dont get any picture

As a noob to the forums, you're supposed to read the stickys before posting. It's the rules of the site you agreed to when joining.

One sticky is called 'pics' - did you read it?



[superben51]

yeah sorry my camera died and i had to charge it will post pics ASAP



[superben51]

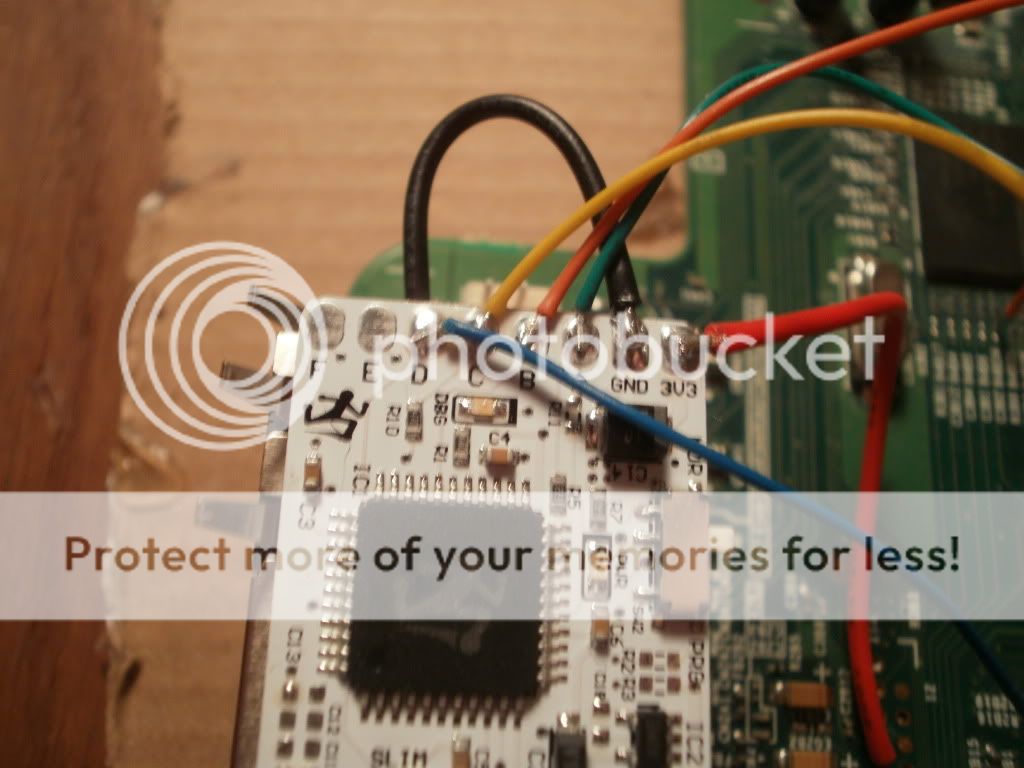

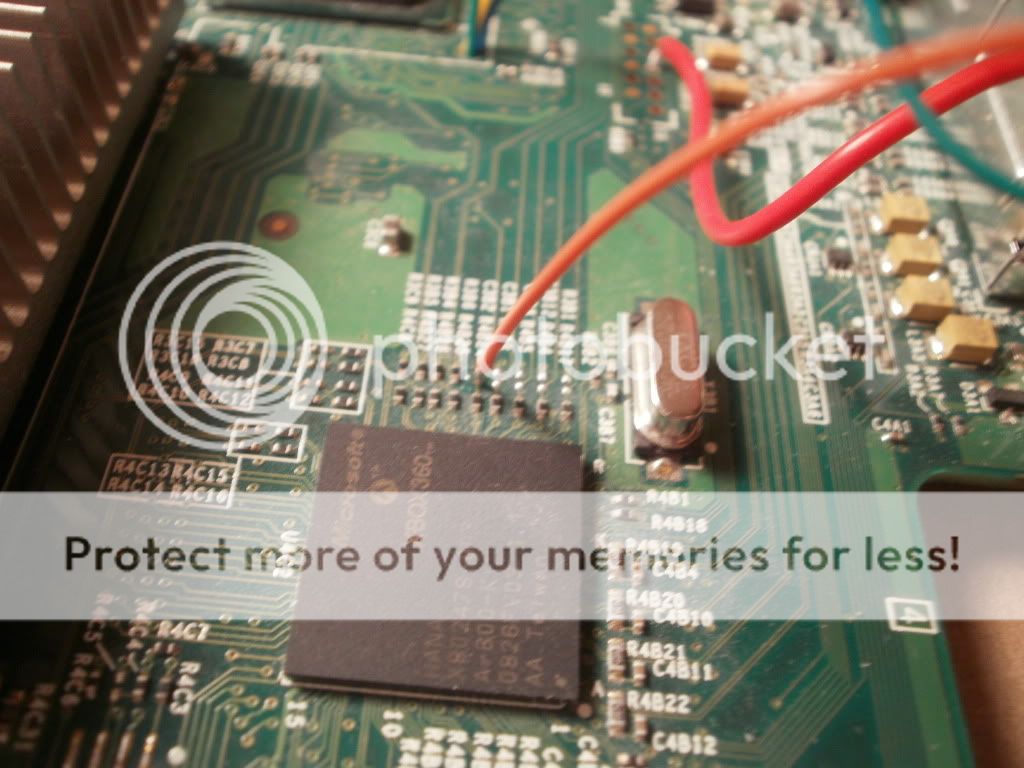

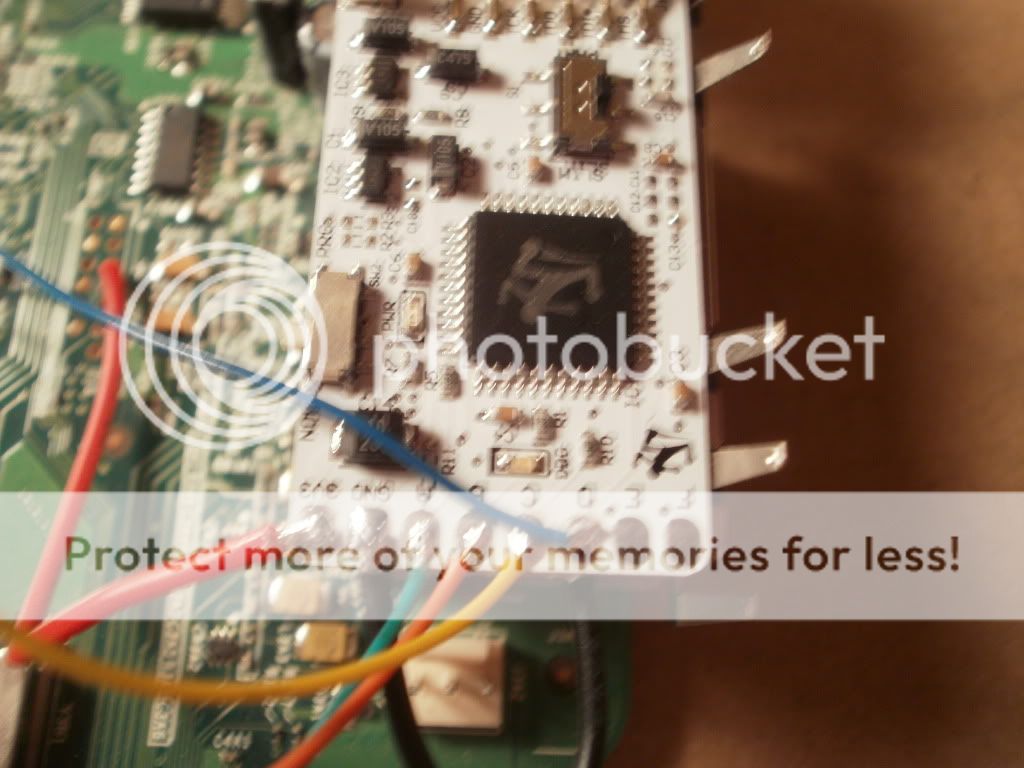

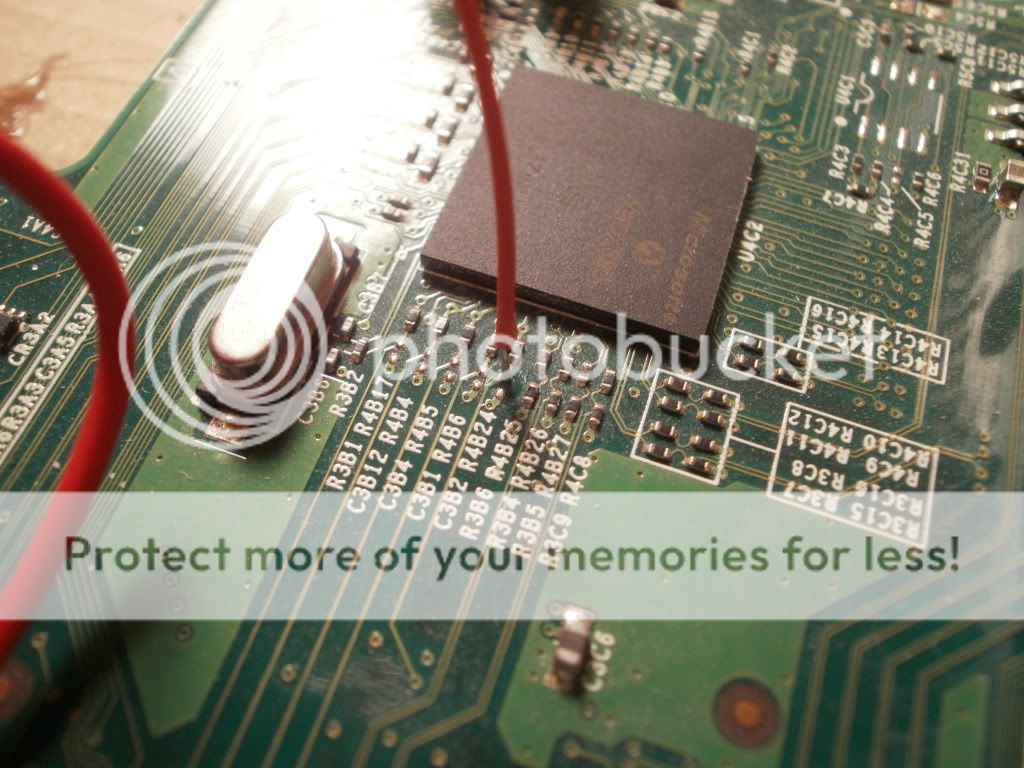

okay here are the pics' i used the cpu reset alt because i think i burned the main point



[sick360mods]

post pics above the points not from the side



[superben51]

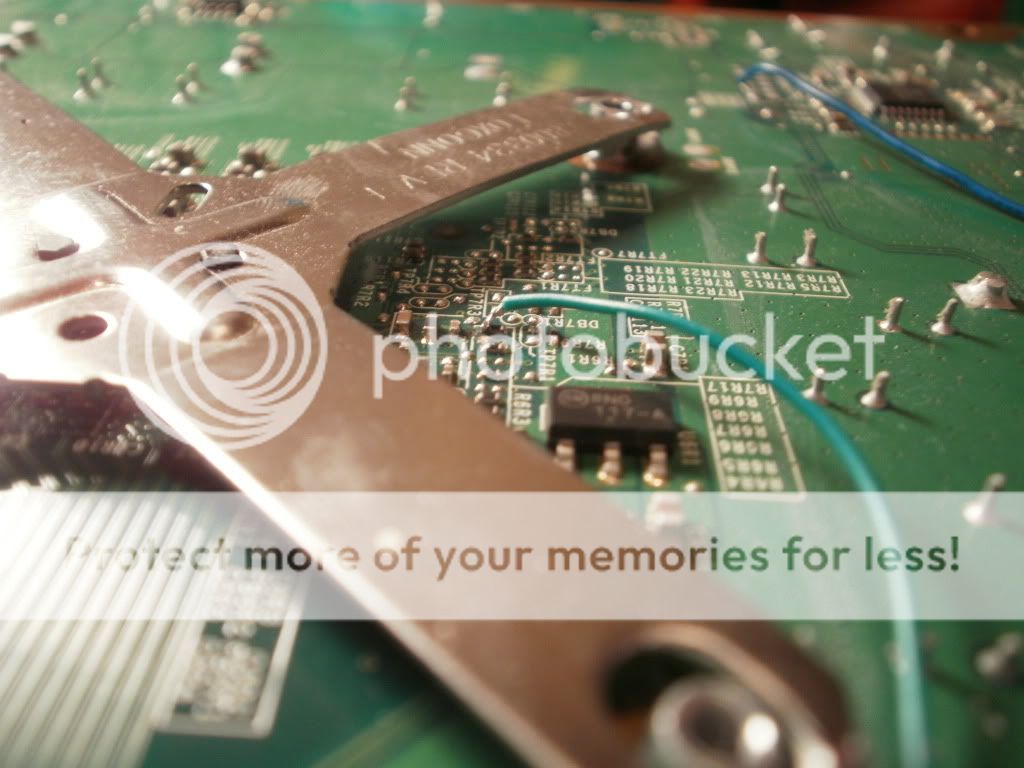

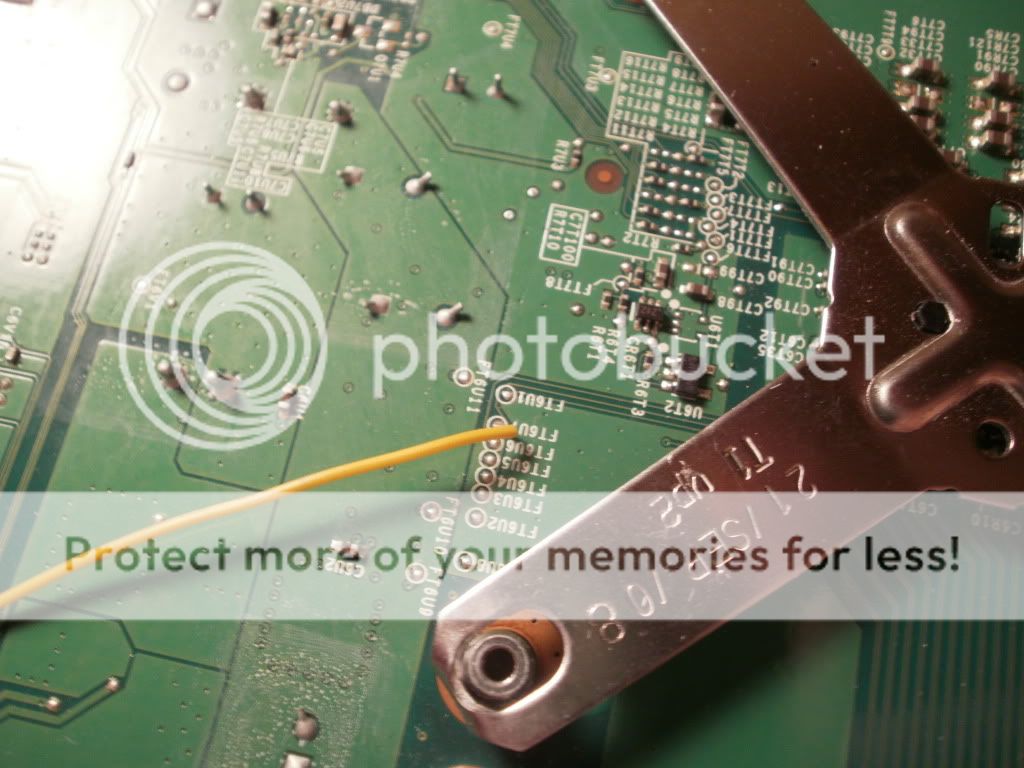

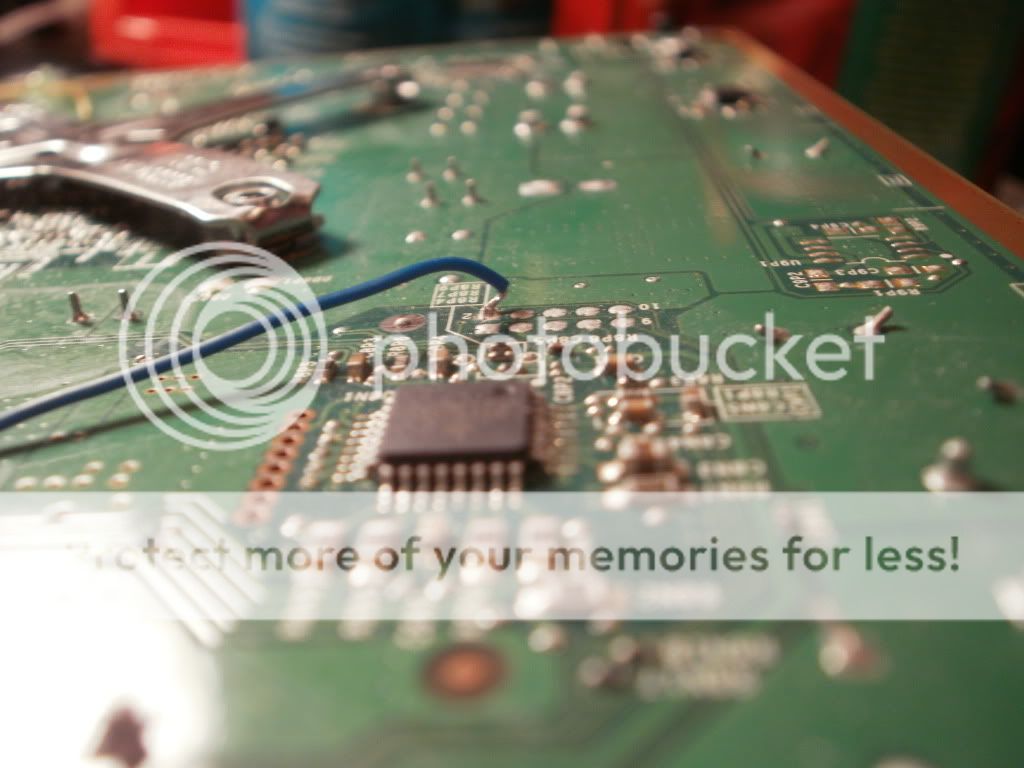

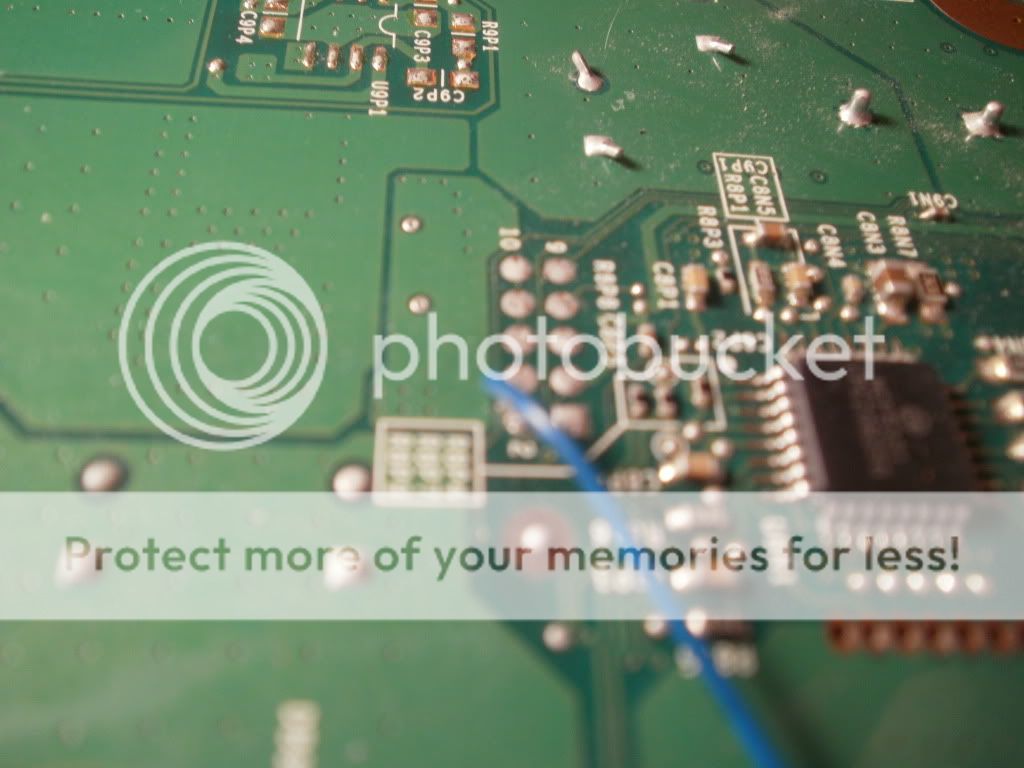

like this?



[MightyShots]

Martin and nastybrother24 want to see the joints from a aerial view, the pics you posted are being blocked by the cables mate

---------- Post added at 17:43 ---------- Previous post was at 17:38 ----------

Martin might correct me here, but your PLL_BYPASS looks like its soldered to the wrong point??? Unless thats the alternate point, as the original looks shafted.



[superben51]

i didn't think the first ones were?



[MightyShots]

Sorry, read the bottom part of my last post and cross reference it with this.

The PLL_BYPASS looks incorrect, but like i said not too sure Martin is the best at this.
http://team-xecuter.com/forums/showpost.php?p=469986&postcount=1



[superben51]

yeah i used the alt point for the PLL_BYPASS



[xbox360 hacker]

I am not 100% sure as i have not yet needed to do any alt points but looking at this guide you have not done the alt point correctly as you need a wire running from that resistor to the point on the opposite side of the board.



[superben51]

oh.. your right so would I attch a wire in the middle of the one going around the bored? also could i still use the first point or is it shot?



[mikey63366]

looks like the green wire is on wrong point or not solder correct



[xbox360 hacker]

you can attach the wire any where you chose after you repair it. Either solder point you used during the repair or if you aren't to confident at soldering 2 wires to 1 point anywhere along that wire will be fine.

---------- Post added at 02:01 ---------- Previous post was at 01:59 ----------

looks like the green wire is on wrong point or not solder correct

You really should learn to read the whole thread before commenting.



[superben51]

So the original point is toast ?



[rexdale]

So the original point is toast ?

can't really tell.
But, i can tell u that if u want to use the alternate point, then the green wire u have is fine, just attach another wire going from the second point near the cpu to the point A on the coolrunner. So, you would have two wires soldered onto the A point on the coolrunner.
Or u can try soldering it directly onto the resistor, so u have two wires soldered onto the resistor



[superben51]

Hmm.... I would really like to use the original point because I don't really want to take off the clamps on the board so I'll try to resolder it when I get home
