LITEON 0225 SPUTNICK360 Unlock Tutorial for DG-16D4S MXIC memchips (soldering and trace cuts)

[xboxd]

Re: Russian 0225 Unlock Tutorial for MXIC memchips (soldering and trace cuts)

works on winbond 2 wow.. This is a massive step forward from impossible to write. Glad not everyone gave up trying to find a way to write to these drives.

How did you get it to work?
How much Ohm did you use?

I am getting SPI 0xFF with 4,7 Ohm.



[WalangAlam]

Re: Russian 0225 Unlock Tutorial for MXIC memchips (soldering and trace cuts)

hello I can't get to vendor mode when I click the intro device. I already cut the trace. It is detected by jf 1.85 and Im using via 6421. I power cycled it many times but no joy. via only and phat checked. Status is 0x51. Its MXIC. How can I put it to vendor mode?



[goro.br]

Re: Russian 0225 Unlock Tutorial for MXIC memchips (soldering and trace cuts)

hello I can't get to vendor mode when I click the intro device. I already cut the trace. It is detected by jf 1.85 and Im using via 6421. I power cycled it many times but no joy. via only and phat checked. Status is 0x51. Its MXIC. How can I put it to vendor mode?

Try recovery mode, put the probe on MPX01.



[diaboliq20]

Re: Russian 0225 Unlock Tutorial for MXIC memchips (soldering and trace cuts)

Try recovery mode, put the probe on MPX01.

REALLY????
have u been reading the thread? lol



[iave9504]

Re: Russian 0225 Unlock Tutorial for MXIC memchips (soldering and trace cuts)

Try recovery mode, put the probe on MPX01.

you dont probe slim drives only phat liteons, i think you need to re-read through some of the thread/posts on here



[goro.br]

Re: Russian 0225 Unlock Tutorial for MXIC memchips (soldering and trace cuts)

REALLY????
have u been reading the thread? lol

sometimes , the drive always comes at vendor mode with a probe connected to the yellow wire and MPX01 point.
Press [Intro device ID] then click on yes, Turn off the drive and put the probe on MPX01, connect the drive and remove the probe.
This works always and You can be use in cases of BAD flash.



[WalangAlam]

Re: Russian 0225 Unlock Tutorial for MXIC memchips (soldering and trace cuts)

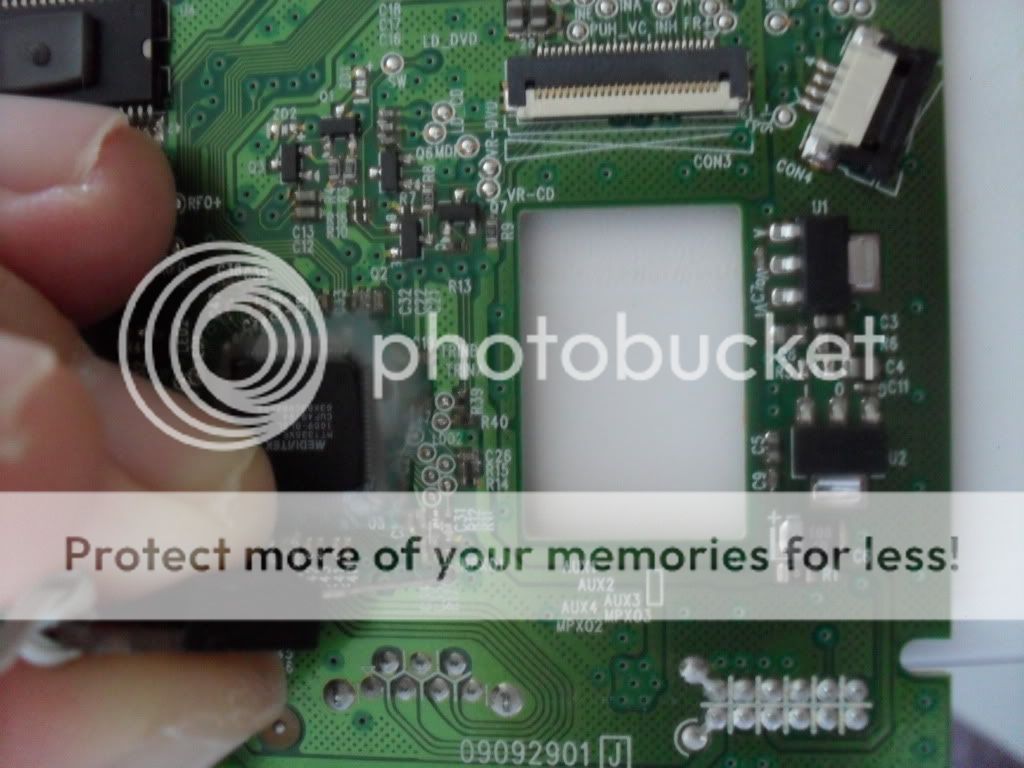

can I use the probe I use for phat or the PMT? what yellow wire? MPX01 is the dot beside R17?



[johnno2]

Re: Russian 0225 Unlock Tutorial for MXIC memchips (soldering and trace cuts)

does the drive lock again once 0225 has been flashed with lt+ that would be nice to know then if m$ can reflash that would mean these drives can be software only unlockd if they cant then big error m$ LOL as they cant reflash us



[goro.br]

Re: Russian 0225 Unlock Tutorial for MXIC memchips (soldering and trace cuts)

can I use the probe I use for phat or the PMT? what yellow wire? MPX01 is the dot beside R17?

The probe is to the slim drive enter in vendor mode only.
works fine.



[WalangAlam]

Re: Russian 0225 Unlock Tutorial for MXIC memchips (soldering and trace cuts)

oh that yellow line . Will give it a go.



[Pacote]

Re: Russian 0225 Unlock Tutorial for MXIC memchips (soldering and trace cuts)

Just finished my setup

will test with a winbond later today



[Ginjasy]

Re: Russian 0225 Unlock Tutorial for MXIC memchips (soldering and trace cuts)

Im going to give it awhile before I try this. I'd like to see what C4 and TX think once they have had a little time to look into it. Its good to know that its possible so its promising.



[WalangAlam]

Re: Russian 0225 Unlock Tutorial for MXIC memchips (soldering and trace cuts)

got it to vendor mode but my pc freezes damn



[Cuban11182]

Re: Russian 0225 Unlock Tutorial for MXIC memchips (soldering and trace cuts)

This is SWEET!! I have a 0225 sitting in it's box since I've gotten my JTAG running. might have to take it out and see what's up.

Thanks!



[goro.br]

Re: Russian 0225 Unlock Tutorial for MXIC memchips (soldering and trace cuts)

oh that yellow line . Will give it a go.

I could not put 0225 in vendor mode, so I used the probe.

- Warning -
With the probe you can not extract the Dummy.bin for 0225.
Do not forget to extract the Dummy before using x360USB pro.



[goro.br]

Re: Russian 0225 Unlock Tutorial for MXIC memchips (soldering and trace cuts)

got it to vendor mode but my pc freezes damn

Are u using a VIA sata port?



[WalangAlam]

Re: Russian 0225 Unlock Tutorial for MXIC memchips (soldering and trace cuts)

yes. via 6421a pci windows 7. Do I need to install any driver? Why is it that the 10ohms resistor turns really hot when I try to connect it.

It's PCI SATA + IDE card.

is 0xDF the correct spi. JF says 0xDF00



[goro.br]

Re: Russian 0225 Unlock Tutorial for MXIC memchips (soldering and trace cuts)

yes. via 6421a pci windows 7. Do I need to install any driver? Why is it that the 10ohms resistor turns really hot when I try to connect it.

It's PCI SATA + IDE card.

is 0xDF the correct spi. JF says 0xDF00

In the JF manual talks about freezing problems using VIA card.
Yes, the resistor heats up, not put it for long time, remember they are only 10 0hm.
The PC I/O adress is DF00 for you, in your case.



[WalangAlam]

Re: Russian 0225 Unlock Tutorial for MXIC memchips (soldering and trace cuts)

i was able to put it to vendor mode. connect the resistor. click unlock drive in the russian. and I got a russian message with !



[WalangAlam]

Re: Russian 0225 Unlock Tutorial for MXIC memchips (soldering and trace cuts)

OK I got 0x8E. When I click the unlock after connecting the resistor, 0x8E doesn't change to 0x0 and just got a message. What am I doing wrong?
