Switch Blank.. No Chip Bios Screen

[CyberWoolf]

Ok.. Im severely confused and reaching my breaking point!!

The chip lights up blue.. but the switch has no lights.. Ive tried a zillion switch settings.. turning it on really fast.. checked the soldering (which is fine) and Im still getting no BIOS install screen. It just comes up with the regular xbox screen.

Im using X3 and Xbox 1.0

I searched but cant find an answer that works



[althekiller]

sounds like the power/eject board isnt connedted properly



[CyberWoolf]

Ok.. I will take a peek at that Thanks for your reply!!



[HoBoZ]

Ok.. Im severely confused and reaching my breaking point!!

The chip lights up blue.. but the switch has no lights.. Ive tried a zillion switch settings.. turning it on really fast.. checked the soldering (which is fine) and Im still getting no BIOS install screen. It just comes up with the regular xbox screen.

Im using X3 and Xbox 1.0

I searched but cant find an answer that works

Are both leds on the x3 lit?



[Bytecode]

also, check the pins where the switch plugs into the x3. A lot of people have bent their pins by trying to insert the switch cable upside down.



[CyberWoolf]

There was a squished wire.. (on the ejector board) so Im trying to remedy that.. we'll see what happens!

I only see a blue light



[HoBoZ]

There was a squished wire.. (on the ejector board) so Im trying to remedy that.. we'll see what happens!

I only see a blue light

There should be two blue lights on the x3. One for the 3.3v and one for the 5v.

Which one is lit?



[CyberWoolf]

The 3.3 is lit...



[CyberWoolf]

BTW I used the pin header method



[HoBoZ]

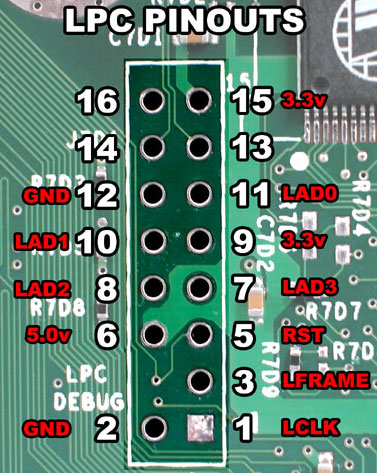

The x3 has to have a 5.0v supply. Check pins 15 and 9 with a mutimeter.



[HoBoZ]

I'm sorry the pins #9 an #15 are for the 3.3v.

Pin #6 is the 5V



[CyberWoolf]

HoBoZ .. I .. I love you.... hehehe

I guess there wasnt enough solder on the joint... I re-soldered it and the bios came up! Woo!

I appreciate everyones help! Im glad I didnt get a.. why dont you search (cause I did!) or youre lame lol



[HoBoZ]

HoBoZ .. I .. I love you.... hehehe

I guess there wasnt enough solder on the joint... I re-soldered it and the bios came up! Woo!

I appreciate everyones help! Im glad I didnt get a.. why dont you search (cause I did!) or youre lame lol

I sure hope you are a Female. Cause I don't switch hit.

PS....
Gald you got it fixed and that I could help.



[CyberWoolf]

lol!! :-D

Now time to flash :-| <bites nails>
