tx pad broke need alt

[Morgiee101]

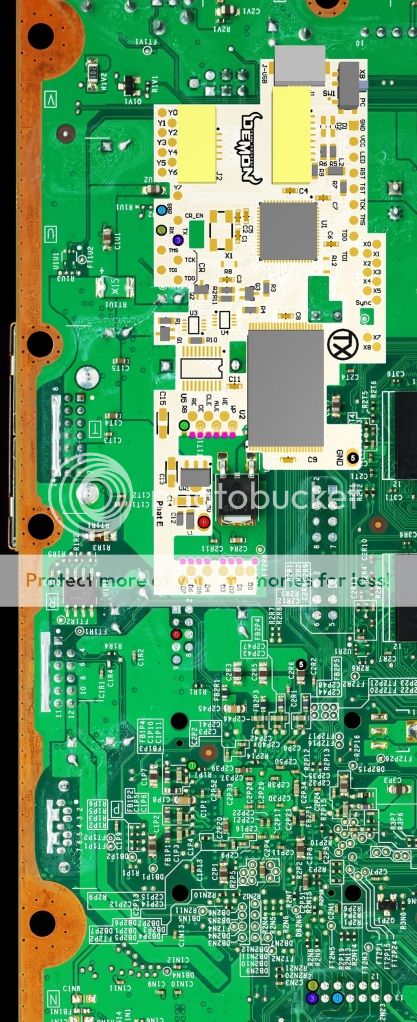

Hi guys my demon was installed perfect and all points were strong, however just in the middle of replacing my coolrunner A for the ck3 lite. The little circuit board that attached to the coolrunner from the demon i had lost so wired all the points to the demon, now the ck3 lite had that installed i de soldered the un-necessary wires, however without touching the tx point it wobbled loose and broke away. is their a known alternative point for the tx pad? its the purple wire or point 3 on the pic below.

Many Thanks

Dan



[Ticallion]

Rather than reply to your PM, the first thing to do would be to post an actual picture of YOUR console and the damage thats done to it.



[Morgiee101]

Sorry here you go, damn the wiring looks worse close up than to the human eye :facepalm:



[n1ght0wl]

you can see the trace for that pad, just scratch off the top surface and solder onto the trace



[Morgiee101]

Can that be done like? ive scraped away and soldered to trace lines before just havn't attempted it on the tx products as it was a white colour, not that make's much differance, if i scrape it away will it expose the shiny trace line?

Thanks



[BL4K3Y]

You can trace the pad back to the pin on the IC and solder to that - this would be easier in my opinion.



[Martin C]

Or you could actually read the card and get a pro installer to fix it for you.



[Morgiee101]

You can trace the pad back to the pin on the IC and solder to that - this would be easier in my opinion.

Thanks will prob do that will let you know if it fixes it

Or you could actually read the card and get a pro installer to fix it for you.

Their is always one that has to moan. Looks like ill have to find that card that i ignored even though it was right in front of my face when i opened the box



[socalbill]

Thanks will prob do that will let you know if it fixes it



Their is always one that has to moan. Looks like ill have to find that card that i ignored even though it was right in front of my face when i opened the box

he is right though, you know....you wrote "my demon was installed perfect and all points were strong"...no offense, but the soldering looks like sh*t



[IronMan72]

....damn the wiring looks worse close up than to the human eye :facepalm:

Need a few more of these.:facepalm::facepalm::facepalm::facepalm: That is some seriously bad soldering. If you are having that much trouble soldering to a huge pad like that then you should find something to practice on, a lot, before you attempt the repair. Better yet find someone willing to fix your mess before you completely destroy it.



[Martin C]

Their is always one that has to moan. Looks like ill have to find that card that i ignored even though it was right in front of my face when i opened the box

Yeah, mean 'ol Admin stating the fecking obvious. You think that card was included as a joke?

I'll make it easier for you. Closed.

If you need someone to install/repair this properly, post in the correct section (request a service or item) where a pro installer will be able to help you.
