I find it difficult to believe you haven't got banned for using this on live. I would suspect it be easily detectable. Did you store all your game saves on their as well?
GENERAL ULTIMATE Slim Trinity Flash Memory Mod
- Thread starter WNYConsoles
- Start date
Just tested with a 2.5" WD My Passport drive and it doesn't spin up using that power point, an 8gb Sandisk flash drive works from it though, and the Passport works on a regular USB port on the front of the Slim, so I'm going to hunt down an alternate 5v source, may tap the USB ports directly.
Edit: Actually wondering if it's the extension cable I modified, didn't test it with the drive before hand so it could be a matter of not getting enough current through the extension. Strange though, as it works on another extension cord just fine.
Edit2: Either it's the extension I'm using, or there's something else fishy going on, tried a different power point that I know will supply more than enough current and it still won't spin, drive electronics get power but drive itself won't react. May be sending this one back with SATA hard drive instead.
Edit3: Turns out to have been the extension, wires were too thin and it couldn't pull enough current. Replaced with a better cable and all fixed. Customer will be quite happy having a 1tb 'internal' drive for content.
Last edited:
Easily detectable? Probably, but honestly I cant see this being at the top of microsofts priority. A little extra space really, its not like theyre pirating games or really manipulating things for that matter.
Last edited:
i have demos arcade game and some profiles. it doesn't seem to be an issue. I even installed Halo Reach so he could play from the drive instead of just the disk. Also borderlands1. no issues. believe what you want but it is fine on my end.
Thats what I think. Sure its a risk but my son doesnt play on live that much. He uses live for Halo reach and Borderlands1.
madhacker83
BANNED
Very cool mod, i will definitely be doing this tomorrow. Thanks for the excellent tutorial and looking forward to reading more from you!
sk8boy204
VIP Member
This is what I ended up with using this method and a very minimalistic flash drive.
https://www.dropbox.com/s/lvyo27wd6uw0tah/IMG_0870.JPG
https://www.dropbox.com/s/5f94cw1tbobva7d/IMG_0871.JPG
https://www.dropbox.com/s/lrai2bzvkw8dsz8/IMG_0867.JPG
https://www.dropbox.com/s/5f94cw1tbobva7d/IMG_0871.JPG
https://www.dropbox.com/s/lrai2bzvkw8dsz8/IMG_0867.JPG
Utmad
VIP Member
Can i just confirm on a slim 250gb on a stock nand you would not see the drive, but would you see it on the rgh side of the demon or do you have to change the keyvault to make it work.
It doesn't show on a stock 250gb but does show on the freeboot side with no change to the nand. Just format from the nxe dash on freeboot and your good.
Edit: the only thing I have noticed on the stock nand is if you go to settings -memory, sometimes it will hang up for a minute.
Edit: the only thing I have noticed on the stock nand is if you go to settings -memory, sometimes it will hang up for a minute.
Last edited:
Utmad
VIP Member
Thanks for all of the info in this thread and all the threads before it on the internal memory mod!
I feel like I found a small twist to this mod.
I purchased a cheap $5 USB to SATA converter from amazon and was able to hook up my 2.5" 500GB Western Digital HDD as internal memory with it.

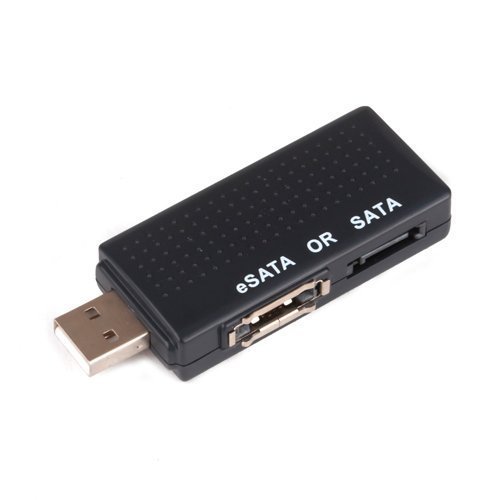

Here is a picture of the USB to SATA converter I used.
I powered both the USB to SATA converter and the 2.5" HDD off this relay circuit:
That can be found from this thread: http://forums.xbox-scene.com/index.php?showtopic=744513.
This way both the HDD and converter are powered off for the stock side of my system. No chance of live detection! Hopefully this helps someone out somewhere.
I feel like I found a small twist to this mod.
I purchased a cheap $5 USB to SATA converter from amazon and was able to hook up my 2.5" 500GB Western Digital HDD as internal memory with it.
Here is a picture of the USB to SATA converter I used.
I powered both the USB to SATA converter and the 2.5" HDD off this relay circuit:
That can be found from this thread: http://forums.xbox-scene.com/index.php?showtopic=744513.
This way both the HDD and converter are powered off for the stock side of my system. No chance of live detection! Hopefully this helps someone out somewhere.
Hi,
I have a 4GO XBOX slim with trinity motherboard!!
it's new and never modded with any hack even never opened!
Can I use my USB 2.0 Enclosure shown in image below with my Seagate (7200 rpm and 320GO) HDD to do this mod?
I can sacrifice the enclosure cable to cut it and solder it to the mother board
I have a 4GO XBOX slim with trinity motherboard!!
it's new and never modded with any hack even never opened!
Can I use my USB 2.0 Enclosure shown in image below with my Seagate (7200 rpm and 320GO) HDD to do this mod?
I can sacrifice the enclosure cable to cut it and solder it to the mother board
How does the console react with multiple devices on a basic hub?
EDIT: Or if someone could give me the information regarding the format of this internal memory that would be appreciated.
EDIT: Or if someone could give me the information regarding the format of this internal memory that would be appreciated.
Last edited:
Yes you can.Hi,
I have a 4GO XBOX slim with trinity motherboard!!
it's new and never modded with any hack even never opened!
Can I use my USB 2.0 Enclosure shown in image below with my Seagate (7200 rpm and 320GO) HDD to do this mod?
Link To Image
I can sacrifice the enclosure cable to cut it and solder it to the mother board
Never tried a hub on it. As far as what format the filesystem is in, it is FatX.
Last edited:
Just went to this link and my work computer went BONKERS just be careful here maybe a mod will remove the linkThanks for all of the info in this thread and all the threads before it on the internal memory mod!
I feel like I found a small twist to this mod.
I purchased a cheap $5 USB to SATA converter from amazon and was able to hook up my 2.5" 500GB Western Digital HDD as internal memory with it.
Here is a picture of the USB to SATA converter I used.
Link To Image
I powered both the USB to SATA converter and the 2.5" HDD off this relay circuit:
Link To Image
That can be found from this thread: http://forums.xbox-scene.com/index.php?showtopic=744513.
This way both the HDD and converter are powered off for the stock side of my system. No chance of live detection! Hopefully this helps someone out somewhere.
Trend Micro OfficeScan Event URL Blocked The URL that you are attempting to access is a potential security risk. Trend Micro OfficeScan has blocked this URL in keeping with network security policy.URL: http://forums.xbox-scene.com/index.php?showtopic=744513Risk Level: Risk level cannot be displayed because active scripting is disabled. Dangerous Highly suspicious Suspicious Untested Details: Verified fraud page or threat source Suspected fraud page or threat source Associated with spam or possibly compromised Rating in progress. Trend Micro Web Reputation is currently set to block pages that have not been checked for safety.
sk8boy204
VIP Member
rdubbs007
VIP Member
I actually just got done doing a version of this mod, cut open the housing on the rear USB port and snipped the top legs. Bent them up and soldered the wires to that. Makes a nice clean install and works very nicely for any USB drive I want to put on the inner memory.
