xbox shows blackscreen after writing ECC

U

usermalik

Full Member
Dec 21, 2011
76
8
this is my first RGH, i was using the JRunner everything was going smoothly read my NAND 16MB Jasper, programmed the coolrunner, created ECC, then wrote ECC, i did not have any error ill i decided to connect to tv to boot xell but all i get is a clack screen. i copied this from the JRunner.
Saturday, February 25, 2012 8:26:32 PM



Trinity or Jasper 16MB
Arm Version: 3
Flash Config: 0x00023010
Reading Nand
Connection Error
Connection Error

Done!

Initializing Nand..
Arm Version: 3
Flash Config: 0x00023010
Reading Nand

Done!

Comparing...
Nands are the same
* found flash image, unpacking....
ECC'ed - will unecc.
UnECC'ed
* found XeLL binary, must be linked to 0x1c000000
* found decrypted CD
* we found the following parts:
SMC: 2.3
CB_A: 6750
CB_B: missing
CD (image): 8453
CD (decrypted): 8453
* this image will be valid *only* for: jasper (CB_6750)
* patching SMC...
Patching Jasper version 2.3 SMC at offset 0x12BA
* zero-pairing...
* constructing new image...
* base size: 70000
* encrypting...
7B67DFF4AE33BEEDB39398E8D6CCDE44
* encrypting...
* No separate recovery Xell available!
* Flash Layout:
0x0..0x1FF (0x200 bytes) Header
0x200..0xFFF (0xE00 bytes) Padding
0x1000..0x3FFF (0x3000 bytes) SMC
0x4000..0x7FFF (0x4000 bytes) Keyvault
0x8000..0x11A3F (0x9A40 bytes) CB_A 6750
0x11A40..0x17A3F (0x6000 bytes) CD 8453
0x17A40..0xBFFFF (0xA85C0 bytes) Padding
0xC0000..0xFFFFF (0x40000 bytes) Xell (backup)
0x100000..0x13FFFF (0x40000 bytes) Xell (main)
* Encoding ECC...

100%
------------- Written into output\image_00000000.ecc
Arm Version: 3
Flash Config: 0x00023010
Writing Nand

Done!


Exited!

U

usermalik

Full Member
Dec 21, 2011
76
8
Did not add cap since i am not using a BB jasper. Plus i don't know y its not showing any green light.

Sent from my GT-I9100 using Tapatalk

U

usermalik

Full Member
Dec 21, 2011
76
8
thee are the the soldered image, i am sure there are no mistakes but y am i still getting blackscreen? y is the coolrunner not even changing from red

J

Justice1231

VIP Member
May 4, 2011
1,005
0
Adelaide, Australia (down south)

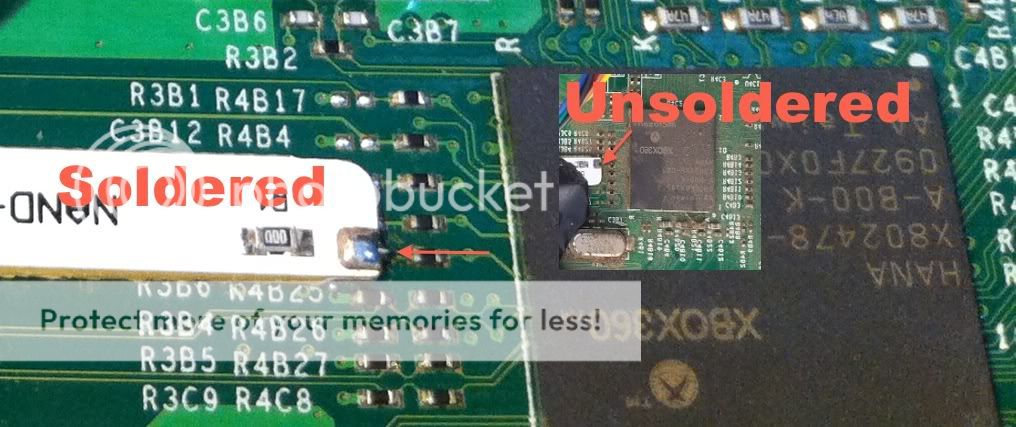

Its got nothing to do with jrunner, the red light will not change colour, thats there to tell you there is power, the green led will flash as it trys to glitch but from what i can see you havent soldered the end of the qsb to the pad R4B24. The standby_clk isnt connected

http://www.team-xecuter.com/forums/showthread.php?t=74689

that link is for the wire install, but it shows clearly where the end of the qsb has to be soldered too (the orange wire) and before trying to solder give your board a clean.

Last edited:
W

WestCoastConsoles

VIP Member
Dec 29, 2010
1,339
0
Portland, OR
If that is truly your J-runner log you didn't flash the coolrunner

Should look similar to this

Comparing...
Nands are the same
Programming Coolrunner
Flashing C:\Users\Trevor\Desktop\J-Runner\common\xsvf\trinity.xsvf to CoolRunner
Input Filesize: 593E
Output Filesize: 2B50

Done!


Exited!


Are you laying that on the dirt or a brick wall? Clean that board up!!!!

Also your STBY_CLK point looks unsoldered.

Last edited:
U

usermalik

Full Member
Dec 21, 2011
76
8
WestCoastConsoles said:
If that is truly your J-runner log you didn't flash the coolrunner

Should look similar to this

Comparing...
Nands are the same
Programming Coolrunner
Flashing C:\Users\Trevor\Desktop\J-Runner\common\xsvf\trinity.xsvf to CoolRunner
Input Filesize: 593E
Output Filesize: 2B50

Done!


Exited!


Are you laying that on the dirt or a brick wall? Clean that board up!!!!
Click to expand...
i flashed the coolrunner before starting wit RGH
